Removing the Paper Remaining Inside the Tray

If you execute a new job while paper remains inside some of the trays, an error will occur. Follow the procedure described in the on-screen animated illustration to remove the paper. If the animated illustration does not play, follow the procedure below to remove the paper.

Removing the Paper Remaining Inside the Internal Multi-Fold Unit

  1. Open the folding unit front cover.

    Unit illustration

  2. Open the N1 guide board.

    Unit illustration

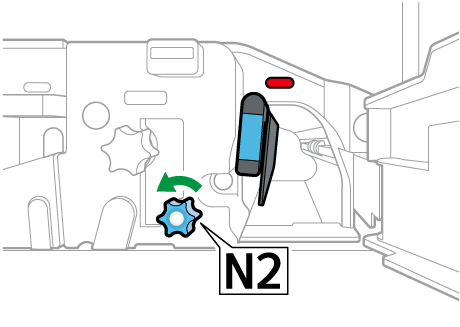

  3. Rotate N2 counterclockwise.

    Unit illustration

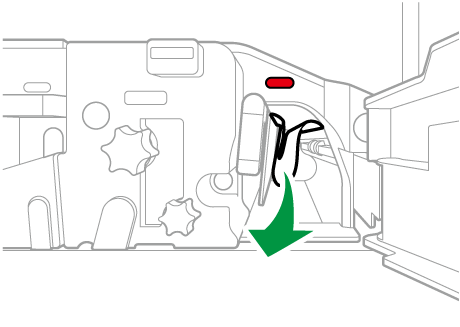

  4. Remove the paper from the right side.

    Unit illustration

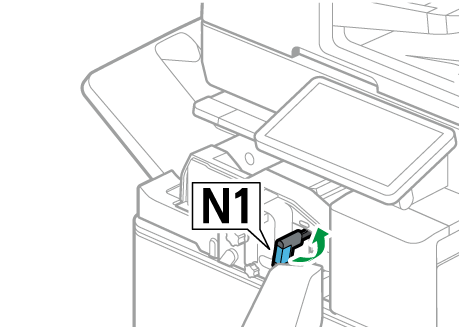

  5. Close the N1 guide board.

    Unit illustration

  6. Close the folding unit front cover.

Section Top

Removing the Paper Remaining Inside the Booklet Finisher SR3350

  1. Open the finisher front cover.
    Finisher illustration

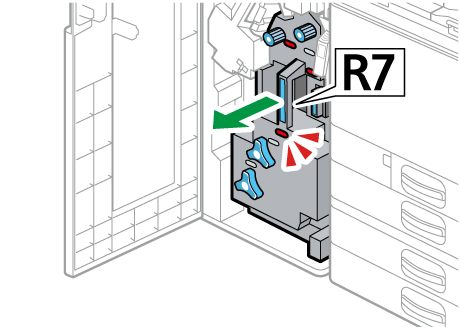

  2. Pull out the unit.
    Finisher illustration

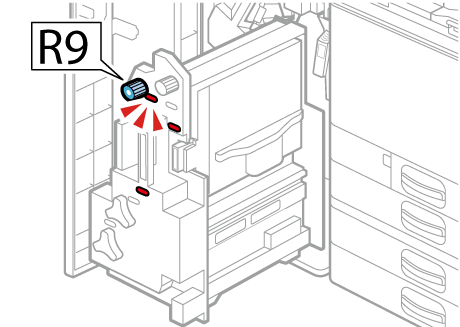

  3. Rotate R9 counterclockwise.
    Finisher illustration

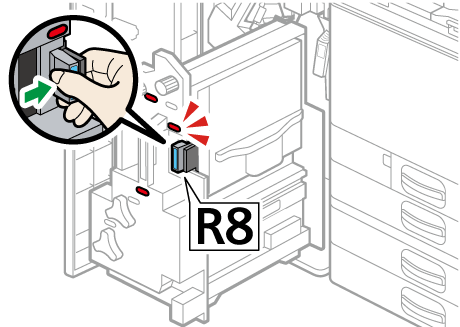

  4. Pinch R8 to open the guide board.
    Finisher illustration

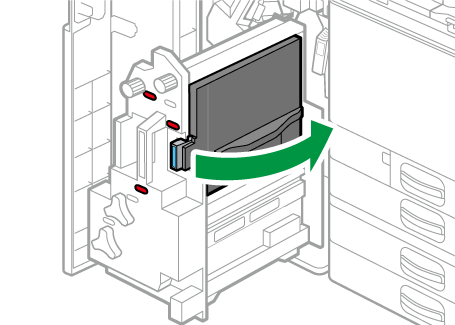

  5. Open the guide board.
    Finisher illustration

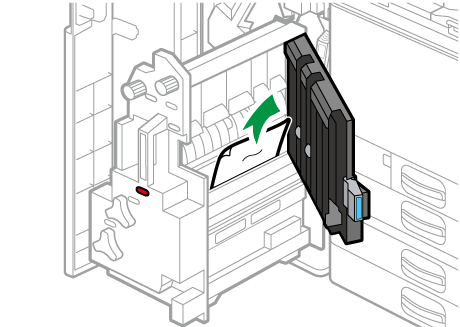

  6. Remove the paper.
    Finisher illustration
