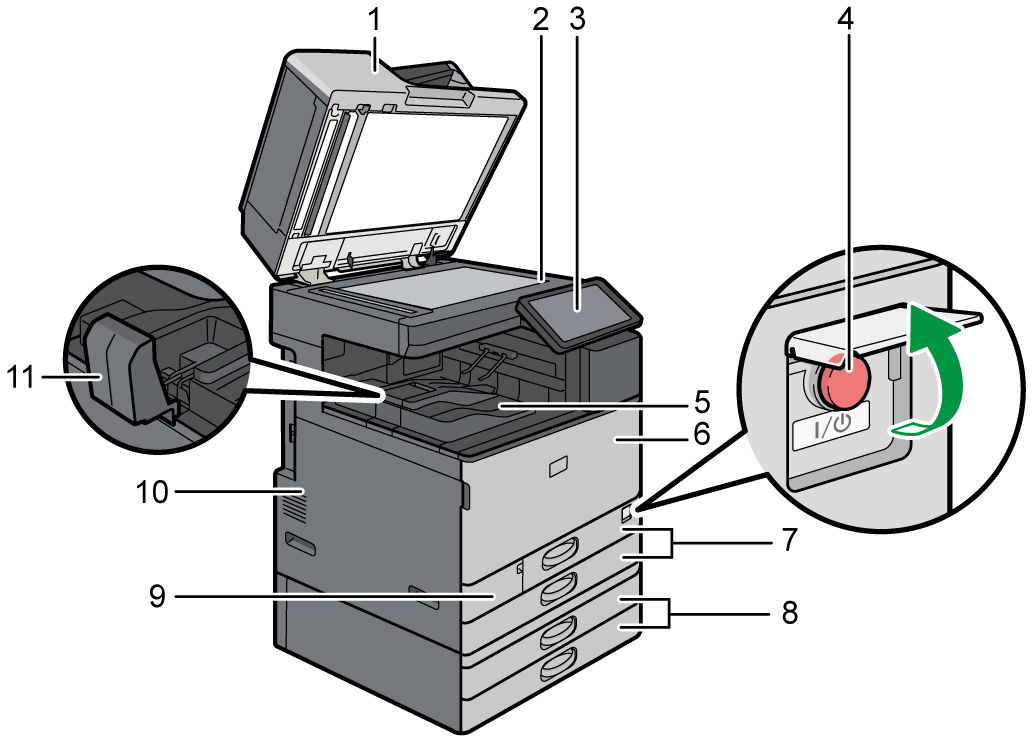

Guide to Names and Functions of Components

1. Exposure glass cover/Auto Document Feeder (ADF)
   Lower the cover over originals placed on the exposure glass.
   If you load a stack of originals in the ADF, the ADF will automatically feed the originals one by one.
   The ARDF is the ADF that can scan both sides of an original one side at a time.
   The one-pass duplex scanning ADF is the ADF that can scan both sides of an original simultaneously.
   Placing an Original in the Auto Document Feeder (ADF)

2. Exposure glass
   Place originals face down here.
   Placing an Original on the Exposure Glass

3. Control panel
   Names and Functions of the Control Panel

4. Main power switch
   To turn the power on and off, open the cover of the main power switch and press the main power switch.
   Turning On and Off the Power

5. Internal tray 1
   Copied/printed paper and fax messages are delivered here. And the paper is output under the paper holder attached inside the internal tray.

   See "Supported Output Trays" about the output tray for the printed paper.

6. Front cover
   Open to replace the toner cartridge.
   Replacing the Toner

7. Paper trays (Trays 1–2)
   Standard paper trays. Load paper here.
   Loading Paper into the Paper Tray

8. Lower paper trays
   Optional paper trays. Load paper here.
   Loading Paper into the Paper Tray

9. Front lower cover
   Open to replace the waste toner bottle.
   Replacing the Waste Toner Bottle

10. Vents
    Prevent overheating.
    After large-volume printing, the ventilation fan may continue to work to lower the temperature inside the machine.

11. Internal tray guide
    Open the guide to prevent the printed paper from falling off.

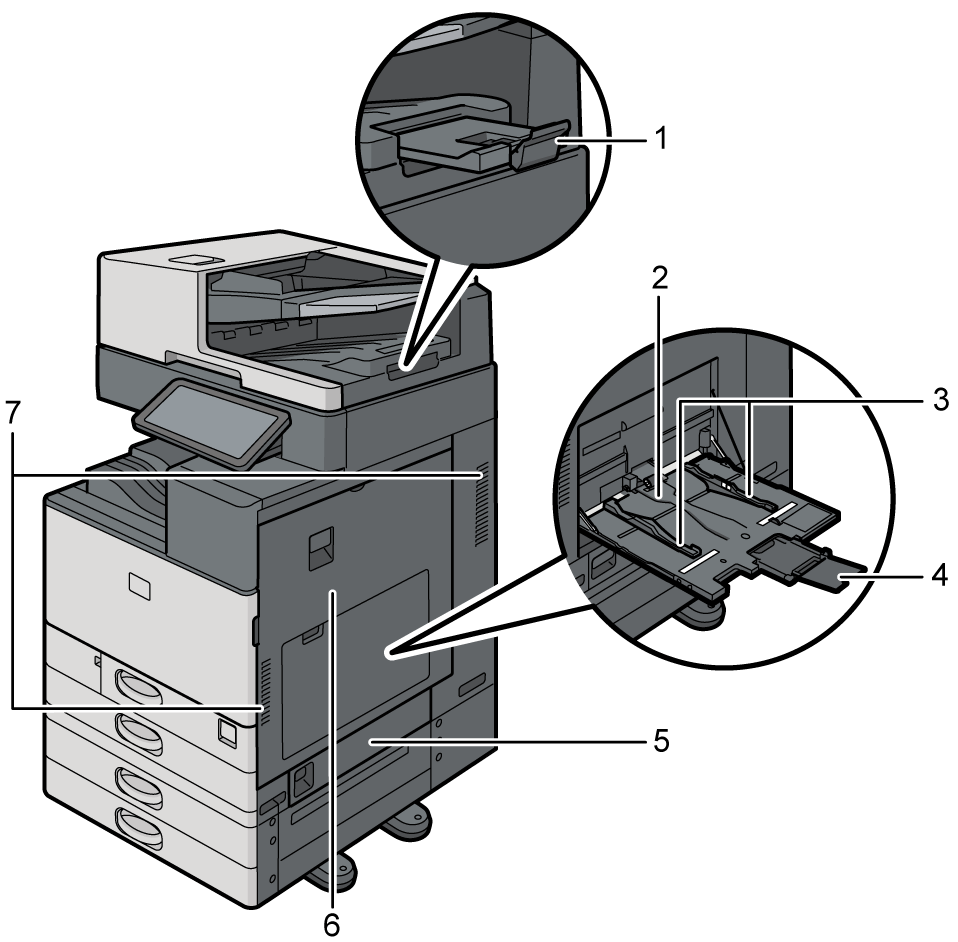

1. ADF tray extender
   Pull this extender out to prevent originals larger than B4 JIS or 8¹/₂ × 14 size from falling.

2. Bypass tray
   Use to copy or print on adhesive labels or paper that cannot be loaded in the paper trays.
   Loading Paper into the Bypass Tray

3. Paper guides
   When loading paper in the bypass tray, align the paper guides flush against the paper.

4. Extender
   Pull this extender out when loading paper larger than A4, 8¹/₂ × 11 in the bypass tray.

5. Lower right cover
   Open this cover to remove jammed paper.

6. Right cover
   Open this cover to remove jammed paper.

7. Vents
   Prevent overheating.
   After large-volume printing, the ventilation fan may continue to work to lower the temperature inside the machine.

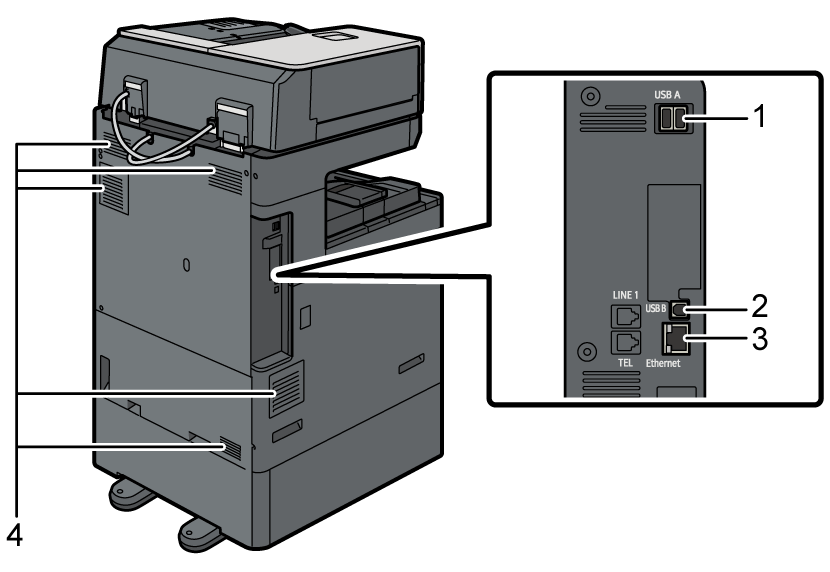

IM C2010/C2010A/C2510/C2510A/C2519J/GS4020c/GS4025c/C3010/C3010A/C3510/C3510A/C3519J/GS4030c/C4510/C4510A/C5510/C5510A/GS4045c/C6010/GS4160c

1. USB2.0 Interface Type A
   This interface is not used with this machine.

2. USB2.0 Interface Type B
   Use the port to connect the machine and the computer with the USB cable.

3. Ethernet interface
   Used the port to connect the machine to the network or to use the remote management service (@Remote) over the Internet.

4. Vents
   Prevent overheating.
   After large-volume printing, the ventilation fan may continue to work to lower the temperature inside the machine.

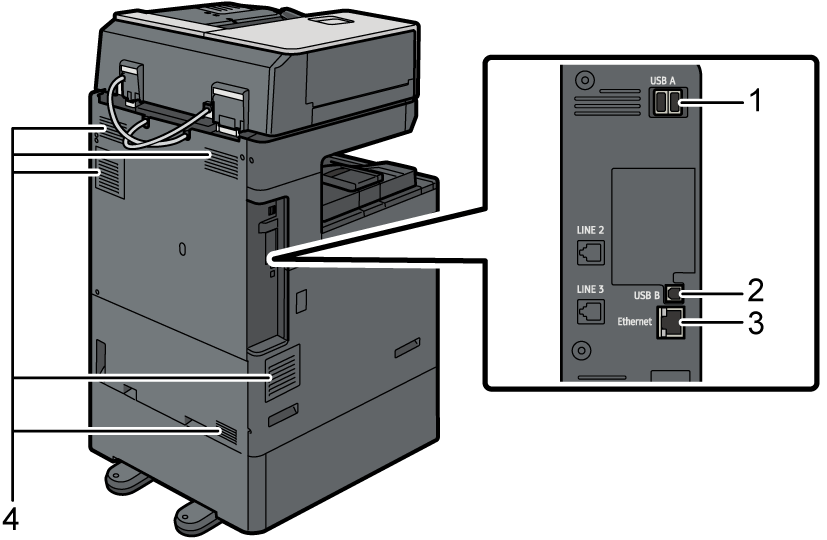

IM C7010

1. USB2.0 Interface Type A
   This interface is not used with this machine.

2. USB Interface Type B
   Use the port to connect the machine and the computer with the USB cable.

• • (mainly Europe and Asia)/(mainly North America)
    USB3.2 Gen1 Interface Type B is available. (Except for China.)

  • (China)
    USB2.0 Interface Type B is available.

3. Ethernet interface
   Used the port to connect the machine to the network or to use the remote management service (@Remote) over the Internet.

4. Vents
   Prevent overheating.
   After large-volume printing, the ventilation fan may continue to work to lower the temperature inside the machine.
