Names and Functions of the Control Panel

The touch panel (Smart Operation Panel) that displays the operation screen of the machine is referred to as the "Control Panel".

  • On both sides of the control panel, interfaces for connecting external devices and slots to insert an USB flash memory device are provided.

  • Even when the screen is turned off, the LED indicators on the frame of the control panel show the status of the machine.

Touch Panel/Interface

  1. Media slots

    Insert an USB flash memory device. You can store the scanned data or print the file stored on the media.

    • Use the media formatted in FAT16 or FAT32.

    • Certain types of USB flash memory devices cannot be used in the machine.

    • USB extension cables, hubs, card readers, and USB flash memories with encryption functions cannot be used.

    • If the power of the machine is turned off or the media is removed from the machine while the machine is reading the data in the media, check the data in the media.

    • Before removing the media from the slot, press the icon displayed on the screen () to cancel the connection.

      Control panel illustration numbered callout illustration

    • Do not change the write protection switch of the USB flash memory device while the USB flash memory device is inserted.

  2. Touch Panel
    Displays the Home screen, operation screen of applications, and messages. Operate with the fingertips.
    How to Use the Home Screen
    Intuitive Screen Operation Using Fingertips

  3. Touch mark
    Used to connect the machine and a smart device with the RICOH Smart Device Connector.

    Using the Machine Functions from a Mobile Device

    Logging In Using a Mobile Device

Note

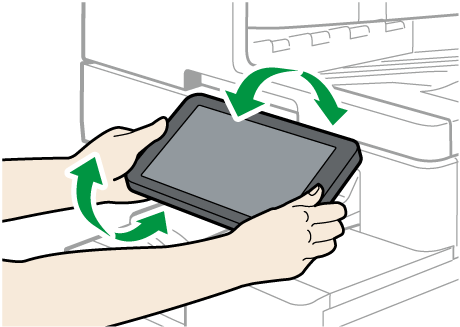

  • You can adjust the angle of the control panel to improve visibility. When adjusting the angle of the control panel, be careful not to pinch your fingers.

    Main unit illustration

Section Top

LED Indicators

Control panel illustration numbered callout illustration

  1. Fax indicator
    Indicates the status of the fax function.

    • Flashing: transmitting and receiving data

    • Lit: receiving data (Substitute RX File/Memory Lock Reception/Personal Box)

  2. Data In indicator
    Flashes when the machine is receiving data sent from the printer driver or LAN-Fax driver.

  3. Status indicator
    Indicates the status of the system. Stays lit when an error occurs or toner runs out.
    Checking the Indicators, Icons, and Messages on the Control Panel

  4. Main power indicator
    The main power indicator lights up when you turn on the main power switch. In Sleep mode, it flickers slowly.
