Connecting a USB Cable

You can use two types of USB interfaces on the machine: the USB Interface Type A and USB Interface Type B.

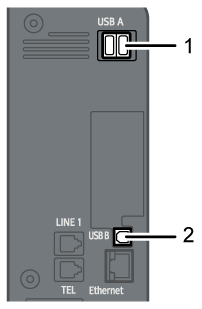

Connecting to the interfaces illustration

  1. USB Interface Type A

  2. USB Interface Type B

Important

  • If you connect equipment that is not explained in this manual to the machine, it may cause problems.

USB Interface Type A

This interface is not used for connecting the computer with the USB cable.

USB Interface Type B

Use it to connect to the computer.

Note

  • Region A icon (mainly Europe)

    • To connect to the computer with the USB interface, set [Settings] [System Settings] [Network/Interface] [USB Port] to [Active].
      Network/Interface

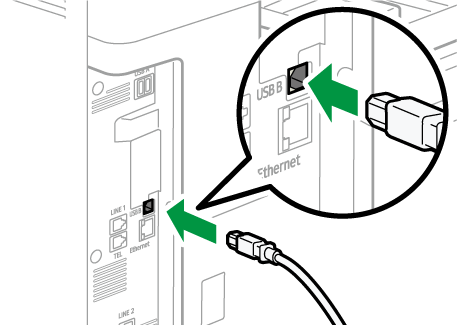

illustration of connecting the USB interfece cable

Note

  • Use a cable of 5 m (197 inches) or less for USB interface (B connector).
