Confirming Log Files
You can download the logs of the machine as CSV files using Web Image Monitor. It depends on the log type (Job Log, Access Log, or Eco-friendly Logs) how to read the files.
For the log type, see the following section:
Collecting Logs
Output Format of Files
Item
Description
Character Set
UTF-8 JIS
Output Format
CSV (Comma-Separated Values) format
File Name of Job Log+Access Log
"Machine Name_log.csv"
File Name of Job Log
"Machine Name_joblog.csv"
File Name of Access Log
"Machine Name_accesslog.csv"
File Name of Eco-friendly Log
"Machine Name_ecolog.csv"
Order of Logs
Logs are output in ascending order of Log ID ("Log ID").
File Configuration
Title of each data is output on the first line of the file (header line).
Difference in Log Data Format

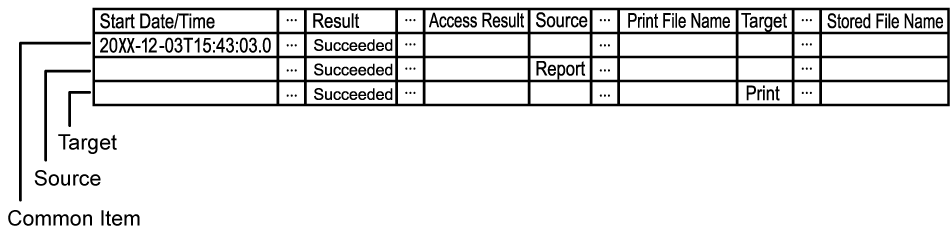

Job Log
Common items, sources, and targets that have common log ID are output in three or more lines in configuration as shown below.
Name
Description
Common Item
Common items of job log and access log are output in one line.
Source
Outputs the "Result", "Status", and job-log input information of common items. When there are multiple sources, multiple lines are output.
Target
Outputs the "Result", "Status", and job-log output information of common items. When there are multiple targets, multiple lines are output.
Access Log
Common items and access log are output in one line.Eco-friendly Logs
Eco-friendly Logs information is output in one line.
Titles shown below are the text displayed on the header line of the CSV file.
Start Date/Time
Stores the Start Date/Time of the operation and event.
End Date/Time
Stores the End Date/Time of the operation and event.
Log Type
Stores the log items. For the log items, see the following section:
For details of the log items, see the following sections:
Result
Stores the results of the operation or event.
"Stored File Deletion" of the access log is stored as log only when the event succeeds.
Value
Description
Failed
Operation or event failed
Succeeded
Operation or event completed
<blank>
Operation or event processing
Operation Method
Stores the operations.
Value
Description
Control Panel
Control panel
Driver
Driver
Utility
Utility
Web
Web
Status
Stores the status of operations or events.
Value
Description
Authentication Method Mismatch
Authentication mode mismatch
Authentication Settings Mismatch
Specification in the Address Book mismatch
Common Key Not Exist
Common key not exist
Communication Failure
Communication failed
Communication Result Unknown
Communication results unknown
Completed
Operation Completed
Connection Error
Connection error or network error
Connection Failed with Remote Machine
Connection with remote machine failed
Decoding Failed
Decoding failed
Encryption Failed
Encryption failed
Error
Error
Exe-fail
Execution failed
Exe-success
Execution succeeded
Failed
Operation failed
Failure in some or all parts
Failure in some or all parts
File Limit Exceeded
Capture error because of the file limit is exceeded
Functional Problem
Capture error because of device trouble
Importing/Exporting by Other User
Importing/Exporting by other users progressing
Invalid Password
Path code error
Lost File
Capture error because of file lost
Maximum Limit of Registered Number
Maximum limit of registered number of central management
Memory Storage Device Error
Memory storage device error
Memory Storage Device Full
Full capacity of the memory storage device
Not Available
Login during the time period when login is not allowed
Other Failures
Other failures
Password Mismatch
Password mismatch
Power Failure
Capture error because of power failure
Processing
Processing
Read
Read
Specified Client Error
Client unspecified error
Specified File: Access Error
Access error to the specified file
Specified File: Format Error
Format error of the specified file
Specified File: Incompatible
Incompatible with the specified file
Specified File: No Privileges
No privileges to the specified file
Specified File: Not Exist
No specified file exists
Specified Server Error
Server unspecified error
Succeeded
Operation succeeded
Suspended
Suspended
Transfer Cancelled
Error by canceling capture transfer
User Cancel
Canceled by the user
User Locked Out
The user locked out
User Not Programmed
User not programmed
Write Error to Remote Machine
Writing error to remote machine
Write-fail
Writing failed
Write-success
Writing succeeded
Cancelled: Details
Stores the status of the failed operations or events.
Value
Description
Authentication Failed (Access Restricted)
Authentication of the machine failed.
Authentication Failed with Destination
Authentication of the destination failed.
Cancelled by User
Canceled by users
Connection Failed with Destination
Specified server or folder is not found.
Data Transfer Interrupted
Stored in the following cases:
A driver for the different model is used.
Network failure occurs.
The job is canceled on the LAN-FAX driver.
Communication failure of the Fax function occurs.
Exceed Max. Stored File (File Storage)
Exceeds the maximum number of files storable in the Document Server
Exceed Max. Stored Page (File Storage)
Exceeds the maximum number of pages storable in the Document Server
Exceed Max. Stored Page (Image Area)
Exceeds the maximum number of pages that can be captured
Exceeded Max. Email Size
Exceeds the maximum e-mail size
Exceeded Max. File Size
Exceeds the maximum size of a file
Exceeded Print Volume Use Limitation
Exceeded Print Volume Use Limitation: Communication Error
Exceeded Print Volume Use Limitation: No Remaining Print Volume
External Charge Unit Disconnected
External charge unit disconnected during operation
Folder is Locked
The folder is locked.
Input Failure
Input operation failed
Insufficient No. of Original for Overlay
Insufficient number of pages of the original for overlay
Internal Storage Full (File Storage Memory)
Exceeds the maximum capacity of the internal storage storable in the Document Server
Internal Storage Full (Image Area)
Exceeds the capacity of the internal storage that can be captured
Invalid Device Certificate
The device has no Device Certificate, Term of Validity is expired, or e-mail address of the administrator does not match the e-mail address of the Certificate.
Invalid Device/Destination's Certificate
Both Destination's Certificate and Device Certificate are not authorized.
Invalid Expiration Date: Destination's Certificate
Validity Period of the destination is expired.
Line Busy
The destination is busy.
Memory Full
The memory for processing data is full.
No Privilege
No privilege to use files or functions
No Response
No response on the destination
Not Entered Document Password
Password for the file is not entered.
Not Facsimile Destination
The destination is not a facsimile.
Other Error
Errors detected before executing the job or other errors
Output Failure
Output operation failed
Over Job Limit
Exceeds the number of jobs that can be received
Password for Folder Specified to Store is Incorrect
Password for the specified folder to store data is incorrect.
Power Failure
Power failure
Print Cancelled (Error)
The system cancels the job.
Print Data Error
PDL or port that is not equipped with the machine is used.
Reception Error
Fax reception failed
Scanner Error
Scanning error on ADF
Specified Folder to Store does not Exist
A specified folder to store data does not exist.
Specifying Destination Error
An unauthorized destination is specified or the specified digit for the destination exceeds 41.
Specifying Line Error
Specified line is incorrect.
Timeout
Timeout
Transmission Failed (Data Deleted)
The transmitted file or the undelivered file whose storage period is expired is deleted.
Transmission Failed with Memory Full
Capacity of the destination memory is full.
Unavailable Size to Store
The specified paper size (including custom size) is unavailable to store.
User Entry ID
Stores the Entry ID.
This is a unique ID for the user requested the job log and access log of operations. It is output as a hexadecimal number.
Value
Description
0x00000000
System operation or unauthorized user's operation
0x00000001 to 0xfffffeff
User and user code
0xffffff80
System operation
0xffffff81
System operation or unauthorized user's operation
0xffffff86
Supervisor
0xffffff87
Administrator 1
0xffffff88
Administrator 2
0xffffff89
Administrator 3
0xffffff8a
Administrator 4
0xffffff8b
For counting
User Code/User Name
For the user's operation, the user code or login user name is stored.
For an administrator, the administrator's login user name is stored.
Log ID
The log stores an ID. It is a unique ID for the log and is output as a hexadecimal number.
Host IP Address
The IP address of the host that requested an operation is stored.
Log Level
Stores events that occur, results that are detected, and operations that are performed.
Value
Description
Emerg
Access violation, authentication DoS violation
Error
Detection of unauthorized copying of documents, encrypted communication error, authentication error, authentication lock out, import/export error of preferences, other notification errors
Info
Changes made to the settings (other than those classified as "Warn")
Warn
Detection of firmware that is different from the one detected at the previous startup, changes to the IPsec related settings made via telnet
Titles shown below are the text displayed on the header line of the CSV file.
Source
Stores the input information of the job log.
Value
Description
Printer
Print indication on the printer driver
Received File
Fax reception
Report
Report printing
Scan File
Scanning originals
Stored File
Storing files
Start Date/Time
When the input information is "Scan File", "Printer" or "Received File", Start Date/Time of the input information is stored.
End Date/Time
When the input information is "Scan File", "Printer" or "Received File", End Date/Time of the input information is stored.
Stored File ID
When the input information is "Stored File", ID is stored.
It is a unique ID for the file and is output as a decimal number.
Stored File Name
When the input information is "Stored File", File Name is stored.
Folder Number
Memorized Folder Number is stored.
Folder Name
Memorized Folder Name is stored.
Print File Name
When the input information is "Printer", File Name of the print file is stored.
Blank Paper(SRCMEM)
The page number of the page skipped for printing by the blank page detection function is stored.
PDL ID
The PDL ID indicating emulation is stored.
User ID
The user ID for identifying the user in the job history is stored.
Created Pages
The number of the created pages is stored as a decimal number.
Data Size
The size of the print data is stored as a decimal number.
Blank Paper(PDL)
The page number of the page skipped for printing by the blank page detection function is stored.
Titles shown below are the text displayed on the header line of the CSV file.
Target
Stores the output information of the job log.
Value
Description
Send
Send
Store
Store
Start Date/Time
Sends the Start Date/Time to print, store, and send files.
End Date/Time
Sends the End Date/Time to print, store, and send files.
Destination Name
When the output information is "Send", Name of the destination is stored.
Destination Address
When the output information is "Send", IP Address, Path, or Email Address of the destination are stored.
Stored File ID
When the output information is "Store", ID is added.
It is a unique ID for the file and is output as a decimal number.
For the Fax function, "Stored File ID" is not stored in log.
Stored File Name
When the output information is "Store", File Name of the stored file is stored.
For the Fax function, "Stored File Name" is not stored in log.
Folder Number
Memorized Folder Number is stored.
Folder Name
Memorized Folder Name is stored.
Exit Pages
The number of the printed quantity is stored for each paper type as a decimal number.
Exit Papers
The number of the printed by the Printer function is stored as a decimal number.
Paper Size
The paper size of the first printed page is stored.
Paper Type
The paper type of the first printed page is stored.
Staple
The staple settings for printing are stored.
Punch
The punch settings for printing are stored.
Titles shown below are the text displayed on the header line of the CSV file.
Access Log Type
Stores the type of the access log.
Value
Description
Address Book
Address Book
Authentication
User authentication
Device Settings
Changes the settings of the Settings
Firmware
Confirming the firmware validity
Network Attack Detection/Encrypted Communication
Network Attack or Encrypted Communication
Stored File
File
System
System
Authentication Server Name
Stores the sever name that tried the last authentication.
No. of Authentication Server Switches
Stores how many times the server was switched when the authentication server was down.
You can identify whether to detect the server down.
The number of switching the server is 0 to 4 times.
When 0, the server is not down.
Logout Mode
Stores the logout mode.
Value
Description
by Auto Logout Timer
Auto logout of time
by User's Operation
Logout operation by a user
Login Method
Stores the route to receive Authentication Request
Value
Description
Control Panel
Operation on the Control Panel
Others
Requests from others
via Network
Operation via the Network
Login User Type
Stores the type of login user.
Value
Description
Customer Engineer (Service Mode)
Customer engineer
Custom privilege templateX / X / X・・・
Custom-privileges administrator ("X" is replaced by a template number.)
File Administrator
File Administrator
Guest
Guest
Machine Administrator
Machine Administrator
Network Administrator
Network Administrator
Supervisor
Supervisor
User
Authentication user
User Administrator
User Administrator
Others
Login by users other than described above.
Target User Entry ID
Stores the Entry ID to the target
It is a unique ID for the target user of the operation described below and is output as a hexadecimal number.
Lockout operation
Change password
Target User Code/User Name
Stores user code or user name of the target.
When the target is an administrator, the administrator's login user name is stored.
Address Book Registration No.
Stores the registration number of the user who operates the machine.
Address Book Operation Mode
Stores how the Address Book is changed.
Address Book Change Item
Stores which item in the Address Book is changed.
Address Book Change Request IP Address
Stores the IP address information (IPV4/IPV6) of the user who operates the Address Book.
Lockout/Release
Stores the lockout status.
Value
Description
Lockout
The password is locked.
Release
The lock is released.
Lockout/Release Method
Stores how to release the lockout.
Value
Description
Auto
Release lockout using the release timer
Manual
Release lockout manually.
Lockout Release Target Administrator
Stores the target administrator when releasing lockout.
Counter to Clear
Stores which counter is cleared for each user.
Export Target
Stores the setting information of the target to export the device information.
Value
Description
Browser Features
Browser settings
Copier Features
Copy settings
Fax Features
Fax settings
Fax SP
Fax SP
Printer Features
Printer settings
Printer SP
Printer SP
Program (Copier)
Program (Copy)
Program (Document Server)
Program (Document Server)
Program (Scanner)
Program (Scanner)
Scanner Features
Scanner settings
Scanner SP
Scanner SP
System Settings
System settings
System/Copier SP
System/Copier SP
Web Image Monitor Setting
Web Image Monitor Settings
Web Service Settings
Web service settings
Target File Name
Stores the File Name of the target to import and export the device information.
Stored File ID
Stores the ID for the created or deleted file.
It is a unique ID for the create- or delete-request file and is output as a decimal number.
Stored File Name
Stores the File Name of the created or deleted file.
Delete File Type
Stores the type of the delete file.
Value
Description
Auto Delete
Auto Delete
Delete Editing File
Deletion during editing
Delete Normal File
Normal file delete
Others
Delete because of other reasons
Folder Number
Stores Folder Number.
Folder Name
Stores Folder Name.
Creating/Deleting Folders
Stores how to operate the folder.
Value
Description
Delete Folder
Delete a folder
New Folder
Creates a new folder.
File Location
Stores the target area for deleting all files.
Collect Job Logs
Stores whether to change the settings of Collect Job Logs.
Value
Description
Active
Changes to Active.
Inactive
Changes to Inactive.
Not Changed
Not changed
Collect Access Logs
Stores whether to change the settings of Collect Access Logs.
Value
Description
Active
Changes to Active.
Inactive
Changes to Inactive.
Not Changed
Not changed
Collect Eco-friendly Logs
Stores whether to change the settings of Collect Eco-friendly Logs.
Value
Description
Active
Changes to Active.
Inactive
Changes to Inactive.
Not Changed
Not changed
Transfer Logs
Stores whether to change the settings of transfer log function.
Value
Description
Active
Changes to Active.
Inactive
Changes to Inactive.
Not Changed
Not changed
Log Type
Stores the log type for the target to change the collect log status.
Value
Description
Access Log
Access Log
Collect Eco-friendly Logs
Eco-friendly Logs
Job Log
Job Log
Log Collect Level
Stores the log level settings.
Value
Description
Level 1
Level 1
Level 2
Level 2
User Settings
User settings
Encryption/Cleartext
Stores the status, encryption communication status or cleartext communication status.
Value
Description
Cleartext Communication
Cleartext communication
Encryption Communication
Encryption communication
Machine Port No.
Stores the Port Number of the machine.
Protocol
Stores the target protocol.
When it is not specified, "Unknown" is stored.
IP Address
Stores the target IP address.
Port No.
Stores the Port Number of the target.
It is output as a decimal number.
MAC Address
Stores the target MAC Address.
Primary Communication Protocol
Stores the primary communication protocol name.
Secondary Communication Protocol
Stores the secondary communication protocol name.
Encryption Protocol
Stores the Encryption protocol name.
Communication Direction
Stores the communication direction.
Value
Description
Communication Start Request Receiver (In)
Receiver of the communication start request (IN)
Communication Start Request Sender (Out)
Sender of the communication start request (OUT)
Communication Start Log ID
Stores the log ID when starting communication.
It is a unique ID for the log of starting communication and is output as a hexadecimal number.
Communication Start/End
Stores the identifier to identify the communication start and end.
Network Attack Status
Stores the status of attack detection.
Value
Description
Max. Host Capacity Reached
The maximum host capacity is reached and the management is disabled.
Recovered from Max. Host Capacity
Recovers from the host management disabled.
Recovered from Violation
Detects the network attack recovery.
Violation Detected
Detects the network attack.
Network Attack Type
Stores the type of attack.
Value
Description
Device Access Violation
Authentication DoS violation
Password Entry Violation
Password violation
Request Falsification Violation
Request falsification
Network Attack Type Details
Stores the details about the type of attacks.
Value
Description
Authentication Error
Authentication error
Encryption Error
Encryption error
Network Attack Route
Stores the attack route.
Value
Description
Attack from Control Panel
Attacked from the Control Panel.
Attack from Other than Control Panel
Attacked from other than the Control Panel.
Login User Name used for Network Attack
Stores the login user name used for network attack.
Add/Update/Delete Firmware
Stores the firmware change system.
Value
Description
Added with SD Card
Added with the SD card.
Deleted with SD Card
Deleted with the SD card.
Moved to Another SD Card
Moved to another SD card.
Updated for Other Reasons
Update for other reasons.
Updated via Remote
Updated via remote.
Updated with SD Card
Update with the SD card.
Module Name
Stores the Module Name of the firmware.
Parts Number
Stores the part number of the firmware.
Version
Stores the firmware version.
Machine Data Encryption Key Operation
Stores the encryption key operation mode.
Value
Description
Back Up Machine Data Encryption Key
The Encryption Key is backed up.
Clear NVRAM
NVRAM is cleared.
Finish Updating Machine Data Encryption Key
Updating the Encryption Key ends.
Restore Machine Data Encryption Key
The Encryption Key is restored.
Start Updating Machine Data Encryption Key
Updating the Encryption Key starts.
Machine Data Encryption Key Type
Stores the type of the encryption key.
Value
Description
Device Certificate
Device certificate
Encryption Key for Internal Storage
Internal Storage Encryption Key
Encryption Key for NVRAM
NVRAM Encryption Key
Validity Error File Name
Stores the File Name when the validity verification error is detected.
Configuration Category
Stores the category whose settings are changed.
Value
Description
Access Control
Access control
Allow Log Collection
Setting for whether to allow log collection
Auth Available Mode
Setting for the time period to allow users to log in to and use the machine
Auto Logout Timer
Auto logout time settings
Compulsory Security Stamp
Compulsory security stamp
Device Certificate
Device certificate
Extended Security
Extended Security
Firmware Update Start
Update Firmware
Flex Admin Template 1
Custom template assignment
IPsec
IPsec
Network Security
Network security settings
Prohibit printing stored files from Web Image Monitor
Prohibits the output of the stored files with Web Image Monitor.
S/MIME
S/MIME
SSL/TLS
SSL/TLS settings
User Lockout Policy
User lockout
Configuration Name / Configuration Value
Stores the attributes of the categories.
Stores the value of attributes.
Value
Description
Access Control
Active, Active (Firewall), or Inactive of access control
Accessibility
Active or Inactive of the custom administrator privilege, Accessibility
Address Book
Active or Inactive of the custom administrator privilege, Address Book
Allow Log Collection
Allow or Prohibit log collection
Auth Available End Time
End of the time period to allow users to log in to and use the machine
Auth Available Mode
On or Off of the time period to allow users to log in to and use the machine
Auth Available Start Time
Start of the time period to allow users to log in to and use the machine
Authentication/Charge
Active or Inactive of the custom administrator privilege, Authentication/Charge
Auto Firmware Update
Active or Inactive of the custom administrator privilege, Auto Firmware Update
Auto Logout Timer
On or Off of Auto Logout Time settings
Auto Logout Timer (seconds)
Time to activate Auto Logout
Browser Settings
Active or Inactive of the custom administrator privilege, Browser Settings
Certificate No.
Certificate number of the operation target
Change Firmware Structure
Change of [Change Firmware Structure]
"Prohibit" or "Do not Prohibit" is stored.
Compulsory Security Stamp
On or Off of Compulsory Security Stamp:
Concealment Of Internal Communication port
Active or Inactive of concealment of the internal communication port
Concealment Of Operation Unit Return Port
Active or Inactive of concealment of the operation unit return port
Copier/Document Server Settings
Active or Inactive of the custom administrator privilege, Copier/Document Server Settings
Counter
Active or Inactive of the custom administrator privilege, Counter
Data Management
Active or Inactive of the custom administrator privilege, Data Management
Date/Time/Timer
Active or Inactive of the custom administrator privilege, Date/Time/Timer
Digital Signature PDF: Certificate No.
Certificate number used with the application
When you do not use Certificate, "Do not Use" is stored.
Digital Signature PDF/A: Certificate No.
Certificate number used with the application
When you do not use Certificate, "Do not Use" is stored.
Display/Input
Active or Inactive of the custom administrator privilege, Display/Input
Document Server (Utility): Stored File Transferring
Signature for transferring stored files by the Document Server (Utility)
Encryption Key Auto Exchange: Setting1-4, Default Setting Authentication Method Mismatch
Authentication Method of Auto Key Replacement System
Stores "PSK" or "Certificate".
Encryption Key Auto Exchange: Setting1-4, Default Setting: Security Level
Security Level
When you select "Authentication Only", "Authentication Only" is stored. When you select "Authentication and Low Level Encryption", "Authentication and Low Level Encryption" is stored. When you select "Authentication and High Level Encryption", "Authentication and High Level Encryption" is stored. When you select "User Settings", "User Settings" is stored.
Encryption Key Auto Exchange: Setting1-4: Remote Address
Remote Address
Fax Settings
Active or Inactive of the custom administrator privilege, Fax Settings
Fax: Email Sending
Signature for e-mail sending by the Fax function
Fax: Notification Email Sending
Signature for message mail sending by the Fax function
Fax: Transferring
Signature for transferring by the Fax function
File Management
Active or Inactive of the custom administrator privilege, File Management
File Operation
Active or Inactive of the custom administrator privilege, File Operation
Firmware Update
Active or Inactive of the custom administrator privilege, Firmware Update
Firmware Update Start
Start of firmware update
Function Restriction
Active or Inactive of the custom administrator privilege, Function Restriction
HSTS max-age Value
Value specified for the max-age attribute when HSTS is activated
HSTS Setting
Active or Inactive of HSTS
IEEE 802.1X (WPA/WPA2): Certificate No.
Certificate number used with the application
When you do not use Certificate, "Do not Use" is stored.
Intelligent Voice Control
Active or Inactive of the custom administrator privilege, Intelligent Voice Control
IPsec
Active or Inactive of IPsec
IPsec: Certificate No.
Certificate number used with the application
When you do not use Certificate, "Do not Use" is stored.
IPv4 Receive Filter n Local Port Number
Port number of the IPv4 receive filter
IPv4 Receive Filter n Protocol
Protocol of the IPv4 receive filter
IPv4 Receive Filter n Remote IP Address
Remote IP address of the IPv4 receive filter
IPv4 Send Filter n Protocol
Protocol of the IPv4 send filter
IPv4 Send Filter n Remote IP Address
Remote IP address of the IPv4 send filter
IPv4 Send Filter n Remote Port Number
Port number of the IPv4 send filter
IPv6 Receive Filter n Local Port Number
Port number of the IPv6 receive filter
IPv6 Receive Filter n Protocol
Protocol of the IPv6 receive filter
IPv6 Receive Filter n Remote IP Address
Remote IP address of the IPv6 receive filter
IPv6 Send Filter n Protocol
Protocol of the IPv6 send filter
IPv6 Send Filter n Remote IP Address
IP address of the IPv6 send filter
IPv6 Send Filter n Remote Port Number
Port number of the IPv6 send filter
Job Operation
Active or Inactive of the custom administrator privilege, Job Operation
Lock Out User for
Remaining time before release of the 1st lockout
Lock Out User for2
Remaining time before release of the 2nd lockout
Lock Out User for3
Remaining time before release of the 3rd lockout
Lock Out User for4
Remaining time before release of the 4th lockout
Lockout
Active or Inactive of the 1st lockout
Lockout2
Active or Inactive of the 2nd lockout
Lockout3
Active or Inactive of the 3rd lockout
Lockout4
Active or Inactive of the 4th lockout
Lockout Release Timer
Active or Inactive of the 1st lockout release timer
Lockout Release Timer2
Active or Inactive of the 2nd lockout release timer
Lockout Release Timer3
Active or Inactive of the 3rd lockout release timer
Lockout Release Timer4
Active or Inactive of the 4th lockout release timer
Number of Attempts before Lockout
Allowable number of attempts to enter login password before the 1st lockout (time(s))
Number of Attempts before Lockout2
Allowable number of attempts to enter login password before the 2nd lockout (time(s))
Number of Attempts before Lockout3
Allowable number of attempts to enter login password before the 3rd lockout (time(s))
Number of Attempts before Lockout4
Allowable number of attempts to enter login password before the 4th lockout (time(s))
Machine
Active or Inactive of the custom administrator privilege, Machine
Machine/Control Panel Information
Active or Inactive of the custom administrator privilege, Machine/Control Panel Information
Maintenance
Active or Inactive of the custom administrator privilege, Maintenance
Network/Interface
Active or Inactive of the custom administrator privilege, Network/Interface
Operation Mode
Operation mode
Output Tray
Active or Inactive of the custom administrator privilege, Output Tray
Printer Settings
Active or Inactive of the custom administrator privilege, Printer Settings
Prohibit printing stored files from Web Image Monitor
Change of [Prohibit printing stored files from Web Image Monitor].
"Prohibit" or "Do not Prohibit" is stored.
Remote Machine Operation
Active or Inactive of the custom administrator privilege, Remote Machine Operation
Remote Panel Operation
Active or Inactive of the custom administrator privilege, Remote Panel Operation
Scanner Settings
Active or Inactive of the custom administrator privilege, Scanner Settings
Scanner: Email Sending
Signature for e-mail sending by the Scanner function
S/MIME: Certificate No.
Certificate number used with the application
When you do not use Certificate, "Do not Use" is stored.
Security
Active or Inactive of the custom administrator privilege, Security
Security Pattern/Stamp
Active or Inactive of the custom administrator privilege, Security Pattern/Stamp
Send (Email/Folder)
Active or Inactive of the custom administrator privilege, Send (Email/Folder)
Sound
Active or Inactive of the custom administrator privilege, Sound
Tray/Paper Settings
Active or Inactive of the custom administrator privilege, Tray/Paper Settings
Update Firmware
Change of [Firmware Update]
"Prohibit" or "Do not Prohibit" is stored.
Destination Server Name
When log type is "Enhanced Print Volume Use Limitation: Tracking Permission Result", stores the server name of the destination to which send of the tracking information is failed.
When the log type is import or export of the preference information, stores the server name of import request or export request.
Internal Storage Format Partition
Stores the reason for reset of the internal storage.
Value
Description
Internal Storage Exchange
Detects the internal storage change.
Problem with Disk Label
Cannot read disk label.
Problem with File System
File system error
Problem with Internal Storage Encryption Key
Internal Storage Encryption Key error
Access Result
Stores the results of operation that generates log.
Value
Description
Completed
Operation Completed
Failed
Operation failed
Titles shown below are the text displayed on the header line of the CSV file.
Start Date/Time
Stores the Start Date/Time of the event.
End Date/Time
Stores the End Date/Time of the event.
Log Type
Stores the type of the Eco-friendly log.
Value
Description
Job Related Information
Log for job related information
Main Power Off
Log when the main power is turned off.
Main Power On
Log when the main power is turned on.
Paper Usage
Log for paper usage
Power Consumption
Log for power consumption
Power Status Transition Result
Log for power status transition result
Log Result
Indicates whether the even ends.
Value
Description
Completed
Operation Completed
Failed
Operation failed
Result
Stores the results of events.
Value
Description
Failed
Event failed
Succeeded
Event succeeded
Log ID
Stores an ID specified the log. ID is a hexadecimal number.
Power Mode
Stores the power status of the machine (after transition) as a log.
Value
Description
Controller Off
Status of the controller Off
Engine Off
Status of the engine Off
Fuser Unit Off
Status of fuser unit Off
Internal Storage On
Status of the internal storage startup
Low Power
Lower poser status
Low Power Print
Lower power print status
Silent
Silent mode
Silent Print
Silent print status
Standby
Standby status
STR
Status of STR (Suspend To RAM)
Log Type
Stores the type of the job log.
Job Interval (seconds)
Stores the elapsed time from the start of the previous job to that of the current job.
Job Duration (seconds)
Stores the elapsed time from the start of the previous job to that of the current job.
Paper Usage (Large Size)
Stores the usage of 1-sided large size paper per hour.
Large size paper means A3 or 11 × 17 inches or larger.
Paper Usage (Small Size)
Stores the usage of 1-sided small size paper per hour.
Small size paper means smaller than A3 or 11 × 17 inches.
Paper Usage (2 Sided: Large Size)
Stores the usage of 2-sided large size paper per hour
Large size paper means A3 or 11 × 17 inches or larger.
Paper Usage (2 Sided: Small Size)
Stores the usage of 2-sided small size paper per hour.
Small size paper means smaller than A3 or 11 × 17 inches.
Detected Power
Stores the power status of the machine, whose power consumption is measured, as log.
Value
Description
Controller Standby
Controller standby status
Engine Low
Engine low power status
Engine Night
Engine silent mode
Engine Standby
Engine standby status
Engine Total
Overall status of the machine
Fuser Unit Off
Fuser Unit standby status
Main Power Off
The main power is turned Off.
Printing
Printer is processing.
Scanning
Scanner is processing.
Scanning/Printing
Printer and Scanner are processing.
STR
Status of STR (Suspend To RAM)
Power Consumption(Wh)
Stores the power consumption for each power status.
