Edit / Stamp

Margin

Setting Items	Description
Front Margin: Left / Right Back Margin: Left / Right	(mainly Europe and Asia)/(Taiwan) You can specify left and right margins on the front and back sides of copies within the range of 0 to 30 mm. Default Front Margin: Left / Right: [Left], [5] mm Back Margin: Left / Right: [Right], [5] mm (mainly North America) You can specify left and right margins on the front and back sides of copies within the range of 0.0 to 1.2 inches. Default Front Margin: Left / Right: [Left], [0.2] inch Back Margin: Left / Right: [Right], [0.2] inch Duplex Copying
Front Margin: Top / Bottom Back Margin: Top / Bottom	(mainly Europe and Asia)/(Taiwan) You can specify top and bottom margins on the front and back sides of copies within the range of 0 to 30 mm. Default Front Margin: Top / Bottom: [Top], [0] mm Back Margin: Top / Bottom: [Top], [0] mm (mainly North America) You can specify top and bottom margins on the front and back sides of copies within the range of 0.0 to 1.2 inches. Default Front Margin: Top / Bottom: [Top], [0.0] inch Back Margin: Top / Bottom: [Top], [0.0] inch Duplex Copying
1 Sided→ 2 Sided Auto Margin: Left/Right 1 Sided→2 Sided Auto Margin: Top to Bottom	(mainly Europe and Asia)/(Taiwan) In [1 sided→2 sided] mode, you can specify the margins on the back side L / R or back side T / B within the range of 0 to 30 mm. Default 1 Sided→2 Sided Auto Margin: Right / Left: [Left], [0] mm 1 Sided→2 Sided Auto Margin: Top to Bottom: [Top], [0] mm (mainly North America) In [1 sided→2 sided] mode, you can specify the margins on the back side L / R or back side T / B within the range of 0.0 to 1.2 inches. Default 1 Sided→2 Sided Auto Margin: Right / Left: [Left], [0.0] inch 1 Sided→2 Sided Auto Margin: Top to Bottom: [Top], [0.0] inch Duplex Copying

Section Top

Erase

Setting Items	Description
Erase Border	(mainly Europe and Asia)/(Taiwan) In [Erase Border] mode, you can specify the width for erasing the border within the range of 2 to 99 mm. Default: [10] mm (mainly North America) In [Erase Border] mode, you can specify the width for erasing the border within the range of 0.1 to 3.9 inches. Default: [0.4] inch Erasing Shadow and Border When Copying a Book-type Original
Erase Original Shadow in Combine	In Combine mode, you can specify whether to erase a 3 mm (0.1 inch) boundary margin around all four edges of each original. Default: [On] Combining and Copying a Multi-page Original onto a Single Sheet of Paper
Erase Center Width	(mainly Europe and Asia)/(Taiwan) In [Erase Center] mode, you can specify the width for erasing the border within the range of 2 to 99 mm. Default: [10] mm (mainly North America) In [Erase Center] mode, you can specify the width for erasing the border within the range of 0.1 to 3.9 inches. Default: [0.4] inch Erasing Shadow and Border When Copying a Book-type Original

Section Top

Stamp

This is applied when Background Numbering, Preset Stamp, User Stamp, Date Stamp, Page Numbering, or Stamp Text is specified.

Printing Date, Stamp, and Page Number When Copying

Background Numbering

This section describes the settings in [Background Numbering] on [Stamp]. This is applied when Background Numbering is specified.

Setting Items

Description

Stamp Size Setting

You can specify the size of the numbers.

Default: [Normal]

Density Setting

You can specify the density of the numbers.

Default: [Normal]

Stamp Color Priority

You can specify the default for the stamp color.

Default: [Black]

Setting Items	Description
Stamp Size Setting	You can specify the size of the numbers. Default: [Normal]
Density Setting	You can specify the density of the numbers. Default: [Normal]
Stamp Color Priority	You can specify the default for the stamp color. Default: [Black]

Preset Stamp

This section describes the settings in [Preset Stamp] on [Stamp]. This is applied when Preset Stamp is specified.

Setting Items

Description

Stamp Language

You can select the language of the message printed in Preset Stamp mode.

(mainly Europe and Asia)/(mainly North America)

Default: [English]

(China)

Default: [Simplified Chinese]

(Korea)

Default: [Hangul]

(Taiwan)

Default: [Traditional Chinese]

Stamp Language Priority

You can select the default stamp type that has priority.

Default: [COPY]

Stamp Format:

You can specify how each stamp is printed.

Size
You can select the size of the stamp: 1X/2X.

Default: [1 X]

Density
You can select the pattern used to print the stamp: Normal (Opacity) or Density (Lighter or Lightest).

Default: [Normal]

Page to Stamp
You can have the stamp printed on the first page or all pages.

Default: [All Pages]

Stamp Color Priority
You can select the default stamp color.

Default: [Black]

Default Stamp Position
Specify where to print the stamp.

Default: [Top Right]

Fine-adjust Stamp Position
You can adjust the printed position of the stamp in mm or inches.

Setting Items	Description
Stamp Language	You can select the language of the message printed in Preset Stamp mode. (mainly Europe and Asia)/(mainly North America) Default: [English] (China) Default: [Simplified Chinese] (Korea) Default: [Hangul] (Taiwan) Default: [Traditional Chinese]
Stamp Language Priority	You can select the default stamp type that has priority. Default: [COPY]
Stamp Format:	You can specify how each stamp is printed. Size You can select the size of the stamp: 1X/2X. Default: [1 X] Density You can select the pattern used to print the stamp: Normal (Opacity) or Density (Lighter or Lightest). Default: [Normal] Page to Stamp You can have the stamp printed on the first page or all pages. Default: [All Pages] Stamp Color Priority You can select the default stamp color. Default: [Black] Default Stamp Position Specify where to print the stamp. Default: [Top Right] Fine-adjust Stamp Position You can adjust the printed position of the stamp in mm or inches.

User Stamp

This section describes the settings in [User Stamp] on [Stamp]. This is applied when User Stamp is specified.

Setting Items

Description

Program / Delete User Stamp

You can register logos or custom stamps with your favorite designs. You can also delete user stamps.

Page to Stamp
You can have the user stamp printed on the first page or all pages.

Default: [All Pages]

Stamp Color Priority
You can select the default stamp color.

Default: [Black]

Default Stamp Position
Specify where to print the user stamp.

Default: [Top Right]

Fine-adjust Stamp Position
You can adjust the printed position of the stamp in mm or inches.

Setting Items	Description
Program / Delete User Stamp	You can register logos or custom stamps with your favorite designs. You can also delete user stamps. Page to Stamp You can have the user stamp printed on the first page or all pages. Default: [All Pages] Stamp Color Priority You can select the default stamp color. Default: [Black] Default Stamp Position Specify where to print the user stamp. Default: [Top Right] Fine-adjust Stamp Position You can adjust the printed position of the stamp in mm or inches.

Date Stamp

This section describes the settings in [Date Stamp] on [Stamp]. This is applied when Date Stamp is specified.

Setting Items

Description

Format

You can select the date format for Data Stamp mode.

(mainly Europe and Asia)/(Taiwan)

Default: (DD / MM / YYYY)

(mainly North America)

Default: (MM / DD / YYYY)

Font

You can select the date stamp font.

Default: [Font 1]

Size

You can select the date stamp size.

Default: [Auto]

Superimpose

You can have the date stamp printed in white when it overlaps black parts of the image.

Default: [Off]

Stamp Color Priority

You can specify the default for the stamp color.

Default: [Black]

Stamp Setting

Specify how the [Date Stamp] is printed.

Page to Stamp
You can have the date stamp printed on the first page or all pages.

Default: [All Pages]

Default Stamp Position
Specify where to print the date stamp.

Default: [Top Left]

Fine-adjust Stamp Position
You can adjust the printed position of the date stamp in mm or inches.

Setting Items	Description
Format	You can select the date format for Data Stamp mode. (mainly Europe and Asia)/(Taiwan) Default: (DD / MM / YYYY) (mainly North America) Default: (MM / DD / YYYY)
Font	You can select the date stamp font. Default: [Font 1]
Size	You can select the date stamp size. Default: [Auto]
Superimpose	You can have the date stamp printed in white when it overlaps black parts of the image. Default: [Off]
Stamp Color Priority	You can specify the default for the stamp color. Default: [Black]
Stamp Setting	Specify how the [Date Stamp] is printed. Page to Stamp You can have the date stamp printed on the first page or all pages. Default: [All Pages] Default Stamp Position Specify where to print the date stamp. Default: [Top Left] Fine-adjust Stamp Position You can adjust the printed position of the date stamp in mm or inches.

Page Numbering

This section describes the settings in [Page Numbering] on [Stamp]. This is applied when Page Numbering is specified.

Setting Items

Description

Stamp Format Priority

You can select the page number format that has priority, such as stamp type ("P1, P2..." or "Page 1, Page 2...").

Default: [P1, P2...]

Font

You can select the font in Page Numbering mode.

Default: [Font 1]

Size

You can select the size in Page Numbering mode.

Default: [Auto]

Duplex Back Page Stamp Position: Left/Right

Duplex Back Page Stamp Position: Top to Bottom

You can select the printed position of the duplex back page number when [Page Numbering] and Duplex copy (Top to Top or Top to Bottom) are specified.

When [Page Numbering in Combine] is set to [Per Original], the page number is printed at the same position as that on the front page regardless of this setting.

Default

Duplex Back Page Stamp Position: L/R: [Opposite Position]

Duplex Back Page Stamp Position: T to B: [Same Position]

Page Numbering in Combine

When you specify the [Page Numbering] and Combine functions, you can specify the Page Numbering: Per Original or Per Copy.

Default: [Per Original]

Stamp on Designating Slip Sheet

You can select whether or not to print the page number onto slip sheets when using the Designate and [Page Numbering] functions together.

Default: [Off]

Stamp Position

You can specify the page number print position when [Page Numbering] is specified. You can adjust the position in mm or inches.

Default

Stamp type of [-1-,-2-...] or [1-1,1-2...]: [Bottom Center]

Stamp type other than above: [Top Right]

Superimpose

You can have the page number printed in white when it overlaps black parts of the image.

Default: [Off]

Stamp Color Priority

You can specify the default for the stamp color.

Default: [Black]

Page Numbering: Change Language

Specify the page numbering initial letter.

Default: [P1,P2.../P.1,P.2...]

Setting Items	Description
Stamp Format Priority	You can select the page number format that has priority, such as stamp type ("P1, P2..." or "Page 1, Page 2..."). Default: [P1, P2...]
Font	You can select the font in Page Numbering mode. Default: [Font 1]
Size	You can select the size in Page Numbering mode. Default: [Auto]
Duplex Back Page Stamp Position: Left/Right Duplex Back Page Stamp Position: Top to Bottom	You can select the printed position of the duplex back page number when [Page Numbering] and Duplex copy (Top to Top or Top to Bottom) are specified. When [Page Numbering in Combine] is set to [Per Original], the page number is printed at the same position as that on the front page regardless of this setting. Default Duplex Back Page Stamp Position: L/R: [Opposite Position] Duplex Back Page Stamp Position: T to B: [Same Position]
Page Numbering in Combine	When you specify the [Page Numbering] and Combine functions, you can specify the Page Numbering: Per Original or Per Copy. Default: [Per Original]
Stamp on Designating Slip Sheet	You can select whether or not to print the page number onto slip sheets when using the Designate and [Page Numbering] functions together. Default: [Off]
Stamp Position	You can specify the page number print position when [Page Numbering] is specified. You can adjust the position in mm or inches. Default Stamp type of [-1-,-2-...] or [1-1,1-2...]: [Bottom Center] Stamp type other than above: [Top Right]
Superimpose	You can have the page number printed in white when it overlaps black parts of the image. Default: [Off]
Stamp Color Priority	You can specify the default for the stamp color. Default: [Black]
Page Numbering: Change Language	Specify the page numbering initial letter. Default: [P1,P2.../P.1,P.2...]

Stamp Text

This section describes the settings in [Stamp Text] on [Stamp]. This is applied when Stamp Text is specified.

Setting Items

Description

Font

You can select the font in Stamp Text mode.

Default: [Font 1]

Size

You can select the stamp text size.

Default: [Auto]

Superimpose

You can have the stamp text printed in white when it overlaps black parts of the image.

Default: [Off]

Stamp Color Priority

You can specify the default for the stamp color.

Default: [Black]

Stamp Setting

You can specify how the [Stamp Text] is printed.

Page to Stamp
You can have the stamp text printed on the first page or all pages.

Default: [All Pages]

Default Stamp Position
Specify where to print the Stamp Text.

Default: [Top Right]

Fine-adjust Stamp Position
You can adjust the printed position of the stamp text in mm or inches.

Change Job Serial No. for First Job

You can specify whether to append a nine-digit serial number to the text.

Default: [Off]

Setting Items	Description
Font	You can select the font in Stamp Text mode. Default: [Font 1]
Size	You can select the stamp text size. Default: [Auto]
Superimpose	You can have the stamp text printed in white when it overlaps black parts of the image. Default: [Off]
Stamp Color Priority	You can specify the default for the stamp color. Default: [Black]
Stamp Setting	You can specify how the [Stamp Text] is printed. Page to Stamp You can have the stamp text printed on the first page or all pages. Default: [All Pages] Default Stamp Position Specify where to print the Stamp Text. Default: [Top Right] Fine-adjust Stamp Position You can adjust the printed position of the stamp text in mm or inches.
Change Job Serial No. for First Job	You can specify whether to append a nine-digit serial number to the text. Default: [Off]

Section Top

Edit Image

Setting Items	Description

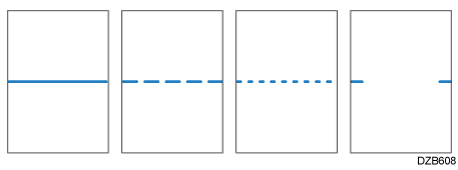

Image Repeat Separation Line Double Copies Separation Line	You can specify whether to use a separation line when copying multiple pages on one side of the paper. You can select the type as well as the color from seven colors. Type (Solid, Broken A, Broken B, Crop Marks): Selecting solid or broken lines might produce a blank area of approximately 1.5 mm (0.06 inches) in width along the separation line. Default: [No Separation Lines]
