Printing the Configuration Page

You can print the configuration information of the machine using the control panel.

  • The paper is fed from the tray in which A4 (or 81/2 × 11) plain paper / recycled paper is set.

  • If the specified paper is not set in the tray, the paper is fed from the tray specified by [Tray/Paper Settings] [Paper Tray Priority] [Paper Tray Priority: Printer].

  1. Log in to the machine as the machine administrator on the control panel.
    Logging in to the Machine as an Administrator
    When custom-privileges administrators are registered, you can log in to the machine as a custom-privileges administrator with the Printer Settings privilege as well.
    Logging in to the Machine as a Custom-Privileges Administrator

  2. On the Home screen, press [Settings].
    Operation panel screen illustration

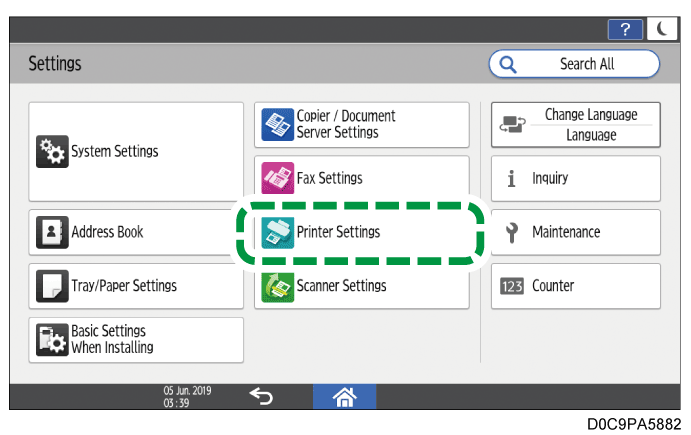

  3. Press [Printer Settings].

    Operation panel screen illustration

  4. Press [List/Test Print] [Machine Information] [Configuration Page].

  5. Press [Start].

  6. After completing the print, press [Home] (Operation panel screen illustration), and then log out of the machine.

Items Printed on the Configuration Page

On the configuration page, the machine's device information, tray paper settings, [Printer Settings], network configuration information will be printed.

Illustration of the configuration page

  • System Reference
    The firmware version, counter information, memory capacity, and name of the installed external units are printed.

  • Paper Input
    The paper tray to be used first, the type and size of the paper set in the paper tray, and other information are printed.

Note

  • Other than the functions mentioned above, the settings of the [Printer Settings] and network configuration information are printed.
