When a Staple Is Jammed

When removing a jammed staple, see the description inside the cover on the finisher (except Internal Finisher SR3310).

When removing a jammed staple, see the description inside the cover on the finisher (except Internal Finisher SR3310 and Internal Finisher SR3370).

CAUTION

  • When operating the machine, do not put your hand inside the booklet finisher tray of the finisher's staple unit. You may trap your fingers in the machine's gap and injury can result.

Note

  • If jamming of staples occurs frequently, check that the paper is not curled.

Internal Finisher SR3310

Removing jammed staple illustration

Section Top

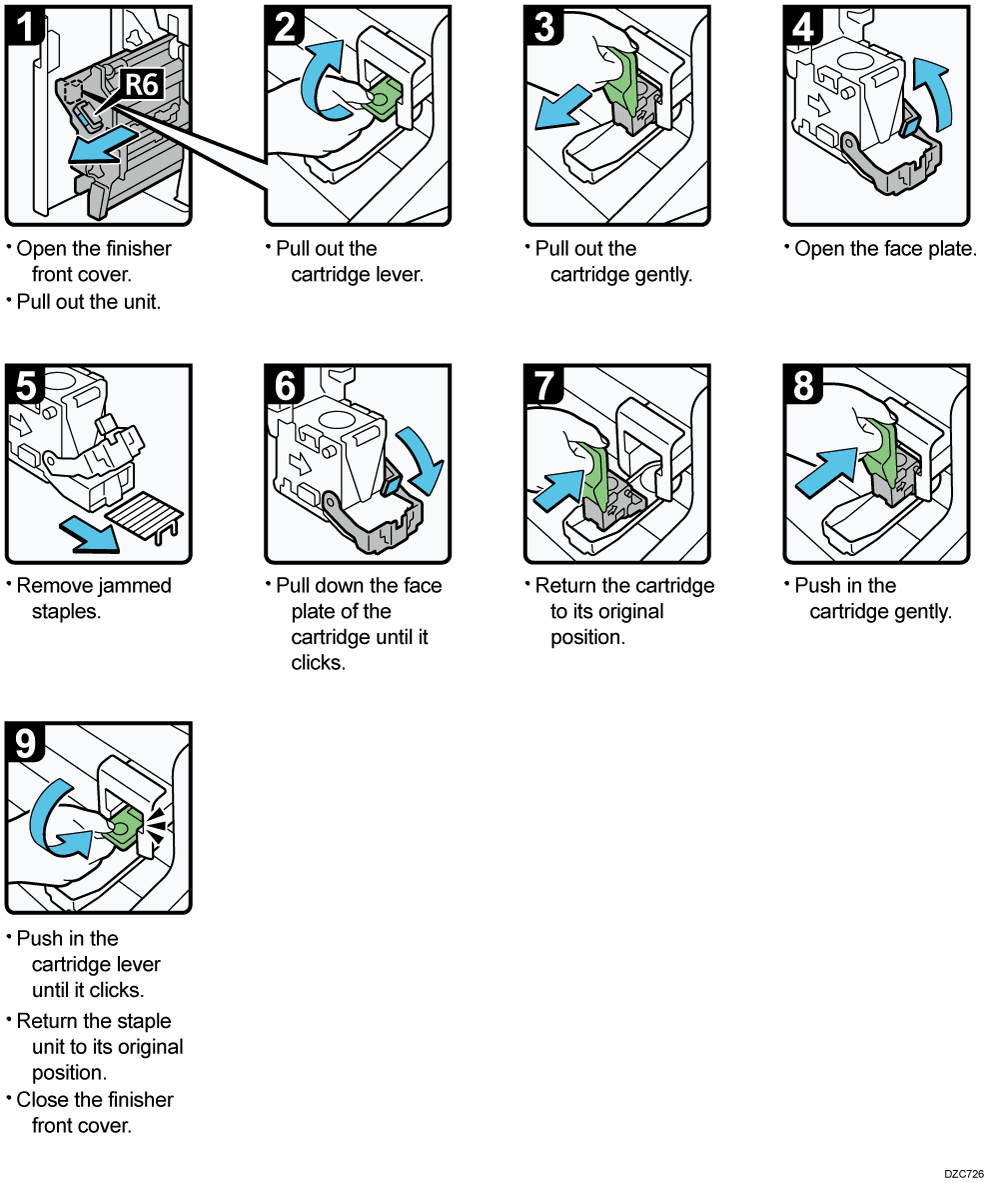

Finisher SR3320

Removing jammed staple illustration

Note

  • Up to 10 blank shots are executed to align the stapler after the jammed staple has been removed.

Section Top

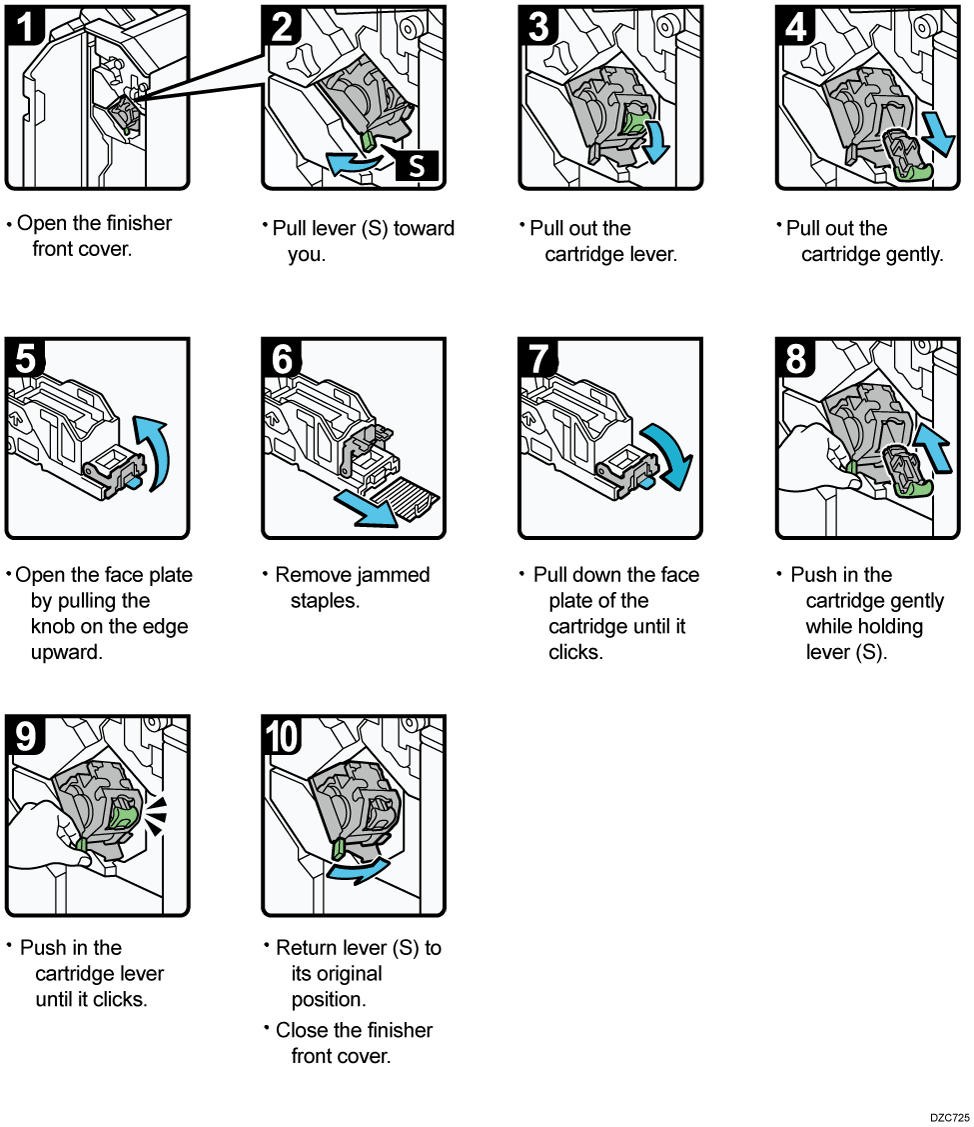

Booklet Finisher SR3330

Removing jammed staple illustration

Section Top

Booklet Finisher SR3350/Finisher SR3340

Removing jammed staple illustration

Note

  • Up to 10 blank shots are performed to align the stapler after the jammed staple has been removed.

Section Top

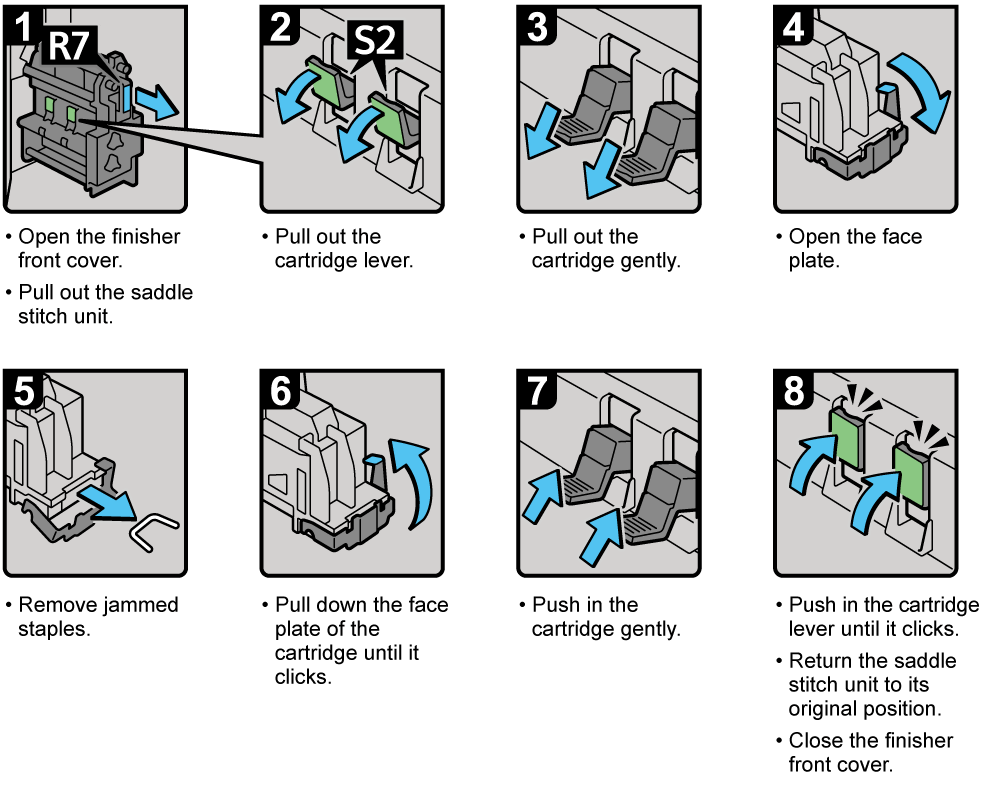

Booklet Finisher SR3350 (Staple)

Removing jammed staple illustration
