Installation Requirements After Moving the Machine

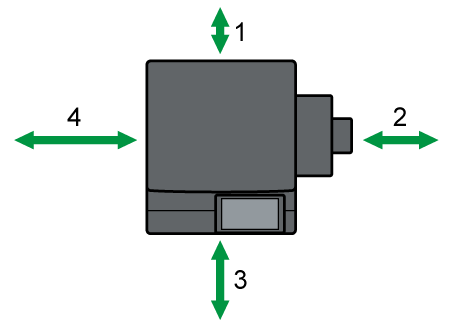

Leave adequate space around the machine to operate and clean the machine, load paper, and for service engineers to perform tasks.
Rear: 10 cm (4.0 inches) or more
Right: 10 cm (4.0 inches) or more
Front: 75 cm (29.6 inches) or more
Left: 10 cm (4.0 inches) or more
For the required space around the machine when any option is attached, consult a service engineer.
|
|
|
|
|
Keep the machine away from salt-bearing air and corrosive gases. Also, do not install the machine in places where chemical reactions are likely (laboratories, etc.), as doing so will cause the machine to malfunction.
Do not move the machine to a location described below. Moving it to a location in an unsuitable environment may damage the machine or cause it to malfunction.
An area with extremely low or high temperature and humidity
The machine is designed to be used in the following environment:
Temperature: 10–32°C (50–89.6ºF) (in 54% humidity at 32°C)
Humidity: 15–80% (in 80% humidity at 27°C)
An area subjected to direct sunlight
A location close to air conditioning equipment or humidifier
A location subjected to strong vibration
A confined or poorly ventilated room
A dusty environment
In the proximity of an oil heater or a device that produces ammonia such as a diazo copying machine
On an unstable floor or table
-
Place the machine on a flat and horizontal surface. The machine must be level within 5 mm (0.20 inches) front to rear and left to right.
-
Place the machine on a firm and stable floor. When placing the machine on a table, select a firm and stable table that is designated for the machine only and larger than the size of the machine.
|
|
|
|
|
|
|
|
|
|
|
Power Source
(mainly Europe and Asia)
220-240 V, 10 A or more, 50/60 Hz
(mainly North America)
120-127 V, 12 A or more, 60 Hz
(Taiwan)
110 V, 20 A or more, 60 Hz
Please be sure to connect the power cord to a power source as above.
(mainly Europe)
For users in Norway, this product is also designed for an IT power distribution system with phase-to-phase voltage of 230V.
Voltage tolerance
(mainly Europe and Asia)
Voltage must not fluctuate by more than 10%.
(mainly North America)
Voltage must not fluctuate by more than +8.66% or less than -10%.
