Specifying the Printing Method of the Received Fax Document

The machine performs one of the following functions to print the received document in the most suitable size and orientation:

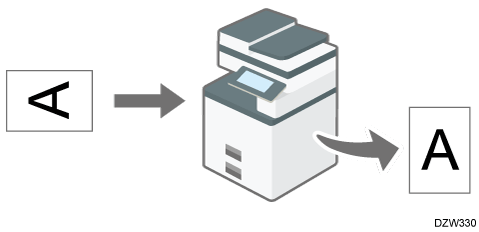

Rotating the image when printing (Image Rotation)

When receiving a fax that matches the size of the paper loaded in the paper tray but differs in the its orientation, the machine rotates the image 90 degrees clockwise automatically and prints it.

• When a paper tray is specified in [Paper Tray] under [Fax Settings], the machine prints the received fax on the paper fed from the specified tray.

Selecting paper according to the size of the received document

The machine selects the paper tray loaded with the paper of same size as the received document and prints it automatically.

• The machine can receive documents in only three sizes in length in the vertical direction by fax: 210 mm (8.27 inches, A4 ), 257 mm (10.12 inches, B4 JIS ), and 297 mm (11.69 inches, A3 ). Any documents that are shorter than 210 mm in vertical length are received as documents with a vertical length of 210 mm. The document is received with the same horizontal length as that of the original.

• You can specify the order to select paper trays when paper of the same size is loaded in more than one tray in [Tray/Paper Settings] [Paper Tray Priority] [Paper Tray Priority: Fax].

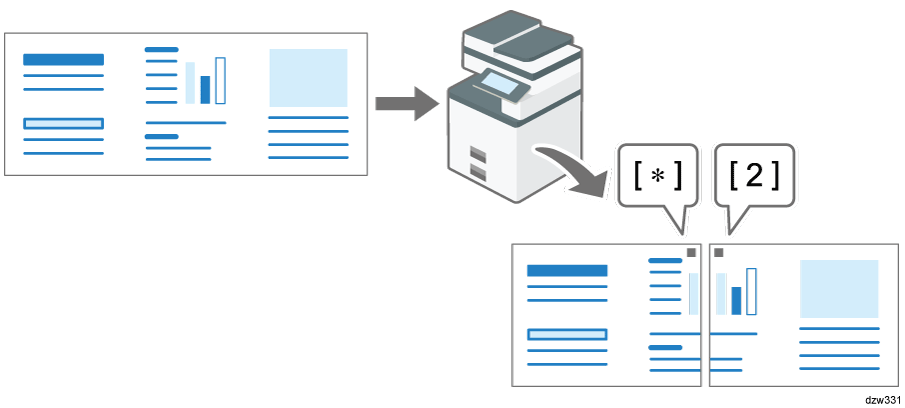

Printing a page across multiple sheets of paper or reducing it to fit on a single sheet

When a document that is larger in width than the paper loaded in any of the trays is received, the machine divides the received page and prints it across multiple sheets of paper or reduces and prints it to fit on a single sheet.

• When the difference in the widths of the paper and received page is greater than 20 mm (0.8 inches)
  The page is divided and printed across multiple sheets. Registration marks (*) are printed in the position where the page was divided, and an area approximately 10 mm (0.4 inches) around the dividing line is printed repeatedly on both sheets.


• When the difference in the widths of the paper and received page is smaller than 20 mm (0.8 inches)
  The page is reduced to fit on a single sheet of paper.


• You can change the settings below. Contact your service representative. The settings enclosed in parentheses are the factory defaults.

  • Reduced print (On)

  • Printing separation marks (On)

  • Overlapping print (On)

  • Overlapping width: select from 4, 10 or 15 mm (10 mm)

  • Recommended size for series print: specify in steps of 5 mm between 5 to 155 mm (when the original length is 20 mm longer than the paper size)

By specifying the method to print received documents in advance, you can print received documents in a variety of ways.

Printing a multi-page document on both sides of the output paper

When receiving a multi-page document comprising pages of the same size, the machine prints the document on both sides of the paper if paper of the same size is loaded in the machine.

For details about the setting, see Printing on Both Sides of Paper When Receiving a Document Comprising Multiple Pages.

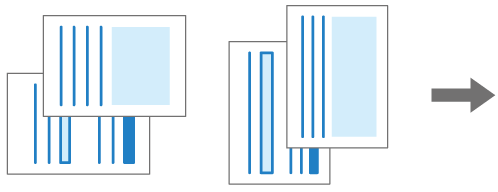

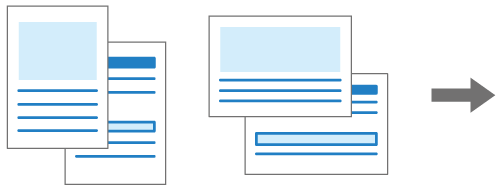

The pages are printed for binding on the left edge and the images on the front and back sides of the paper are printed as follows:

Orientation of the received document	Duplex printing result

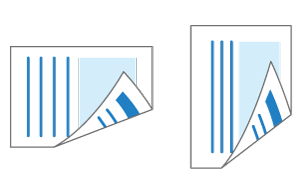

	Images are printed in the same orientation on the front and back sides of the paper.

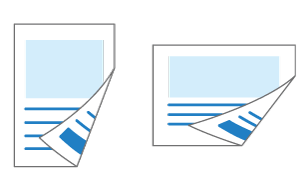

	Images are printed in reverse orientation on the front and back sides of the paper.

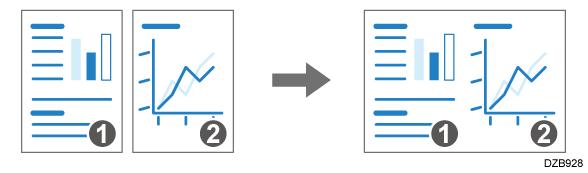

Combining and printing a multi-page document of A5, A4, 8¹/₂ × 5¹/₂, or 8¹/₂ × 11 size onto a single page

When receiving two or more pages of the same size (A5 or A4) subsequently, the machine combines and prints every two pages onto a single sheet of paper as shown below when the paper of the same size and orientation is not loaded in the tray.

• A document of A5size: Reduced and combined side by side on A4 paper

• A document of A4 size: Combined and printed side by side on A3 paper

• A document of 8¹/₂ × 5¹/₂ size: Combined and printed side by side on 8¹/₂ × 11 paper

• A document of 8¹/₂ × 11 size: Combined and printed side by side on 11 × 17 paper

For details about the setting, see Combining and Printing Pages on One Side of Paper When Receiving a Document Comprising Multiple Pages.

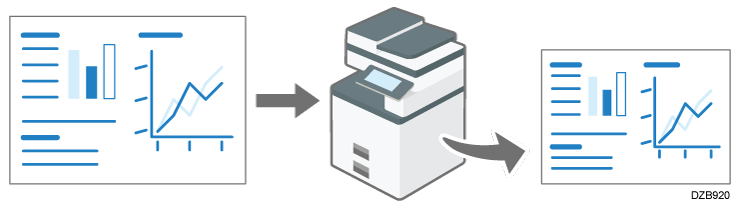

Reducing and printing two pages in a document onto a single page

The machine reduces and prints a page that is normally divided and printed on two sheets of paper onto a single page (Page Reduction).

• When receiving a B4 JIS size document while A4 sizepaper is loaded but B4 JIS paper is not available:
  The document is reduced and printed on a single sheet of A4paper.

• When receiving an A3 size document while B4 JIS size paper is loaded but A3 paper is not available:
  The document is reduced and printed on a single sheet of B4 JIS paper.

• Print quality may degrade when using this function.

For details about the setting, see Reducing and Printing the Received Document onto a Single Sheet of Paper.

Printing multiple copies for a document

The machine prints the specified number of a received document. If you specify the number of copies you need in advance, you do not have to make copies later.

For details about the setting, see Printing More than One Copy for a Received Document.

Printing only on paper of the same size as the received document

The machine prints the received document only when paper of the same size as the document is available in any of the trays (Just size printing). "Add paper." is displayed when paper of the optimal size is not loaded in any of the source trays. Load the appropriate size paper into the source tray.

For details about the setting, see Printing Only When Paper of the Same Size as the Received Document Is Available.

Printing on paper loaded on the bypass tray

Under normal operation, the machine does not print the received document on paper fed from the bypass tray, but you can configure the machine to print documents received only from a special sender on the paper loaded on the bypass tray.

For details about the setting, see Specifying the Action to Perform When Receiving a Fax from Different Senders.

• On the bypass tray, you can load paper that cannot be loaded in any of the paper source trays.

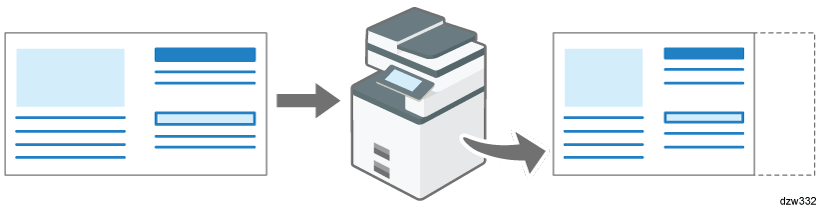

Printing the received document slightly smaller

If there is a description on the edge of the paper in a drawing, the description on the edge of the paper may not be printed when printing the received document. To prevent this from happening, you can set the received document to print a little smaller.

For details about the setting, see Printing the Received Document Slightly Smaller.

Documents are printed on both sides of the paper when duplex printing is enabled in [Fax Settings] [Reception Settings] [Reception File Print Settings] and all following conditions are fulfilled:

• The received documents consists of pages in the same size

• The paper of the same size as the received document is loaded in one of the paper source trays

• All pages of the document have been successfully received into the memory of the machine

1. Press [Settings] on the Home screen.


2. Press [Fax Settings] on the Settings screen.

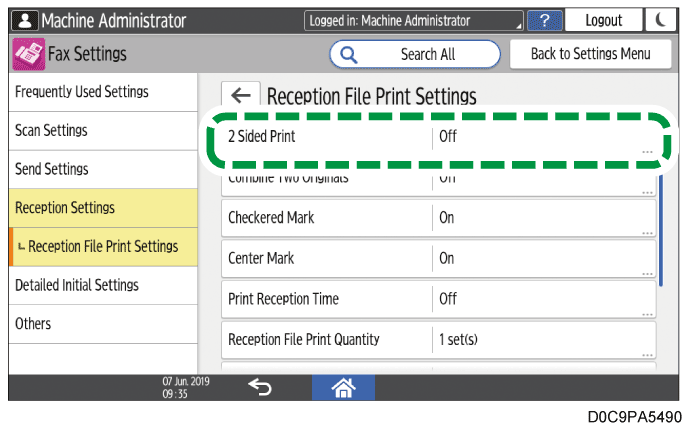

3. Press [Reception Settings] [Reception File Print Settings] [2 Sided Print].



4. Select [On].

5. Press [OK].

6. Press [Home] () after specifying the settings.

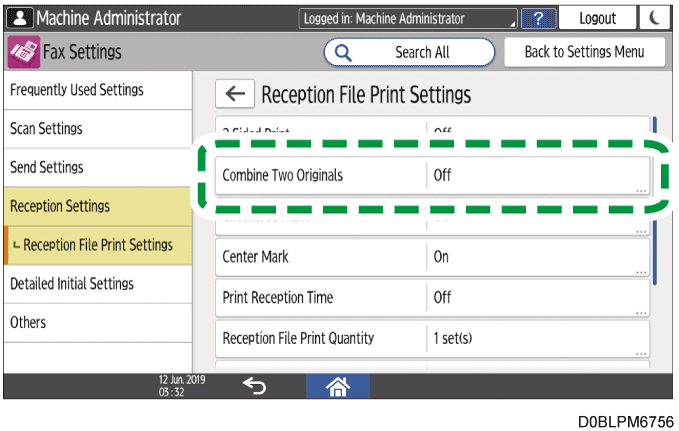

Turn on [Combine Two Originals] in [Reception File Print Settings] in [Reception Settings] under [Fax Settings].

1. Press [Settings] on the Home screen.


2. Press [Fax Settings] on the Settings screen.



3. Press [Reception Settings] [Reception File Print Settings] [Combine Two Originals].



4. Select [On].

5. Press [OK].

6. Press [Home] () after specifying the settings.

Configure this function in [Parameter Setting] under [Fax Settings].

1. Press [Settings] on the Home screen.


2. Press [Fax Settings] on the Settings screen.


3. Press [Detailed Initial Settings] [Parameter Setting] [Parameter Setting].

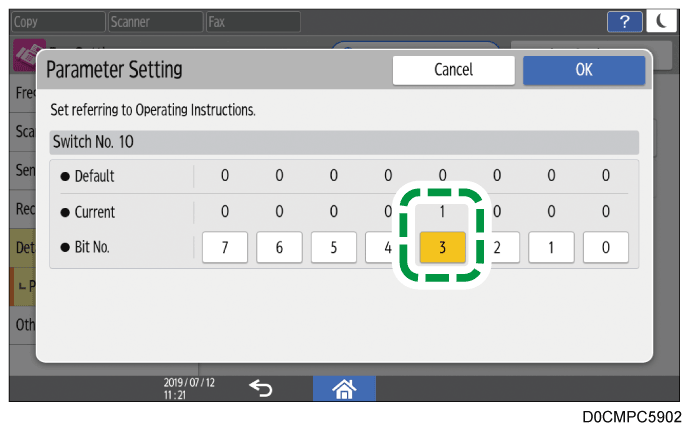

4. Select bit number [3] under switch number [10], and change current value to "1".


5. Press [OK].

6. Press [Home] () after specifying the settings.

Configure this function in [Fax Settings] [Reception Settings] [Reception File Print Settings] [Reception File Print Quantity].

1. Press [Settings] on the Home screen.


2. Press [Fax Settings] on the Settings screen.



3. Press [Reception Settings] [Reception File Print Settings] [Reception File Print Quantity].

4. Specify the number of copies to print, and then press [OK].

5. Press [Home] () after specifying the settings.

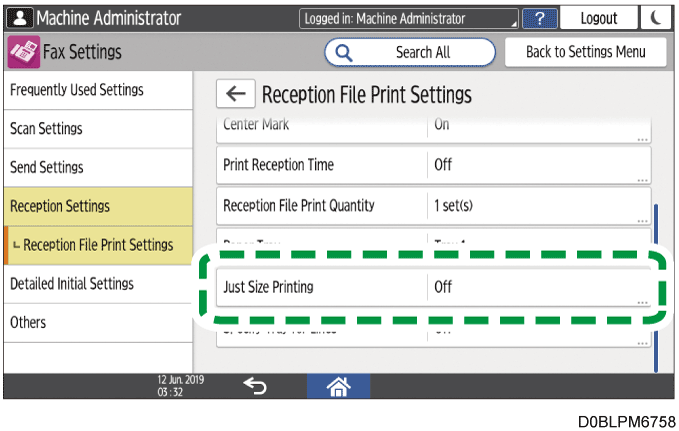

Turn on [Just Size Printing] in [Reception File Print Settings] in [Reception Settings] under [Fax Settings].

1. Press [Settings] on the Home screen.


2. Press [Fax Settings] on the Settings screen.



3. Press [Reception Settings] [Reception File Print Settings] [Just Size Printing].



4. Select [On].

5. Press [OK] twice.

6. After completing the procedure, press [Home] ().

Confirm and take note of the destination name and fax number before configuring the settings in [Register Special Sender] of [Reception Settings] under [Fax Settings].

1. Press [Fax] on the Home screen.


2. Press [Job Status/Stop] on the fax screen.


3. Press [Reception Result] to browse the sender information on the operation panel, or press Records to check the information in the reception report.


   Browsing the sender information on the operation panel

   1. Press [Reception Result] and select [Display All] or [Display Specified Period].

   2. Check the "Sender" field.

      Take a note of the sender name, paying attention to the capitalization of the alphabetic characters used for the name.

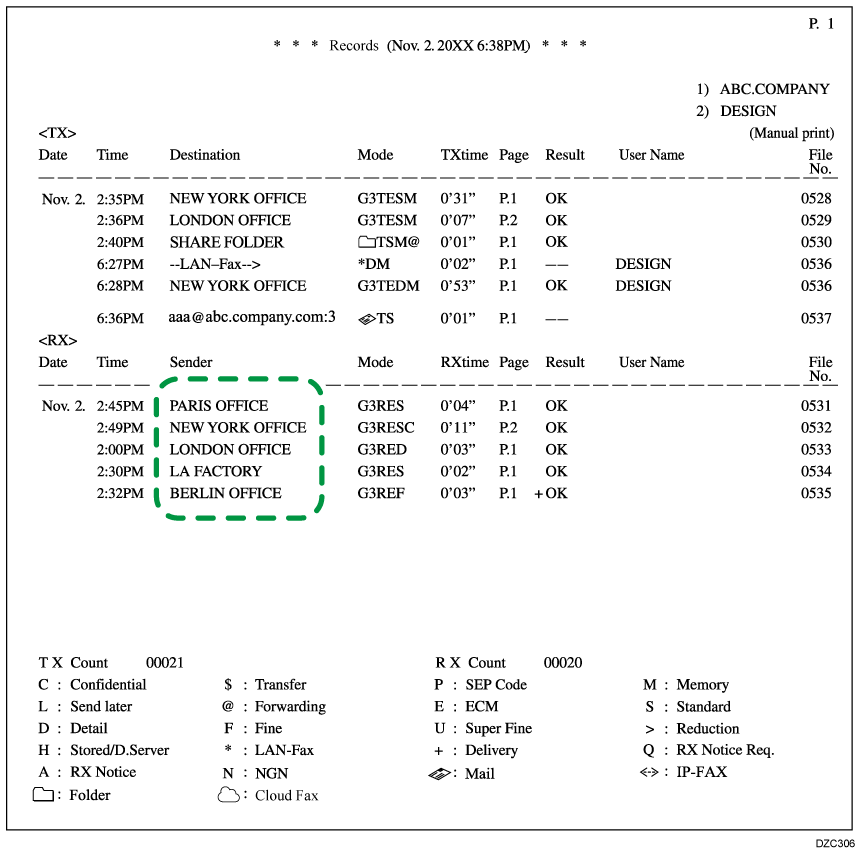

   Viewing the Report for the Sender Information

   1. Press [Print Records], and then select the transmission result to print.

   2. Check the "Sender" column under "RX".


4. After checking the information, press [Settings] on the Home screen.


5. Press [Fax Settings] on the Settings screen.


6. Press [Reception Settings] [Register Special Sender] [Register/Change/Delete].

7. Press [Register].

8. Specify the name or fax number of the sender to print the fax received from that sender on the paper loaded on the bypass tray.

   Be sure to enter the information correctly on the note you have taken in Step 3.

9. Specify the condition to match the programmed string.


   • Full Agreement: The machine prints received faxes on paper loaded on the bypass tray when the information received from the sender matches the registered information completely.

   • Partial Agreement: The machine prints received faxes on paper loaded on the bypass tray when the information received from the sender matches the registered information partially.

10. To add the line type to the condition, select a line type.
    If a line type is selected, the machine prints received faxes on paper loaded on the bypass tray when both the programmed string and the line type match.

11. Select [Bypass Tray] in [Paper Tray per Sender].

12. Press [OK] twice.

13. Press [Close].

14. Set [Special Reception Function] to [On] on the [Register Special Sender] screen.

15. Press [OK].

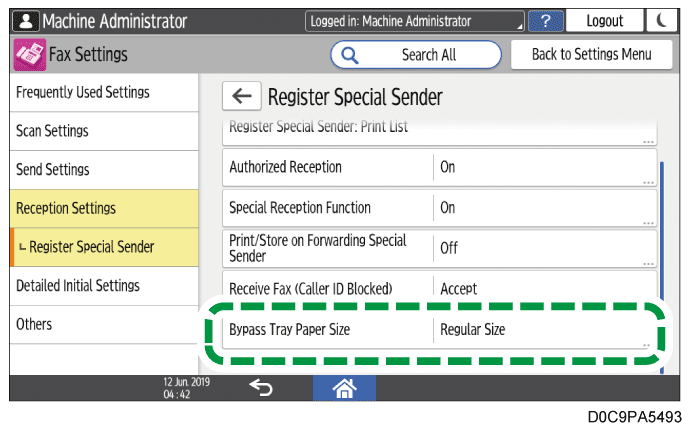

16. Press [Bypass Tray Paper Size] to specify the size.


17. Press [OK].

18. Press [Home] () after specifying the settings.

Turn on [Print with Margin] in [Reception File Print Settings] in [Reception Settings] under [Fax Settings].

1. Press [Settings] on the Home screen.


2. Press [Fax Settings] on the Settings screen.

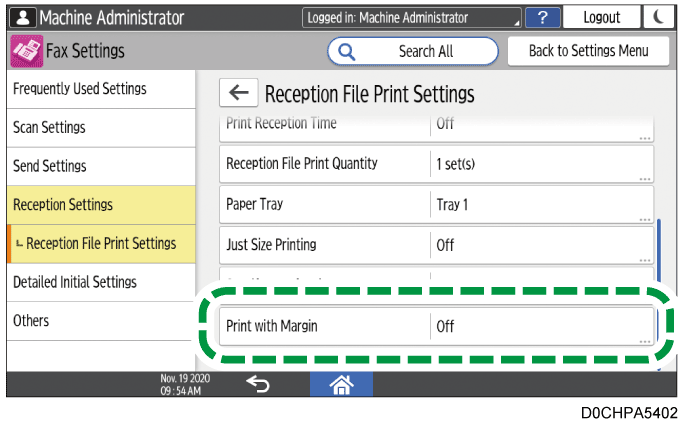

3. Press [Reception Settings] [Reception File Print Settings] [Print with Margin].


4. Select [On].

5. Press [OK].

6. After completing the procedure, press [Home] ().
