Machine Options

Note

For details about the names and the abbreviated names of the options described in this manual, see the following.
Abbreviated Names of Options

Guide to Functions of the Machine’s External Options

Options that can be attached to the machine differ depending on the machine type.

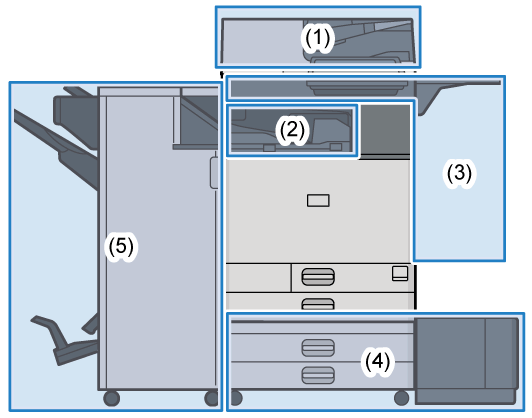

Machine illustration

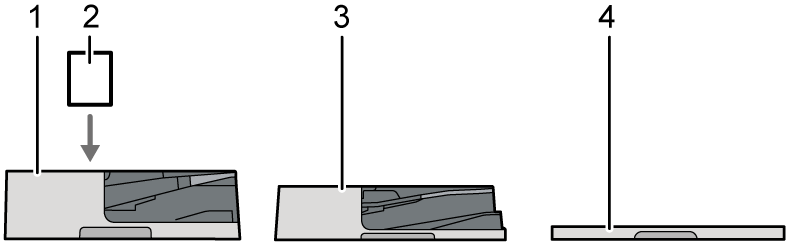

(1) Options Mounted to the Scanner Unit

No.

Option^*1

Description

1

One- pass duplex scanning ADF^*2

When scanning a two-sided original, the machine scans the front and back sides of the two-sided original at one time.

2

Page keeper^*3

Detects a double feeding of the original when it is placed in the ADF.

3

ARDF^*2

When scanning a two-sided original, the machine scans the front side of the original first, and then turns it over to scan the back side.

4

Exposure Glass Cover^*2

Lowers the cover over originals placed on the exposure glass.

*1 Depending on the machine type, ADF is attached as standard.

*2 This cannot be mounted on some types of machines.

(mainly North America)

*3 This cannot be mounted to IM C4510.

No.	Option^*1	Description
1	One- pass duplex scanning ADF^*2	When scanning a two-sided original, the machine scans the front and back sides of the two-sided original at one time.
2	Page keeper^*3	Detects a double feeding of the original when it is placed in the ADF.
3	ARDF^*2	When scanning a two-sided original, the machine scans the front side of the original first, and then turns it over to scan the back side.
4	Exposure Glass Cover^*2	Lowers the cover over originals placed on the exposure glass.

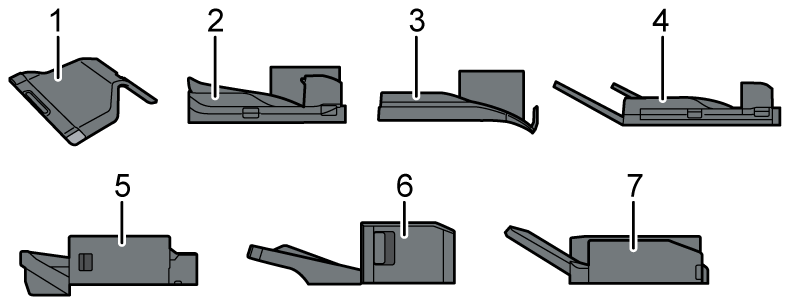

(2) Options Mounted to the Machine’s Paper Output Section

No.

Option

Description

1

Internal Tray 2

Specify the output tray for the function, such as Copy or Fax, added to the Internal Tray 1. When you use this tray together with the optional external tray, you can specify up to three output trays. Copied/printed paper or fax messages are delivered here face down.

2

Bridge Unit

Relays the main unit and finisher.

3

Internal Shift Tray

Internal Shift Tray^*3

Sorts and stacks multiple sheets of paper for each set or each job.

Copying in Page Order or for Each Page Number

Sorting Printed Sheets by Individual Copies

4

External Tray

External Tray^*3

Specify the output tray for the function, such as Copy or Fax, added to the Internal Tray 1. When you use this tray together with the optional Internal Tray 2, you can specify up to three output trays. Copied/printed paper or fax messages are delivered here face down.

5

Internal Finisher SR3310 ^*1

Internal Finisher SR3310 ^*1^*3

Internal Finisher SR3370 ^*4

Sorts, stacks, and staples multiple sheets of paper. Copies can be punched if the optional punch unit is installed on the finisher.

6

Internal Finisher SR3360 ^*2

Internal Finisher SR3360 ^*2*3

Shifts, sorts, stacks, and staples multiple sheets of paper with a stapleless stapler.

7

Internal Multi-Fold Unit

Folds the printed paper in half fold, letter fold-in, letter fold-out, or Z-fold.

Folding Printed Sheets

*1 This cannot be mounted to IM C6010/GS4160c.

*2 This cannot be mounted to IM C4510/C4510A/C5510/C5510A/C6010/GS4045c/GS4160c.

*3 This cannot be mounted to IM C7010.
*4 This cannot be mounted to IM C2010/C2010A/C2510/C2510A/C2519J/C3010/C3010A/C3510/C3510A/C3519J/C4510/C4510A/C5510/C5510A/C6010/GS4020c/GS4025c/GS4030c/GS4045c/GS4160c.

No.	Option	Description
1	Internal Tray 2	Specify the output tray for the function, such as Copy or Fax, added to the Internal Tray 1. When you use this tray together with the optional external tray, you can specify up to three output trays. Copied/printed paper or fax messages are delivered here face down.
2	Bridge Unit	Relays the main unit and finisher.
3	Internal Shift Tray Internal Shift Tray^*3	Sorts and stacks multiple sheets of paper for each set or each job. Copying in Page Order or for Each Page Number Sorting Printed Sheets by Individual Copies
4	External Tray External Tray^*3	Specify the output tray for the function, such as Copy or Fax, added to the Internal Tray 1. When you use this tray together with the optional Internal Tray 2, you can specify up to three output trays. Copied/printed paper or fax messages are delivered here face down.
5	Internal Finisher SR3310 ^1 Internal Finisher SR3310 ^1^3 Internal Finisher SR3370 ^4	Sorts, stacks, and staples multiple sheets of paper. Copies can be punched if the optional punch unit is installed on the finisher.
6	Internal Finisher SR3360 ^2 Internal Finisher SR3360 ^2*3	Shifts, sorts, stacks, and staples multiple sheets of paper with a stapleless stapler.
7	Internal Multi-Fold Unit	Folds the printed paper in half fold, letter fold-in, letter fold-out, or Z-fold. Folding Printed Sheets

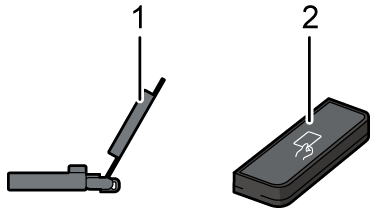

(3) Options Mounted on the Machine’s Side Panel

No.

Option

Description

1

Banner Paper Guide Tray

Banner paper is loaded here.
Loading Paper into the Paper Tray

2

NFC card reader

Pass an IC card over the card reader to log in to the machine.
Logging In from the Control Panel

No.	Option	Description
1	Banner Paper Guide Tray	Banner paper is loaded here. Loading Paper into the Paper Tray
2	NFC card reader	Pass an IC card over the card reader to log in to the machine. Logging In from the Control Panel

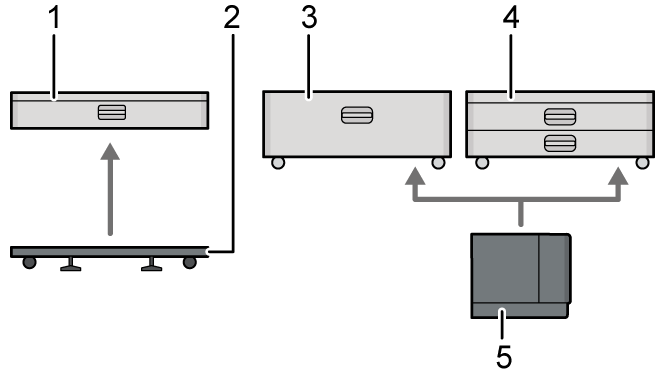

(4) Options Mounted on the Machine’s Bottom

No.

Option

Description

1

Lower Paper Tray

Lower Paper Tray ^*2

Paper is loaded here. You can load up to 550 sheets of paper.

2

Caster Table

You can attach it to the main unit or the lower paper tray. Allows you to move the machine easily.

3

Tray 3 (LCT)^*1

Consists of two paper trays, right and left, for A4 size paper. You can load up to 2,000 sheets of paper.

4

Lower Paper Trays

Consists of two paper trays. You can load up to 1,100 sheets of paper.

5

Large Capacity Tray^*1

Paper tray for A4 size paper. You can load up to 1,500 sheets of paper.

*1 The Tray 3 (LCT) and Large Capacity Tray cannot be mounted to IM C2010/C2010A/C2510/C2510A/C2519J/GS4020c/GS4025c.

*2 This cannot be mounted to IM C7010.

No.	Option	Description
1	Lower Paper Tray Lower Paper Tray ^*2	Paper is loaded here. You can load up to 550 sheets of paper.
2	Caster Table	You can attach it to the main unit or the lower paper tray. Allows you to move the machine easily.
3	Tray 3 (LCT)^*1	Consists of two paper trays, right and left, for A4 size paper. You can load up to 2,000 sheets of paper.
4	Lower Paper Trays	Consists of two paper trays. You can load up to 1,100 sheets of paper.
5	Large Capacity Tray^*1	Paper tray for A4 size paper. You can load up to 1,500 sheets of paper.

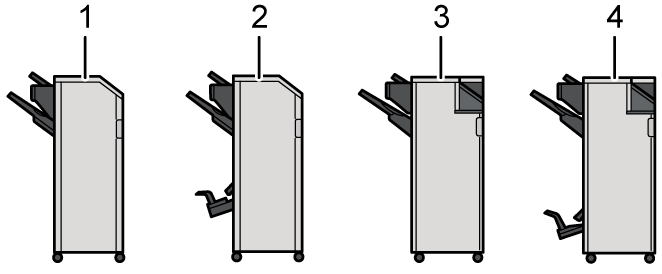

(5) Finisher

No.

Option

Description

1

Finisher SR3320 ^*1

Sorts, stacks, and staples multiple sheets of paper.
Consists of the following paper trays:

Finisher Upper Tray

Finisher Shift Tray

Copies can be punched if the optional punch unit is installed on the finisher.

2

Booklet Finisher SR3330

Sorts, stacks, and staples multiple sheets of paper. The saddle stitch function can staple multiple sheets of paper in the center and fold them into booklets.

Folding Printed Sheets

Consists of the following paper trays:

Finisher Upper Tray

Finisher Shift Tray

Finisher Booklet Tray

Copies can be punched if the optional punch unit is installed on the finisher.

3

Finisher SR3340 ^*2

Sorts, stacks, and staples multiple sheets of paper.
Consists of the following paper trays:

Finisher Upper Tray

Finisher Shift Tray

Copies can be punched if the optional punch unit is installed on the finisher.
The ejected paper can be aligned if the output jogger unit is installed on the finisher. Stapleless stapler function can be used if the stapleless unit is installed on the finisher.

4

Booklet Finisher SR3350 ^*2

Sorts, stacks, and staples multiple sheets of paper. The saddle stitch function can staple multiple sheets of paper in the center and fold them into booklets.

Folding Printed Sheets

Consists of the following paper trays:

Finisher Upper Tray

Finisher Shift Tray

Finisher Booklet Tray

Copies can be punched if the optional punch unit is installed on the finisher.

The ejected paper can be aligned if the output jogger unit is installed on the finisher. Stapleless stapler function can be used if the stapleless unit is installed on the finisher.

*1 The Finisher SR3320 cannot be mounted to IM C2010/C2010A/C2510/C2510A/C2519J/GS4020c/GS4025c.

*2 The Finisher SR3340 and Booklet Finisher SR3350 cannot be mounted to IM C2010/C2010A/C2510/C2510A/C2519J/C3010/C3010A/C3510/C3510A/C3519J/GS4020c/GS4025c/GS4030c.

No.	Option	Description
1	Finisher SR3320 ^*1	Sorts, stacks, and staples multiple sheets of paper. Consists of the following paper trays: Finisher Upper Tray Finisher Shift Tray Copies can be punched if the optional punch unit is installed on the finisher.
2	Booklet Finisher SR3330	Sorts, stacks, and staples multiple sheets of paper. The saddle stitch function can staple multiple sheets of paper in the center and fold them into booklets. Folding Printed Sheets Consists of the following paper trays: Finisher Upper Tray Finisher Shift Tray Finisher Booklet Tray Copies can be punched if the optional punch unit is installed on the finisher.
3	Finisher SR3340 ^*2	Sorts, stacks, and staples multiple sheets of paper. Consists of the following paper trays: Finisher Upper Tray Finisher Shift Tray Copies can be punched if the optional punch unit is installed on the finisher. The ejected paper can be aligned if the output jogger unit is installed on the finisher. Stapleless stapler function can be used if the stapleless unit is installed on the finisher.
4	Booklet Finisher SR3350 ^*2	Sorts, stacks, and staples multiple sheets of paper. The saddle stitch function can staple multiple sheets of paper in the center and fold them into booklets. Folding Printed Sheets Consists of the following paper trays: Finisher Upper Tray Finisher Shift Tray Finisher Booklet Tray Copies can be punched if the optional punch unit is installed on the finisher. The ejected paper can be aligned if the output jogger unit is installed on the finisher. Stapleless stapler function can be used if the stapleless unit is installed on the finisher.

Note

You cannot install multiple finishers simultaneously.
To mount the Finisher SR3320, Booklet Finisher SR3330, Finisher SR3340, or Booklet Finisher SR3350, one of the lower paper trays, or tray 3 (LCT) and the bridge unit or internal multi-fold unit must be mounted.

Section Top

Guide to Functions of the Machine’s Internal Options

Fax unit (Model name: GWFCU6)
Allows you to use the facsimile function.
G3 interface unit (Model name: EXG3)^*2
This lets you add a G3 fax line. A maximum of two G3 interface units can be installed.
Fax Memory Unit
Provides 60 MB of additional memory for the facsimile function. (Standard 4 MB)
This allows you to send and receive fax documents at high resolution (Super Fine), and also to receive fax documents at high resolution (Fine). This enables you to increase the number of sheets of originals that can be stored in memory.

PostScript 3 unit
Allows you to output using Genuine Adobe PostScript 3.

OCR unit
Recognizes the scanned originals optically, and creates a PDF with the text data embedded.

IPDS unit^*1
Allows you to print using Intelligent Printer Data Stream (IPDS).

XPS direct print card
Allows you to directly output XPS files.

Camera direct print card
Allows you to directly print photos taken with a PictBridge-compatible digital camera.
Device server option ((mainly Europe and Asia^*3)/ (mainly North America))
Allows you to add an Ethernet port to the printer. Allows you to print using the printer function via a network other than that connected to the machine.

Wireless LAN board
Allows you to communicate over wireless LAN.
Wired LAN and wireless LAN cannot be used at the same time.

File format converter
Allows you to download documents that are stored in the Document Server to the computer.
Enhanced Security SSD Option ((mainly Europe)/ (mainly North America))
Allows you to enhance the security of the internal storage by using an encryption function that is compliant with FIPS 140-2.
SSD Option
Allows you to add 1 TB of internal storage.
Fax connection unit
Allows you to send and receive faxes via a different machine that has the fax unit installed.

*1 IM C3010/C3010A/C3510/C3510A/C3519J/C4510/C4510A/C5510/C5510A/C6010/GS4030c/GS4045c/GS4160c only

*1 IM C3010/C3010A/C3510/C3510A/C3519J/C4510/C4510A/C5510/C5510A/C6010/C7010/GS4030c/GS4045c/GS4160c only

Region B icon (Taiwan)
*2 IM C3010/C3510/C4510/C6010 only

*3 Except for China.
