Folding Copied Sheets

The machine folds and finishes copied sheets. The fold function helps you to make booklets or brochures.

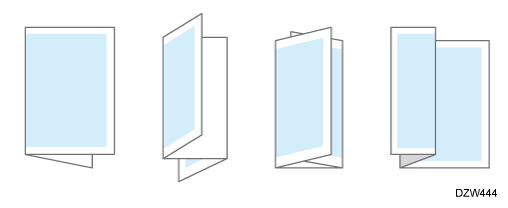

You can select Half Fold, Letter Fold-out, Letter Fold-in, or Z-fold.

Illustration of folding copied sheets

Important

  • An optional unit such as the booklet finisher or internal multi-fold unit is required to use this function.
    Copy Function

  • Do not use the fold function with the following types of paper:

    • Thick Paper*1

    • Label Paper

    • Envelope

    • Coated paper

    • Thin Paper:52–59 g/m2 (Approx. 14–15 lb. Bond)*2

      *1 When using Booklet Finisher SR3350, you cannot use the fold function with Thick Paper 3 or 4.
      *2 Only the Booklet Finisher SR3350 or internal multi-fold unit

Note

  • The types of fold, number of sheets to fold, and supported paper size differ depending on the optional equipment attached to the machine.
    List of Specifications

  • You can specify the fold-back position.
    Fold/Booklet

  • When using Booklet Finisher SR3350 or Finisher SR3340, you can staple Z-folded copies. For details about the number and the paper sizes of Z-folded copies that can be stapled, see the following section:
    Specifications for Booklet Finisher SR3350
    Specifications for Finisher SR3340

  • Even if you place different size originals in the ADF, appropriate size of copy paper can be automatically selected and Z-folded using the Mixed Sizes mode and Auto Paper Select function.

  • When you copy different size originals, such as A3 and A4 (11 × 17 and 81/2 × 11), use this function with Mixed Sizes mode. Copies of the large size original are Z-folded and will be the same size as the copy of the small size original. Paper sizes you can use together are as follows:

    • A3Landscape and A4Portrait

    • B4 JISLandscape and B5 JISPortrait

    • 11 × 17Landscape and 81/2 × 11Portrait

  • When you select Half Fold, Letter Fold-out, or Letter Fold-in, you cannot use the following functions:

    • Punch

    • Staple

  1. Press [Copy] on the Home screen.
    Operation panel screen illustration

  2. Press [Fold] on the Copy screen.
    Operation panel screen illustration
    If the key is not displayed, select it from [Finishing].
    For details about folding the copied paper in half with the booklet finisher by pressing [Center Folding], see the section below:
    Folding the Copied Paper in Half

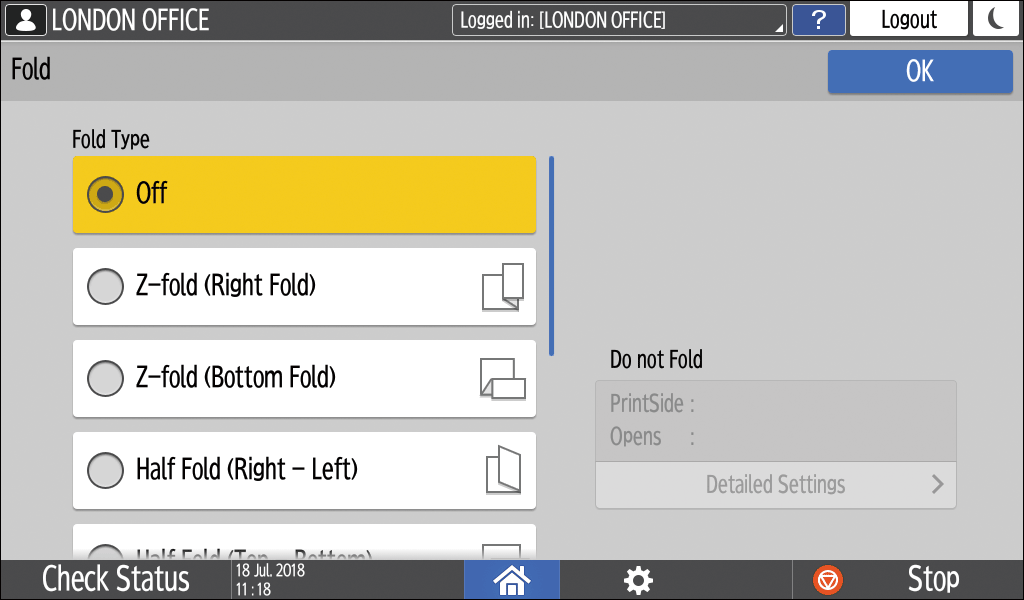

  3. Select the fold type, and then press [OK].
    Operation panel screen illustration

    • When you selected Half Fold, press [Detailed Settings] to specify Print Side.

    • When you selected Letter Fold-in, press [Detailed Settings] to specify Print Side and Open Orientation.

    • When you selected Letter Fold-out, press [Detailed Settings] to specify Open Orientation.

    • You can specify whether to fold several sheets of stacked paper together in the following cases:

      • When the Booklet Finisher SR3350 is installed in the machine, press [Center Folding] for folding in half

      • When the internal multi-fold unit is installed in the machine, use Letter Fold-in or Letter Fold-out for folding

    • When you specify the multi-sheet fold function, the Mixed Sizes function cannot be used.

    • When the internal multi-fold unit is installed in the machine, if you try to fold more than the maximum number of sheets that can be folded, the warning screen appears. In [If Too Many Sheets for Multi-sheet Fold, Set], you can change the action that is taken if the number of sheets that can be folded is exceeded.
      Finishing

  4. Place the original.
    Basic Procedure for Copying Documents

  5. Press [Start].
