List of Specifications
Item |
Specifications |
|---|---|
Configuration |
Desktop |
Memory |
|
Internal storage size |
256 GB(SSD) |
Color |
Full Color |
Photosensitivity type |
OPC drum |
Copy process |
Laser beam scanning and electro-photographic printing |
Exposure glass |
Stationary original exposure type |
Scan method |
Flatbed scanning |
Warm-up time |
*1 Except for China.
(23 °C (73.4 °F), rated voltage) |
|
First copy time |
*1 Except for China.
|
Copy/print speed (per minute) |
*1 Except for China.
(A4 |
Maximum original size |
A3
11×17 |
Original scanning area |
|
Originals |
Sheet, book, three-dimensional object |
Copy size |
|
Paper weight |
For details about and recommendations concerning thick paper, see Thick Paper Orientation and Recommended Status. *1 Paper types that cannot be used for two-sided/book print: envelopes, label paper, matte coated paper, and glossy coated paper |

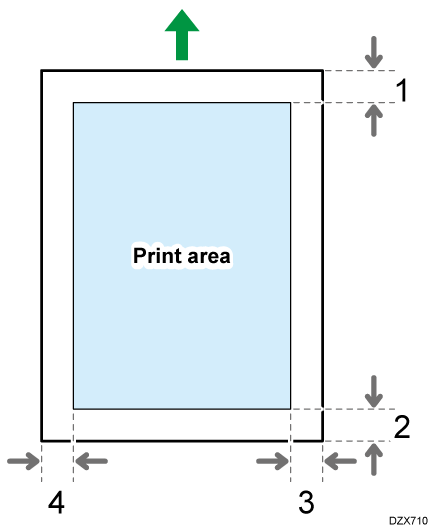

Missing image area (Copy) |
|
Paper output capacity of the internal tray |
A4 or smaller: 500 sheets (80 g/m2) B4 JIS or larger: 250 sheets (80 g/m2) |
Preset reproduction ratio |
Preset reproduction ratios (%):
Preset reproduction ratios (%):
|
Reproduction ratio (zoom) |
From 25–400% in increments of 1% |
Resolution (scanning originals) |
600 × 600dpi |
Resolution (copying) |
600 × 600dpi |
Tone |
256 tones |
Paper capacity (80 g/m2, Approx. 20 lb. Bond) |
|
Continuous copy run |
1–999 sheets |
Duplex |
Standard |
Power requirements |
220-240 V, 10 A, 50/60 Hz
120–127 V, 12 A, 60 Hz
|
|
Power consumption (Main unit only) |
The power level when the main switch is turned off and the power cord is plugged into an outlet: 1 W or less
The power level when the main switch is turned off and the power cord is plugged into an outlet: 1 W or less *1 Except for China.
The power level when the main switch is turned off and the power cord is plugged into an outlet: 1 W or less
The power level when the main switch is turned off and the power cord is plugged into an outlet: 1 W or less |
|
Power consumption (Complete system) |
*1 Except for China.
Maximum: 1584 W or less
|
Dimensions |
*1 Except for China.
|
Space for main unit (W × D) |
IM C2010/C2010A/C2510/C2510A/C2519J/C3010/C3010A/C3510/C3510A/C3519J/C4510/C4510A/C5510/C5510A/C6010/GS4020c/GS4025c/GS4030c/GS4045c/GS4160c: 1,104 × 701 mm (43.5 × 27.6 inches) or less (When the bypass tray, external bypass tray, and output trays are open.) IM C7010: 1,104 × 724 mm (43.5 × 28.6 inches) or less (When the bypass tray, external bypass tray, and output trays are open.) |
|
Noise emission (Sound power level: Main unit only) |
*1 Except for China.
|
|
Noise emission (Sound power level: Complete system) |
*1 Except for China.
|
|
Noise emission (Sound pressure level: Main unit only) |
*1 Except for China.
|
|
Noise emission (Sound pressure level: Complete system) |
*1 Except for China.
|
Noise emission (Sound pressure level) |
*1 Except for China.
|
Weight |
*1 Except for China.
|
Item |
Specifications |
|---|---|
Internal storage (Document Server) |
Approx. 25 GB Maximum: 9,000 pages (Total number of pages that can be stored with all functions combined.) Copy/B&W/A4 original: Approx. 9,000 pages Copy/Full Color/A4 original: Approx. 2,000 pages Printer/Full Color/A4/600 dpi, 2 bits: Approx. 9,000 pages Scanner/Full Color/A4/200 dpi, 8 bits/JPEG: Approx. 9,000 pages (Under the printer and scanner modes, the number of the pages that can be stored depends on the print image and original.) |
Maximum number of stored documents |
3,000 documents |
Number of pages supported by memory sorting |
Maximum: 2,000 pages Copy/B&W/A4 original: Approx. 2,000 pages Printer/B&W/A4/600 dpi, 4 bits: Approx. 2,000 pages (Under the printer mode, the number of pages that can be sorted depends on the print image.) |
After the documents have been stored up to the maximum, no more document can be stored. Delete unneeded documents.
This function may not be used depending on the telephone line or area status.
To connect the machine to the network, use a LAN cable supporting 1000BASE-T, 100BASE-TX, and 10BASE-T. The length of the usable cable is up to 100 m.
Fax Transmissions and Reception
Item |
Specifications |
|---|---|
Standard |
G3 |
Resolution |
|
Transmission time |
3 seconds at 28,800 bps, Standard resolution (JBIG transmission: 2 seconds) |
Data compression method |
MH, MR, MMR, JBIG*2 |
Maximum original size |
Standard: A3 Custom (w × h): 297 × 1,200 mm (11.7 × 47.3 inches) |
Maximum scanning size |
297 × 1,200 mm (11.7 × 47.3 inches) |
Print process |
Laser beam scanning and electro-photographic printing |
Transmission speed |
33,600 / 31,200 / 28,800 / 26,400 / 24,000 / 21,600 / 19,200 / 16,800 / 14,400 / 12,000 / 9,600 / 7,200 / 4,800 / 2,400 bps (auto shift down system) |
*1 For Super Fine transmission, a fax memory unit is required.
*2 JBIG transmission cannot be performed if the JBIG reception and ECM functions are not available on the destination fax. The ECM function is valid for communication over the G3 line.
Internet Fax Transmissions and Reception
Item |
Specifications |
|---|---|
Network |
Wired LAN and wireless LAN cannot be used at the same time. |
Transmit function |
|
Scan line density |
|
Original size: Scanning width |
297 mm (A3 |
Communication Protocols |
|
E-mail format |
Single/Multi-part, MIME Conversion Attached file forms: TIFF-F (MH, MR*1, MMR*1 compression) |
Internet communication |
Send and receive e-mail with a computer that has an e-mail address |
Encryption method (for forwarding) |
S/MIME |
Internet Fax send functions: |
Automatic conversion of sent documents to e-mail format and e-mail transmission. Memory transmission only. |
Internet Fax receive functions |
Automatic detection and printing of appended TIFF-F (MH) files and ASCII text. Memory reception only. |
*1 Full mode
*2 For superfine-character transmission, a fax memory unit is required.
IP-Fax Transmissions and Reception
Item |
Specifications |
|---|---|
Network |
Wired LAN and wireless LAN cannot be used at the same time. |
Scan line density |
|
Maximum original size |
Standard: A3 Custom (w × h): 297 × 1,200 mm (11.7 × 47.3 inches) |
Maximum scanning size |
297 × 1,200 mm (11.7 × 47.3 inches) |
Transmission protocol |
Recommendation: T.38, TCP, UDP/IP communication, SIP (RFC 3261 compliant), H.323 v2 |
Compatible machines |
IP-Fax compatible machines |
IP-Fax transmission function |
Specify an IP address and send faxes to an IP-Fax compatible fax through a network. Also capable of sending faxes to a G3 fax connected to a telephone line via a VoIP gateway. |
IP-Fax reception function |
Receive faxes sent from an IP-Fax compatible fax through a network. Also capable of receiving faxes from a G3 fax connected to a telephone line via a VoIP gateway. |
*1 For detail-character and superfine-character transmission, a fax memory unit is required.
Validated Peripherals
Item |
Specifications |
|---|---|
Gateway (T.38 compliant) |
|
Gatekeeper |
|
SIP server |
|
You can assign multiple addresses of the machine in the IPv6 environment, but only one address can receive IP-fax.
The SIP connection is specified to connect to either IPv4 or IPv6 depending on the environment of the machine. To change the setting, contact your local dealer.
E-mail Transmission and Folder Transmission (Fax (Classic) only)
Item |
Specifications |
|---|---|
Network |
Wired LAN and wireless LAN cannot be used at the same time. |
Scan line density |
|
Maximum original size |
Standard: A3 Custom (w × h): 297 × 1,200 mm (11.7 × 47.3 inches) |
|
Maximum scanning size (w × h) |
297 × 1,200 mm (11.7 × 47.3 inches) |
E-mail transmission protocols |
SMTP, TCP/IP |
Protocols for sending files to folders |
SMB, FTP, TCP/IP |
E-mail format |
Single/Multi-part, MIME Conversion |
File formats |
TIFF (MH, MR, MMR compression), PDF, PDF/A When you select PDF or PDF/A for the file format, you can attach a digital signature. |
Authentication methods |
SMTP-AUTH, POP before SMTP |
Encryption method |
S/MIME |
E-mail sending functions |
Automatically converts documents to e-mail format and sends them as e-mail. |
Sending to folder functions |
Sends scanned files over the network to shared folders or FTP server folders. |
*1 When you send documents in TIFF format.
*2 For detail-character and superfine-character transmission, a fax memory unit is required.
E-mail Reception
Item |
Specifications |
|---|---|
Network |
Wired LAN and wireless LAN cannot be used at the same time. |
E-mail reception protocols (Mail to Print) |
POP3, SMTP, IMAP4, TCP/IP |
E-mail format |
Single/Multi-part, MIME Conversion |
File formats (Mail to Print) |
JPEG (JFIF), PDF |
Authentication methods |
A-POP |
Encryption method |
S/MIME |
E-mail receiving functions |
Automatically detects and outputs JPEG and PDF documents attached to received e-mail. |
Item |
Specifications |
|---|---|
Printing speed |
*1 Except for China.
(A4 |
Resolution |
200 dpi, 300 dpi, 400 dpi, 600 dpi, 1,200 dpi |
Printer language |
|
Interface |
|
Network protocol |
TCP/IP (IPv4, IPv6) |
USB interface |
IM C2010/C2010A/C2510/C2510A/C2519J/C3010/C3010A/C3510/C3510A/C3519J/C4510/C4510A/C5510/C5510A/C6010/GS4020c/GS4025c/GS4030c/GS4045c/GS4160c:
IM C7010:
*1 Except for China.
|
Operating system |
|
Fonts |
|
Store function |
Total number of documents that can be stored: Up to 100 documents Number of pages for each document that can be stored: Up to 2,000 pages Total number of pages of all documents that can be stored: Up to 9,000 pages |
Sort function |
Number of pages that can be sorted: Up to 2,000 pages Number of copies that can be sorted: Up to 999 copies |
To connect the machine to the network, use a LAN cable supporting 1000BASE-T, 100BASE-TX, and 10BASE-T. The maximum length for the cable connecting the machine to an Ethernet network is 100 meters.
When the resolution is 1200 dpi, the printing speed may be slower for the IM C2010/C2010A/C2510/C2510A/C2519J/C3010/C3010A/C3510/C3510A/C3519J/GS4020c/GS4025c/GS4030c.
To connect the machine to the network, use a LAN cable supporting 1000BASE-T, 100BASE-TX, and 10BASE-T. The length of the usable cable is up to 100 m.
Scanning
Item |
Specifications |
|---|---|
Type |
Full-color scanner |
Scan method |
Flatbed scanning |
Image sensor type |
CMOS Image Sensor |
Scan type |
Sheet, book, three-dimensional object |
Original sizes that can be scanned |
|
Scan sizes automatically detectable |
|
Scan speed |
When using the E-mail, Scan to Folder, WSD (Push Type), or Scan to Removable device (Original size: A4
Scanning speed differs depending on the operating environment of the machine and computer, scan settings, and the content of originals.
When using the E-mail, Scan to Folder, WSD (Push Type), or Scan to Removable device (Original size: A4
Scanning speed differs depending on the operating environment of the machine and computer, scan settings, and the content of originals. |
Tone |
|
Basic scanning resolution: |
600 dpi |
Image compression type for black and white (two-value) |
MH, MR, MMR, JBIG2 |
Image compression type for gray scale/full color |
JPEG |
Interface |
Wired LAN and wireless LAN cannot be used at the same time. |
Network protocol |
TCP/IP |
|
WSD |
Supported |
|
DSM |
Supported*1 |
*1 The function can be used only in Scanner (Classic).
E-mail transmission
Item |
Specifications |
|---|---|
Scanning resolution |
100 dpi, 200 dpi, 300 dpi, 400 dpi, 600 dpi |
Protocol*1 |
POP, SMTP*2, IMAP4 |
Output format |
TIFF, JPEG, PDF, High Compression PDF, PDF/A, Searchable PDF*3*4 |
*1 Supporting Web mail transmission
*2 Supporting SMTP over SSL
*3 To perform OCR, the OCR unit is required.
*4 The number of characters that can be scanned optically is about 40,000 characters per page.
When you select [PDF], [High Comp. PDF], or [PDF/A] for the file format, you can attach a digital signature. You can also specify the security settings for [PDF] or [High Comp. PDF].
Scanning an Original as a PDF with Security Settings Specified
To specify High Compression PDF for the PDF type, the following settings are required:
Selecting Gray Scale or Full Color for [Original Type] under [Send Settings]
Selecting [100%] for [Scan Ratio] under [Send Settings]
Selecting [200 dpi], [300 dpi], [400 dpi], or [600 dpi] for [Resolution] under [Send Settings]
Selecting other than [Preview]
Specifying [PDF File Type: PDF/A Fixed] under [Settings]
[System Settings] [Settings for Administrator] [File Management] to [Off]
Scan to Folder
Item |
Specifications |
|---|---|
Scanning resolution |
100 dpi, 200 dpi, 300 dpi, 400 dpi, 600 dpi |
Protocol |
SMB, FTP |
Output format |
TIFF, JPEG, PDF, High Compression PDF, PDF/A, Searchable PDF*1*2 |
Operating system |
|
*1 To perform OCR, the OCR unit is required.
*2 The number of characters that can be scanned optically is about 40,000 characters per page.
When you select [PDF], [High Comp. PDF], or [PDF/A] for the file format, you can attach a digital signature. You can also specify the security settings for [PDF] or [High Comp. PDF].
Scanning an Original as a PDF with Security Settings Specified
To specify High Compression PDF for the PDF type, the following settings are required:
Selecting Gray Scale or Full Color for [Original Type] under [Send Settings]
Selecting [100%] for [Scan Ratio] under [Send Settings]
Selecting [200 dpi], [300 dpi], [400 dpi], or [600 dpi] for [Resolution] under [Send Settings]
Selecting other than [Preview]
Specifying [PDF File Type: PDF/A Fixed] under [Settings]
[System Settings] [Settings for Administrator] [File Management] to [Off]
Network TWAIN Scanner
Item |
Specifications |
|---|---|
Scanning resolution |
100–1,200 dpi*1 |
Protocol |
TCP/IP |
Operating system |
(TWAIN scanner runs in 32-bit compatible mode on a 64-bit operating system, so TWAIN scanner is not compatible with 64-bit applications. Use 32-bit applications. IC card Authentication System is not compatible with 64-bit operating system.) |
*1 The maximum resolution depends on the scan size.
WIA scanner
Item |
Specifications |
|---|---|
Scanning resolution (Main scanning × Sub-scanning) |
100–1,200 dpi*1 |
Protocol |
TCP/IP |
Operating system |
(WIA scanner can function under both 32- and 64-bit operating systems.) |
*1 The maximum resolution depends on the scan size.
Item |
Specifications |
|---|---|
Mode |
Batch mode, SADF mode, Mixed Sizes mode, Custom Size originals mode, Original Orientation mode, Original Thickness mode |
Original size |
A3
11 × 17 |
Original weight |
|
Number of originals to be set |
220 sheets (80 g/m2, Approx. 20 lb. Bond) |
Power requirements |
Power is supplied from the main unit. |
|
Maximum power consumption |
90 W or less |
|
Dimensions (W × D × H) |
587 × 520 × 175 mm (23.2 × 20.5 × 6.9 inches) |
|
Weight |
Approx. 15 kg (33.1 lb.) |
Item |
Specifications |
|---|---|
Mode |
Batch mode, SADF mode, Mixed Sizes mode, Custom Size originals mode, Original Orientation mode |
Original Size |
A3
11 × 17
|
Original weight |
1 Sided: 40-128 g/m2 (Approx. 11-34 lb. Bond) Two Sided: 52-128 g/m2 (Approx. 14-34 lb. Bond) |
Number of originals to be set |
100 sheets (80 g/m2, Approx. 20 lb. Bond) |
Power requirements |
Power is supplied from the main unit. |
|
Maximum power consumption |
42 W or less |
|
Dimensions (W × D × H) |
565 × 500 × 125 mm (22.3 × 19.7 × 5.0 inches) |
|
Weight |
Approx. 9 kg (19.9 lb.) |
Item |
Specifications |
|---|---|
Paper size |
A3 |
Paper weight |
52–300 g/m2 (Approx. 14 lb. Bond–110 lb. Cover) |
Paper sizes that can be shifted |
A3 |
Paper weight that can be shifted |
64-105 g/m2 (Approx. 16-28 lb. Bond) |
Stack capacity (80 g/m2, Approx. 20 lb. Bond) |
|
Staple paper size |
A3 |
Staple paper weight |
64-105 g/m2 (Approx. 16-28 lb. Bond) |
Staple capacity (80 g/m2, Approx. 20 lb. Bond) |
Without Mixed Size:
With Mixed Size:
The number of sheets that can be stapled varies depending on the paper weight setting. |
Stack capacity after stapling (80 g/m2, Approx. 20 lb. Bond) |
|
Staple position |
Top 1, Bottom 1, Left 2, Top 2 |
Power requirements |
Power is supplied from the main unit. |
Maximum power consumption |
|
Dimensions (W × D × H) |
546 × 523 × 170 mm (21.5 × 20.6 × 6.7 inches) |
Weight |
|
Item |
Specifications |
|---|---|
Paper size for the finisher upper tray |
A3 |
Paper weight for the finisher upper tray |
52-169 g/m2 (Approx. 14 lb. Bond-90 lb. Index) |
Stack capacity for the finisher upper tray (80 g/m2, Approx. 20 Bond) |
|
Paper size for the finisher shift tray |
A3 |
Paper weight for the finisher shift tray (without staple) |
52-300 g/m2 (Approx. 14 lb. Bond-110 lb. Cover) |
Paper sizes that can be shifted when delivered to the finisher shift tray |
A3 |
Paper weight that can be shifted when delivered to the finisher shift tray |
52-300 g/m2 (Approx. 14 lb. Bond-110 lb. Cover) |
Stack capacity for the finisher shift tray (80 g/m2, Approx. 20 Bond) |
|
Staple paper size |
A3 |
Staple paper weight |
|
Staple capacity (80 g/m2, Approx. 20 lb. Bond) |
Staple:
Staple-free staple:
The number of sheets that can be stapled varies depending on the paper weight setting. |
Stack capacity after stapling (80 g/m2, Approx. 20 lb. Bond) |
Staple:
Staple-free staple:
|
Staple position |
|
Power requirements |
Power is supplied from the main unit. |
Maximum power consumption |
IM C2010/C2010A/C2510/C2510A/C2519J/C3010/C3010A/C3510/C3510A/C3519J/C4510/C4510A/C5510/C5510A/C6010/GS4020c/GS4025c/GS4030c/GS4045c/GS4160c: 36 W or less IM C7010: 42 W or less |
Dimensions (W × D × H) |
(the height to reach the top board) |
Weight |
Approx. 34 kg (75.0 lb.) |
*1 You can use two sheets of paper weighing up to 216 g/m2 (Approx. 80 lb. Cover) per set as cover sheets.
In the following cases, you cannot output 12 × 18
or SRA3 paper to the Finisher SR3320 when the internal multi-fold unit is mounted to IM C2010/C2010A/C2510/C2510A/C2519J/GS4020c/GS4025c. When you select a resolution of 1200dpi
When you select paper with a thickness of [Thick Paper 1] - [Thick Paper 4]
When you use banner sheets
For IM C2010/C2010A/C2510/C2510A/C2519J/GS4020c/GS4025c, when the resolution is 1200 dpi, paper with a thickness of [Thick Paper 1] or more is delivered to internal tray 1. You cannot output the paper to the Finisher SR3320 or Booklet Finisher SR3330.
Item |
Specifications |
|---|---|
Paper size for the finisher upper tray |
A3 |
Paper weight for the finisher upper tray |
52-169 g/m2 (Approx. 14 lb. Bond-90 lb. Index) |
Stack capacity for the finisher upper tray (80 g/m2, Approx. 20 lb. Bond) |
|
Paper size for the finisher shift tray |
A3 |
Paper weight for the finisher shift tray |
52-300 g/m2 (Approx. 14 lb. Bond-110 lb. Cover) |
Paper sizes that can be shifted when delivered to the finisher shift tray |
A3 |
Paper weight that can be shifted when delivered to the finisher shift tray |
52-300 g/m2 (Approx. 14 lb. Bond-110 lb. Cover) |
Stack capacity for the finisher shift tray (80 g/m2, Approx. 20 lb. Bond) |
|
Staple paper size |
A3 |
Staple paper weight |
52-220 g/m2 (Approx. 14 lb. Bond-80 lb. Cover) You can use two sheets of paper weighing up to 216 g/m2 (Approx. 80 lb. Cover) per set as cover sheets. |
Staple capacity (80 g/m2, Approx. 20 lb. Bond) |
Without Mixed Size:
With Mixed Size:
The number of sheets that can be stapled varies depending on the paper weight setting. |
Stack capacity after stapling (80 g/m2, Approx. 20 lb. Bond) |
Without Mixed Size:
With Mixed Size:
|
Staple position |
3 positions (Top, Bottom, 2 Staples) |
Saddle stitch paper size |
A3 |
Saddle stitch paper weight |
52-105 g/m2 (Approx. 14-28 lb. Bond) You can use two sheets of paper weighing up to 105 g/m2 (Approx. 28 lb. Bond) per set as cover sheets. |
Saddle stitch capacity (80 g/m2, Approx. 20 lb. Bond) |
1 set (15 sheets) |
Stack capacity after saddle stitching (80 g/m2, Approx. 20 lb. Bond) |
(Stack capacity depends on the paper type and use conditions.) |
Saddle stitch position |
Center 2 positions |
Types of folds |
Half Fold |
Half fold paper size |
A3 |
Half fold paper weight |
52-105 g/m2 (Approx. 14-28 lb. Bond) |
Half fold paper type |
Plain 1, Plain 2, Recycled Paper, Middle Thick, Thin Paper, Color Paper |
Power requirements |
Power is supplied from the main unit. |
Maximum power consumption |
IM C2010/C2010A/C2510/C2510A/C2519J/C3010/C3010A/C3510/C3510A/C3519J/C4510/C4510A/C5510/C5510A/C6010/GS4020c/GS4025c/GS4030c/GS4045c/GS4160c: 36 W or less IM C7010: 42 W or less |
Dimensions (W × D × H) |
(the height to reach the top board) |
Weight |
Approx. 44 kg (97.1 lb.)
|
The Half Fold function can fold one sheet at a time.
In the following cases, you cannot output 12 × 18
or SRA3 paper to the Booklet Finisher SR3330 when the internal multi-fold unit is mounted to IM C2010/C2010A/C2510/C2510A/C2519J/GS4020c/GS4025c. When you select a resolution of 1200dpi
When you select paper with a thickness of [Thick Paper 1] - [Thick Paper 4]
When you use banner sheets
For IM C2010/C2010A/C2510/C2510A/C2519J/GS4020c/GS4025c, when the resolution is 1200 dpi, paper with a thickness of [Thick Paper 1] or more is delivered to internal tray 1. You cannot output the paper to the Finisher SR3320 or Booklet Finisher SR3330.
For IM C2010/C2010A/C2510/C2510A/C2519J/GS4020c/GS4025c, when the internal multi-fold unit is mounted, you cannot use banner sheets that are wider than 297 mm (11.7 inch).
For IM C7010, when the internal multi-fold unit is mounted, you cannot use banner sheets that are wider than 297 mm (11.7 inch).
Item |
Specifications |
|---|---|
Paper size for the finisher upper tray |
A3 |
Paper weight for the finisher upper tray |
52-220 g/m2 (Approx. 14 lb. Bond-80 lb. Cover) |
Stack capacity for the finisher upper tray (80 g/m2, Approx. 20 lb. Bond) |
|
Paper size for the finisher shift tray: |
A3 |
Paper weight for the finisher shift tray (without staple) |
52-300 g/m2 (Approx. 14 lb. Bond-110 lb. Cover) |
Paper sizes that can be shifted when delivered to the finisher shift tray |
A3 |
Paper weight that can be shifted when delivered to the finisher shift tray |
52-300 g/m2 (Approx. 14 lb. Bond-110 lb. Cover) |
Stack capacity for the finisher shift tray (80 g/m2, Approx. 20 lb. Bond) |
|
Staple paper size |
A3 When using staple-free staples, the following paper sizes cannot be used for double stitch: B5 JIS |
Staple paper weight |
|
Staple capacity (80 g/m2, Approx. 20 lb. Bond) |
Staple
Staple-free staple (Slant)
Staple-free staple (2 Staples)
The number of sheets that can be stapled varies depending on the paper weight setting. |
Stack capacity after stapling (80 g/m2, Approx. 20 lb. Bond) |
Staple
Staple-free staple
When performing staple-free stapling (slant) with the following machines, the maximum number of sheets that can be stapled is 10 sheets.
|
Staple position |
|
Power requirements |
Power is supplied from the main unit. |
Maximum power consumption |
64 W or less |
Dimensions (W × D × H) |
(the height to reach the top board) |
Weight |
|
Item |
Specifications |
|---|---|
Paper size for the finisher upper tray |
A3 |
Paper weight for the finisher upper tray |
52-220 g/m2 (Approx. 14 lb. Bond-80 lb. Cover) |
Stack capacity for the finisher upper tray (80 g/m2, Approx. 20 lb. Bond) |
|
Paper size for the finisher shift tray |
A3 |
Paper weight for the finisher shift tray |
52-300 g/m2 (Approx. 14 lb. Bond-110 lb. Cover) |
Paper sizes that can be shifted when delivered to the finisher shift tray |
A3 |
Paper weight that can be shifted when delivered to the finisher shift tray |
52-300 g/m2 (Approx. 14 lb. Bond-110 lb. Cover) |
Stack capacity for the finisher shift tray (80 g/m2, Approx. 20 lb. Bond) |
|
Staple paper size |
A3 When using staple-free staples, the following paper sizes cannot be used for double stitch: B5 JIS |
Staple paper weight |
|
Staple capacity (80 g/m2, Approx. 20 lb. Bond) |
Staple
Staple-free staple (Slant)
Staple-free staple (2 Staples)
The number of sheets that can be stapled varies depending on the paper weight setting. |
Stack capacity after stapling (80 g/m2, Approx. 20 lb. Bond) |
Staple
Staple-free staple
When performing staple-free stapling (slant) with the following machines, the maximum number of sheets that can be stapled is 10 sheets.
|
Staple position |
|
Saddle stitch paper size |
A3 |
Saddle stitch paper weight |
64-105 g/m2 (Approx. 17-28 lb. Bond) You can use one sheet of paper weighing up to 216 g/ m2 (Approx. 80 lb. Cover) per set as cover sheets. |
Saddle stitch capacity (80 g/m2, Approx. 20 lb. Bond) |
1 set (20 sheets) |
Stack capacity after saddle stitching (80 g/m2, Approx. 20 lb. Bond) |
(Stack capacity depends on the paper type and use conditions.) If more than 2,000 sheets of paper remain in the finisher shift tray, then saddle stitched paper cannot be ejected. |
Saddle stitch position |
Center 2 positions |
Types of folds |
Half Fold |
Half fold paper size |
A3 |
Half fold paper weight: |
|
Half fold paper type |
Plain 1, Plain 2, Recycled Paper, Middle Thick, Thick Paper 1, Thick Paper 2, Color Paper |
Power requirements |
Power is supplied from the main unit. |
Maximum power consumption |
64 W or less |
Dimensions (W × D × H) |
(the height to reach the top board) |
Weight |
|
*1 The paper sizes (custom size) that can be saddle stitched or half folded are as follows.
Length: 182.0–320.0 mm (7.2–12.6 inches)
Width: 182.0–182.5 mm (7.2–7.2 inches), 207.0–225.0 mm (8.2–8.9 inches), 279.4–304.8 mm (11.0–12.0 inches), 320.0 mm (12.6 inches)
The Multi-sheet Fold function can fold a maximum of five sheets at a time.
Item |
Specifications |
|---|---|
Paper size |
A3 |
Paper weight |
52-300 g/m2 (Approx. 14 lb. Bond-110 lb. Cover) |
Paper sizes that can be shifted |
A3 |
Paper weight that can be shifted |
64-80 g/m2 (Approx. 17-20 lb. Bond) |
Stack capacity (80 g/m2, Approx. 20 lb. Bond) |
|
Staple paper size |
A3 |
Staple paper weight |
64-80 g/m2 (Approx. 17-20 lb. Bond) |
Staple capacity (80 g/m2, Approx. 20 lb. Bond) |
5 sheets |
Stack capacity after stapling |
|
Staple position |
Slant |
Power requirements |
Power is supplied from the main unit. |
Maximum power consumption |
30 W or less |
Dimensions (W × D × H) |
435 × 515 × 150 mm (17.2 × 20.3 × 6.0 inches) |
Weight |
Approx. 10 kg (22.1 lb.) |
Item |
Specifications |
|---|---|
Paper size |
When only the internal multi-fold unit is attached
When the Finisher is attached
|
Types of folds |
Half Fold, Letter Fold-out, Letter Fold-in, Z-fold |
Fold paper size |
|
Fold paper weight: |
1 sheet: 64-105 g/m2 (Approx. 17-28 lb. Bond) 2-3 sheets: 64-80 g/m2 (Approx. 17-20 lb. Bond) |
Paper weight that can be output |
When only the internal multi-fold unit is attached
When the Finisher is attached
|
Folded paper output tray*1 |
Finisher SR3340, Booklet Finisher SR3350
Finisher SR3320, Booklet Finisher SR3330
|
Power requirements |
Power is supplied from the main unit. |
Maximum power consumption |
40 W or less |
Dimensions (W × D × H) |
|
Weight |
Approx. 16 kg (35.3 lb.) |
*1 Specify the output tray using the Machine Features Settings.
When the finisher is attached, the not-folded sheets are output to the folding tray of the attached finisher only in the following cases:
When Z-fold sheets (A3
, 11 × 17) and non-fold sheets (A4
, 81/2 × 11) are output at onceWhen Z-fold sheets (A4
) and non-fold sheets (A5
) are output at onceWhen Z-fold sheets (B4 JIS
) and non-fold sheets (B5 JIS) are output at onceWhen Z-fold sheets (8K
) and non-fold sheets (16K) are output at onceWhen envelopes are output
When banner paper is output
When only the internal multi-fold unit is mounted, you cannot use the paper whose width is wider than 297 mm (11.7 inches).
To output envelopes or banner paper to the fold tray while the Finisher SR3340 or Booklet Finisher SR3350 is mounted, contact your service representative.
Item |
Specifications |
|---|---|
Paper size |
A3 |
Paper weight |
52–300 g/m2 (Approx. 14 lb. Bond–110 lb. Cover) |
Paper capacity (80 g/m2, Approx. 20 lb. Bond) |
Internal tray 1:
External tray: 125 sheets |
Power requirements |
Power is supplied from the main unit. |
Maximum power consumption |
12 W or less |
Dimensions (W × D × H) |
800 × 549 × 156 mm (31.5 × 21.7 × 6.2 inches) |
Weight |
Approx. 4 kg (8.9 lb.) |
Item |
Specifications |
|---|---|
Paper size |
A3 |
Paper weight |
52-300 g/m2 (Approx. 14 lb. Bond-110 lb. Cover) |
Paper sizes that can be shifted |
A3 |
Paper weight that can be shifted |
60-300 g/m2 (Approx. 16 lb. Bond-110 lb. Cover) |
Stack capacity (80 g/m2, Approx. 20 lb. Bond) |
|
Power requirements |
Power is supplied from the main unit. |
Maximum power consumption |
2 W or less |
Dimensions (W × D × H) |
420 × 489 × 107 mm (16.6 × 19.3 × 4.3 inches) |
Weight |
Approx. 2 kg (4.5 lb.) |
Item |
Specifications |
|---|---|
Paper size |
A3 |
Paper weight |
52-300 g/m2 (Approx. 14 lb. Bond-110 lb. Cover) |
Stack capacity (80 g/m2, Approx. 20 lb. Bond) |
125 sheets |
Power requirements |
Power is supplied from the main unit. |
Maximum power consumption |
1 W or less |
Dimensions (W × D × H) |
444 × 450 × 150 mm (17.5 × 17.8 × 6.0 inches) |
Weight |
Approx. 2 kg (4.5 lb.) |
Item |
Specifications |
|---|---|
Stack capacity |
|
Power requirements |
Power is supplied from the main unit. |
Maximum power consumption |
12 W or less |
Dimensions (W × D × H) |
412 × 466 × 143 mm (16.3 × 18.4 × 5.7 inches) |
Weight |
Approx. 4 kg (8.9 lb.) |
Punch unit type |
Paper size |
Paper weight |
|---|---|---|
2 & 4 holes type: 2 holes |
|
60–169 g/m2 (Approx. 16 lb. Bond –90 lb. Index) |
2 & 4 holes type: 2 holes |
|
|
2 & 4 holes type: 4 holes |
|
|
2 & 4 holes type: 4 holes |
|
|
4 holes type: 4 holes |
|
|
4 holes type: 4 holes |
|
|
2 & 3 holes type: 2 holes |
|
|
2 & 3 holes type: 2 holes |
|
|
2 & 3 holes type: 3 holes |
|
|
2 & 3 holes type: 3 holes |
|
Punch unit type |
Paper size |
Paper weight |
|---|---|---|
2 & 4 holes type: 2 holes |
|
52–256 g/m2 (Approx. 14 lb. Bond–140 lb. Index) |
2 & 4 holes type: 2 holes |
|
|
2 & 4 holes type: 4 holes |
|
|
2 & 4 holes type: 4 holes |
|
|
4 holes type: 4 holes |
|
|
4 holes type: 4 holes |
|
|
2 & 3 holes type: 2 holes |
|
|
2 & 3 holes type: 2 holes |
|
|
2 & 3 holes type: 3 holes |
|
|
2 & 3 holes type: 3 holes |
|
Punch unit type |
Paper size |
Paper weight |
|---|---|---|
2 & 4 holes type: 2 holes |
|
52–256 g/m2 (Approx. 14 lb. Bond–140 lb. Index) |
2 & 4 holes type: 2 holes |
|
|
2 & 4 holes type: 4 holes |
|
|
2 & 4 holes type: 4 holes |
|
|
4 holes type: 4 holes |
|
|
4 holes type: 4 holes |
|
|
2 & 3 holes type: 2 holes |
|
|
2 & 3 holes type: 2 holes |
|
|
2 & 3 holes type: 3 holes |
|
|
2 & 3 holes type: 3 holes |
|
Item |
Specifications |
|---|---|
Page size |
|
Paper capacity |
|
Paper weight |
|
Power requirements |
Power is supplied from the main unit. |
Maximum power consumption |
19 W or less |
Dimensions (W × D × H) |
587 × 685 × 120 mm (23.2 × 27.0 × 4.8 inches) (except protruding parts) |
Weight |
Approx. 12 kg (26.5 lb.) |
Item |
Specifications |
|---|---|
Page size |
|
Paper capacity (80 g/m2, Approx. 20 lb. Bond) |
|
Paper weight |
|
Power requirements |
Power is supplied from the main unit. |
Maximum power consumption |
21 W or less |
Dimensions (W × D × H) |
|
Weight |
Approx. 23 kg (50.8 lb.) |
Item |
Specifications |
|---|---|
Page size |
|
Paper capacity (80 g/m2, Approx. 20 lb. Bond) |
|
Paper weight |
|
Power requirements |
Power is supplied from the main unit. |
Maximum power consumption |
15 W or less |
Dimensions (W × D × H) |
|
Weight |
Approx. 23 kg (50.8 lb.) |
Item |
Specifications |
|---|---|
Page size |
|
Paper capacity (80 g/m2, Approx. 20 lb. Bond) |
|
Paper weight |
|
Power requirements |
Power is supplied from the main unit. |
Maximum power consumption |
13 W or less |
Dimensions (W × D × H) |
340 × 544.5 × 290 mm (13.4 × 21.5 × 11.5 inches) (except protruding parts) |
Weight |
Approx. 11 kg (24.3 lb.) |
Item |
Specifications |
|---|---|
Dimensions (W × D × H) |
587 × 616 × 76 mm (23.1 × 24.3 × 3.0 inches) (except protruding parts) |
Weight |
Approx. 9 kg (19.9 lb.) |
Note that the available channels (frequency ranges) and locations to use the wireless LAN are subject to the regulations of the country or region where the printer is used. Be sure to use the wireless LAN according to the applicable regulations.
Item |
Specifications |
|---|---|
Transmission spec |
Based on IEEE 802.11a/b/g/n/ac (wireless LAN) |
Transmission rate |
|
Frequency range (Center Frequency) |
IEEE 802.11a
IEEE 802.11b/g
IEEE 802.11n
IEEE 802.11ac (VHT80)
|
Transmission mode |
|
Web Image Monitor is supported.
The transmission rates of 130 Mbps in the 2.4 GHz band is the theoretical values of the wireless LAN specification. The actual transmission rate may be lower, depending on the operating environment.
The channel in use might differ depending on the country.
Some frequency may not be available due to regulations in each country.
Item |
Specifications |
|---|---|
Interface |
|
Operating systems |
|
Protocol |
|
