Inserting a Chapter Page During Copy

Inserting Slip Sheets Between Pages When Copying

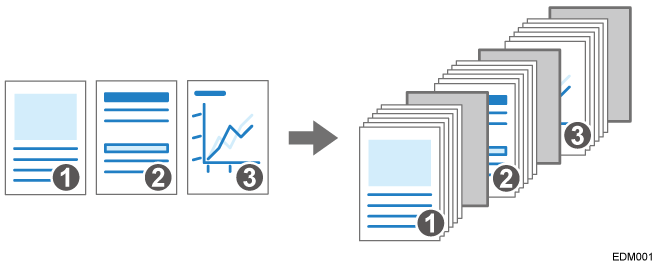

You can insert a sheet of paper at the turn of a page when copying an original comprising multiple pages at one time (Slip Sheet).

Designating Chapters

You can specify a chapter page to insert a blank sheet or specify the print side (Designate / Chapters / Chapter).

  • Designate: Copy, Designate: Do not copy
    Inserts blank sheets before specified pages. Also prints data of the specified page on the designated sheet.

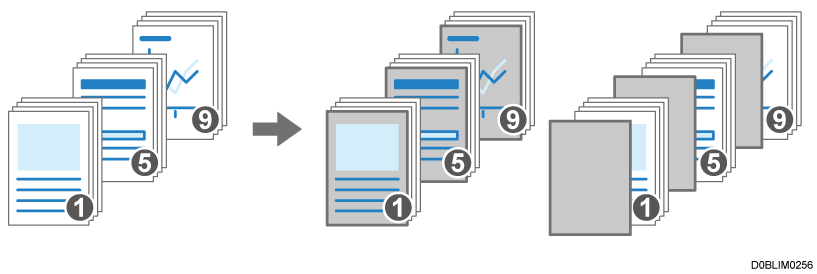

    Illustration of Designating Chapters

  • Chapter
    Prints a chapter page always on the front side during 2-sided copy.

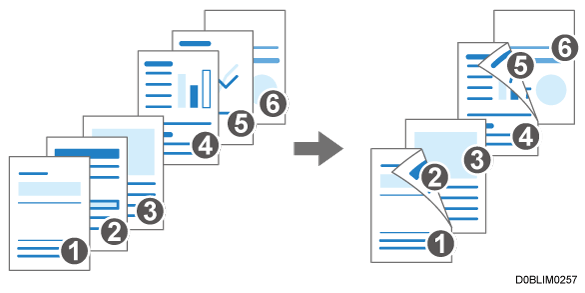

    Illustration of Chapter

Inserting Slip Sheets Between Pages When Copying

Important

  • You cannot insert slip sheets when Duplex Copy is enabled. If Duplex Copy is specified, press one of the following keys to cancel the setting.
    Operation panel screen illustration

  1. Press [Settings] on the Home screen.
    Operation panel screen illustration

  2. Press [Tray/Paper Settings].
    Operation panel screen illustration

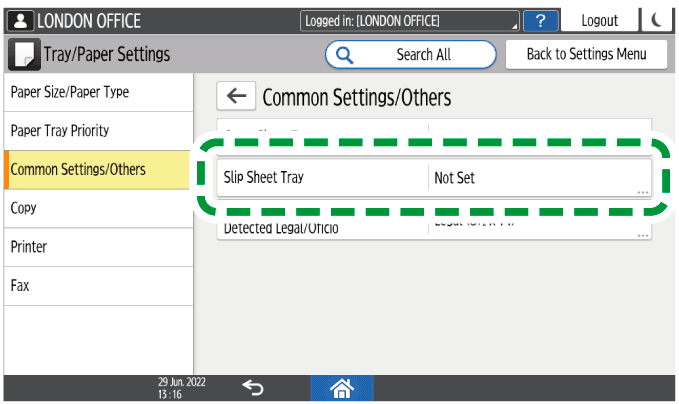

  3. Press [Common Settings/Others] [Slip Sheet Tray], and specify the tray to feed slip sheets.
    Operation panel screen illustration
    As the paper to use for slip sheets, load paper of the same size and orientation as the paper to copy.

  4. Press [OK].

  5. Press [Home] (Operation panel screen illustration) after specifying the settings.

  6. Press [Copy] on the Home screen.
    Operation panel screen illustration

  7. Press [Slip Sheet] on the Copy screen.
    Operation panel screen illustration
    If you cannot find the key, select the item from [Finishing].

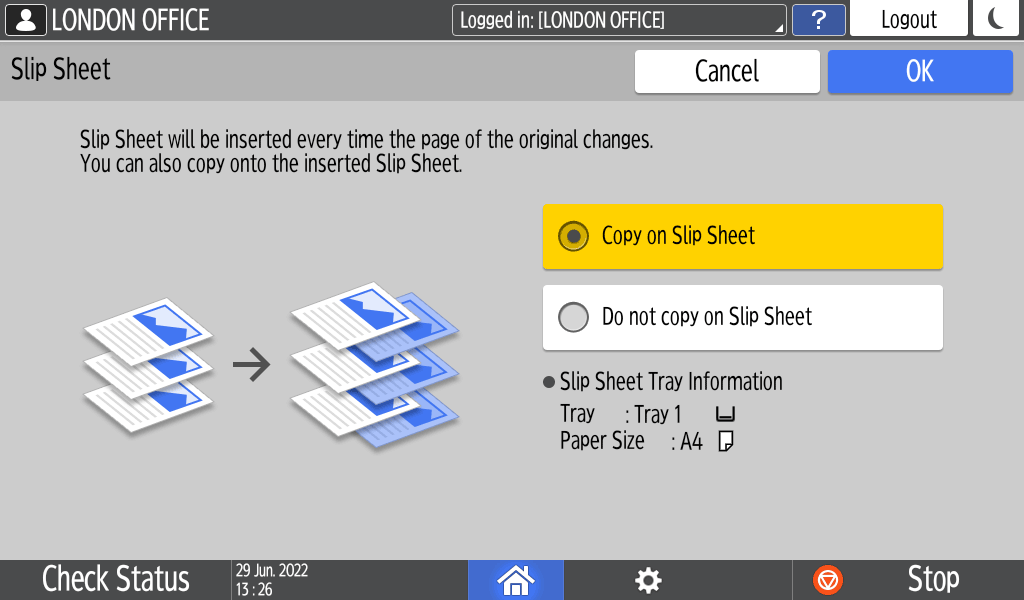

  8. Specify whether to also copy on the slip sheets, and then press [OK].
    Operation panel screen illustration

  9. Press the paper tray select key and select the paper for the text body.

  10. Place the original.
    Basic Procedure for Copying Documents

  11. Press [Start].

Note

  • Slip sheets are not counted with the number of copies made in the Copier function when you are not copying onto them.

Section Top

Designating Chapters

Specify the separation method to copy originals while separating each chapter.

  1. Press [Settings] on the Home screen.

  2. Press [Tray/Paper Settings].
    Operation panel screen illustration

  3. Press [Common Settings/Others] [Slip Sheet Tray], and specify the tray to feed designated sheets.
    Operation panel screen illustration
    You can use paper for the designation in the same size and direction as the paper for the text body.

  4. Press [OK].

  5. Press [Home] () after specifying the settings.

  6. Press [Copy] on the Home screen.
    Operation panel screen illustration

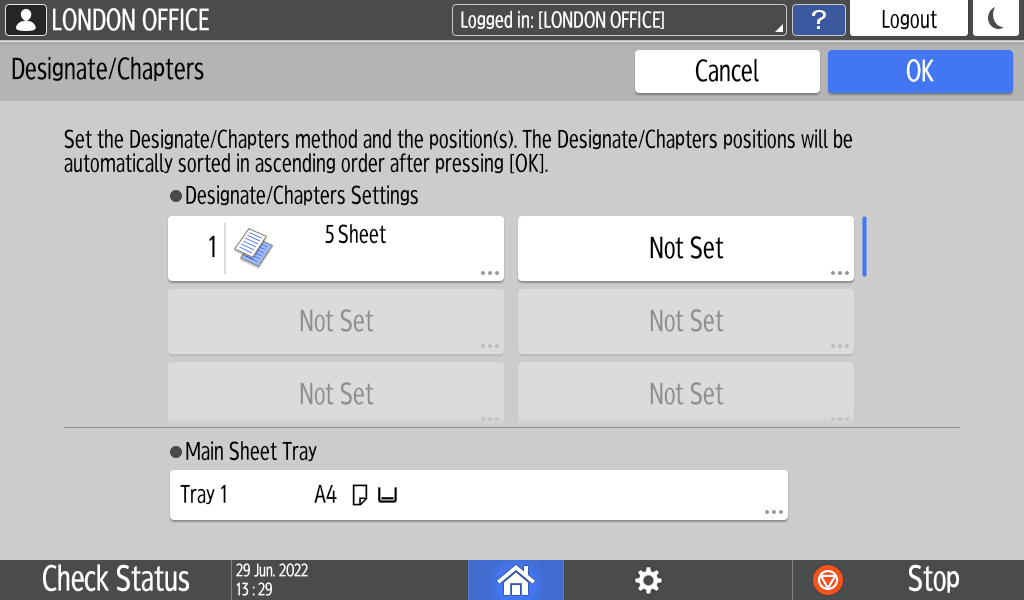

  7. Press [Designate / Chapters] on the Copy screen.
    Operation panel screen illustration
    If you cannot find the key, select the item from [Finishing].

  8. Press [Not Set].

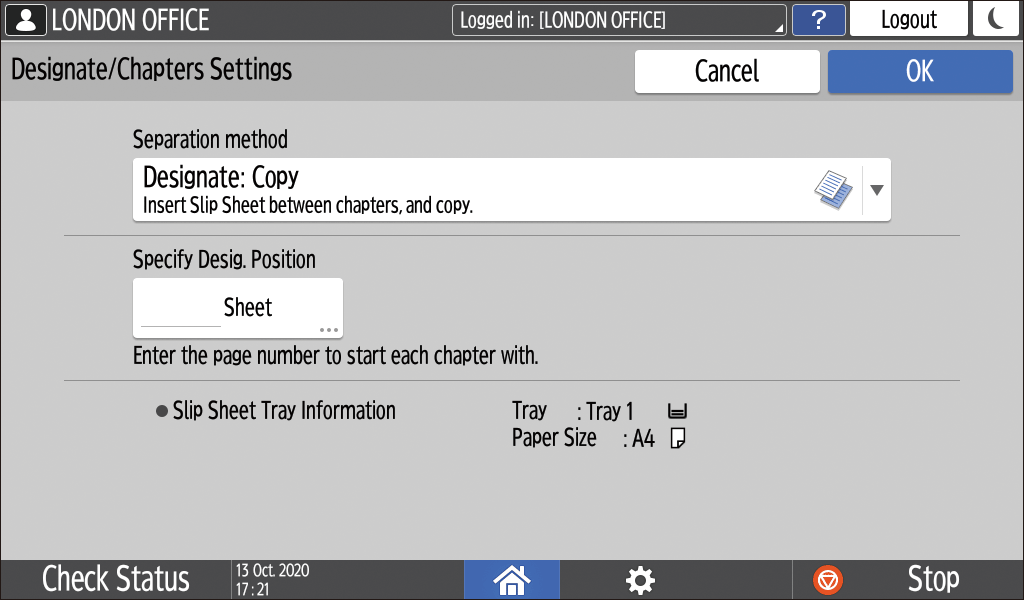

  9. Select Separation method to specify the position to separate.
    Operation panel screen illustration

    • Separation method : Select the method of chapter designation.

    • Specify Desig. Position : Enter the page number of the original at the beginning of the chapter.

  10. Press [OK].

  11. Press [Not Set] to specify the separation mode for the next section.
    You can specify separations up to 20 locations.

  12. Select the input tray to feed paper for the text body in "Main Sheet Tray".
    Operation panel screen illustration

  13. Press [OK].

  14. Place the original.
    Basic Procedure for Copying Documents

  15. Press [Start].

Note

  • When you do not copy on designated sheets, the designated sheets are not counted as the number of copies.

  • Even in 2-sided copy, the pages specified in the separation mode setting are always printed on the front side.

Section Top
