Specifying a User Code in the LAN-Fax Driver

When the fax function on the machine is restricted with User Code Authentication, specify the user code of the sender (8-digit number) for authenticating fax transmission jobs on the machine.

Once the user code has been specified, you do not need to enter it again.

1. Open a document to print on the computer, and execute printing on the LAN-Fax driver from the print menu in the application.

2. Select the destination on the [Fax Settings] screen.

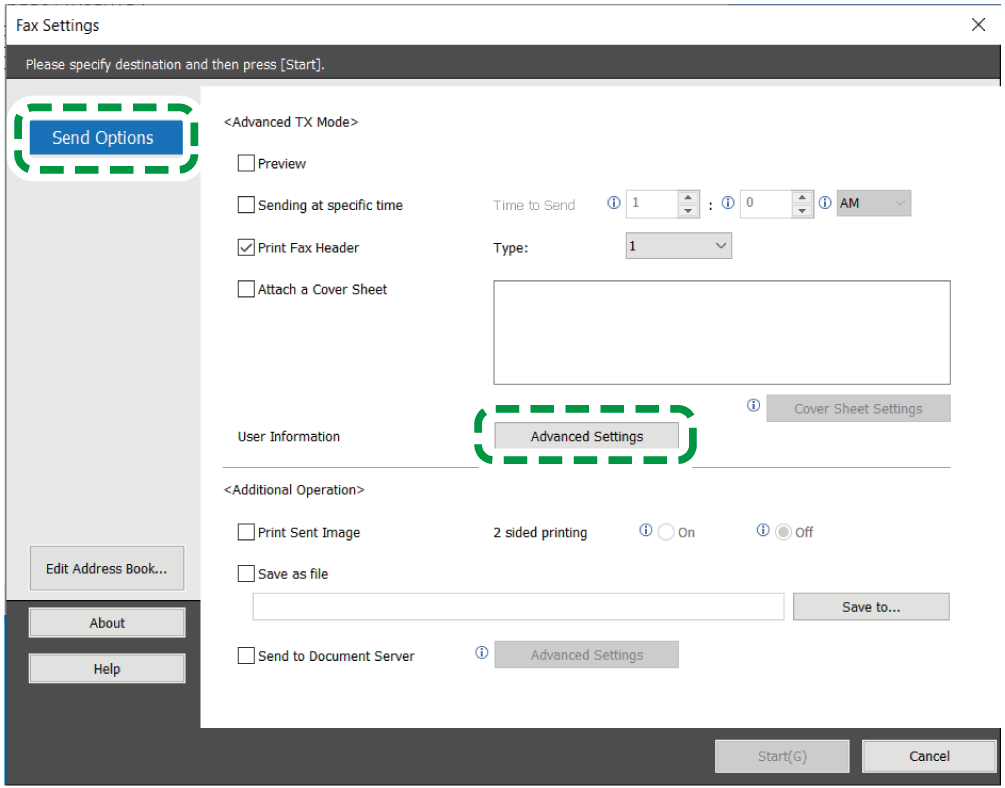

3. Click [Send Options] [Advanced Settings].



4. Enter the user code and click [OK].


5. Click [Start].
