Accessing to Web Image Monitor

  1. Enter the IP address of the machine in the address bar of the Web browser.

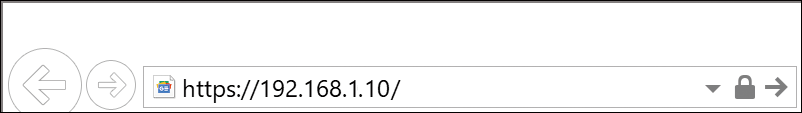

    Web browser screen illustration
    Example: when the IP address of the machine is "192.168.1.10"

    • If SSL is specified
      https://192.168.1.10/

    • If SSL is not specified
      http://192.168.1.10/

    When you do not know whether SSL is specified on the machine, enter the address starting with https. When you fail the connection, enter the address starting with http.
    When entering the IPv4 address, do not enter "0" for each segment. If "192.168.001.010" is entered, you cannot access the machine.

  2. Confirming the machine status or settings on the top page of Web Image Monitor.

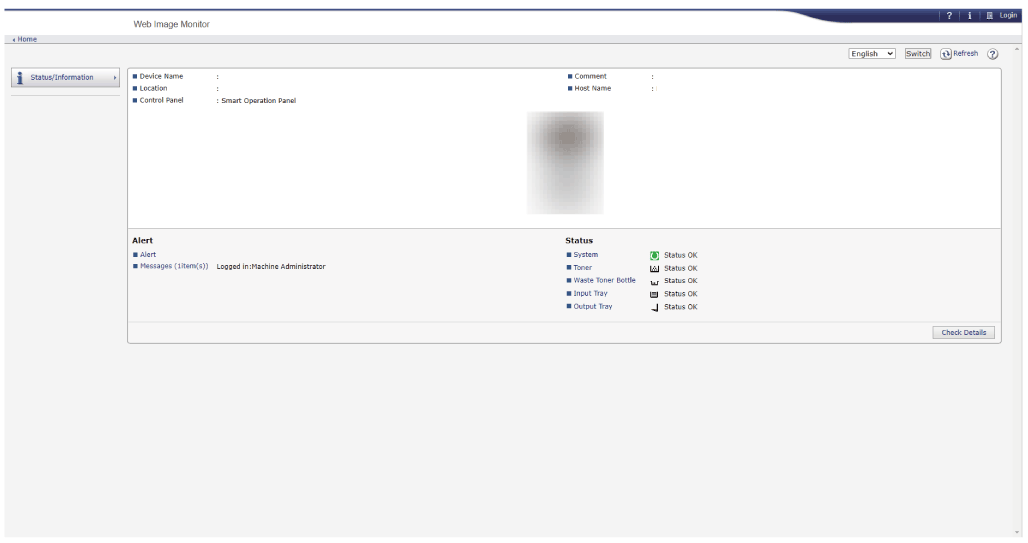

    Web browser screen illustration

    The machine status and remaining amount of consumables are displayed.
    You can access Web Image Monitor more quickly by registering the machine's URL as a bookmark. Note that the URL you register must be the URL of the top page, which is the page that appears before login. If you register the URL of a page that appears after login, Web Image Monitor will not open properly from the bookmark.
    To change the settings, click [Login] at the top right on the screen and enter the User Name and Password
