Storing Documents to Print in the Machine
You can store a document on the internal storage of the machine and print it from the control panel later.
You can print only the first set of the stored document as a test and print the rest of the sets from the control panel later.
Making a Partial Print as a Test and Printing the Rest of the Document
Select a storage type for documents to store in the machine on [Job Type:] in the printer driver.
You can select from two storage types: "Quick Print Release" and "Document Server".
Using Quick Print Release
You can view the stored document list for each user ID. You can print your document with a simple procedure.
You can use the following storage types:
Locked Print
Specify a password for the document to store. A password is required to print the document from the control panel, making this suitable for confidential documents. Locked Print jobs will be deleted after they are printed.You can also enhance security of the data by encrypting the document when storing it from a computer.
Encrypting the Document when Storing ItHold Print
Hold Print jobs will be deleted after they are printed. Hold Print is useful when combining and printing multiple documents or when holding a document temporarily in the machine to print later. You can also specify the time to print a stored document.Stored Print
Stored Print is useful when printing the same document repeatedly, as the document will not be deleted even after the printing has been completed. You can also print the document immediately and also store the document in the machine, and you can share the document with a user who has sharing privileges.You can also enhance security of the data by encrypting the document when storing it from a computer.
Encrypting the Document when Storing ItDocuments for Stored Print are automatically deleted after 72 hours (3 days). You can change the period until documents are deleted on [Auto Delete Stored Print Jobs] in [Print Jobs].
Data Management/Maintenance
Using the Document Server

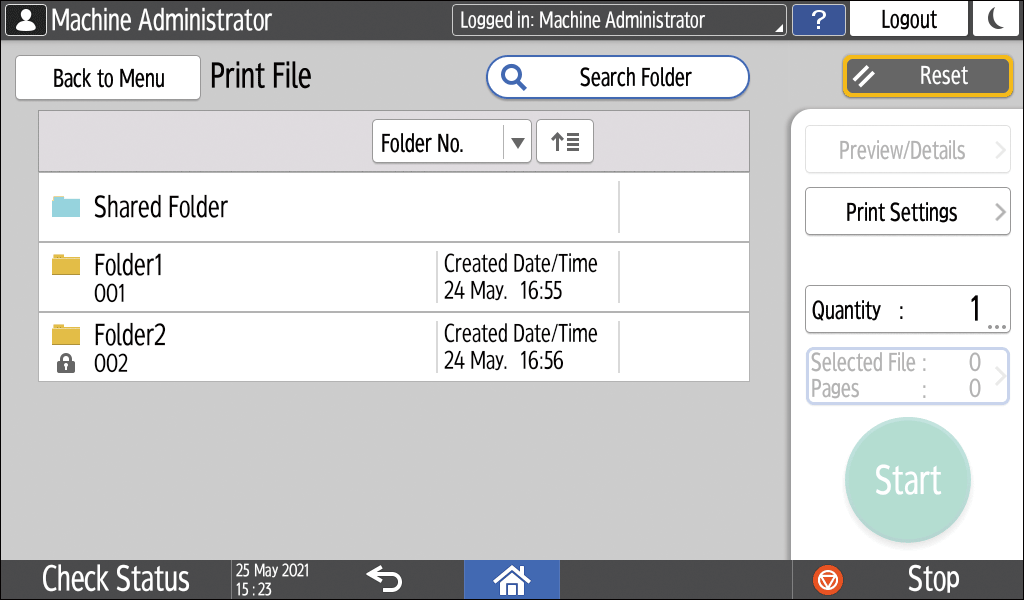

You can view the stored document list for each folder. You can organize documents using folders created to suit your needs. You can also store documents together with the data scanned by the document server function.
You can specify a password for the documents stored in the document server or share them with a user who has sharing privileges.
You can view the document in the document server using Web Image Monitor from the computer.
Accessing Documents in Document Server from a Web BrowserDocuments stored in the document server are automatically deleted after 72 hours (3 days). You can change the period until documents are deleted on [Auto Delete File in Document Server] in [System Settings].
Settings for Administrator
- Do not cancel sending of data for the Document Server in the middle of the process. The process may not be canceled properly. If you have canceled the process, delete the data on the control panel of the machine again.
Deleting Documents from Document Server
There are upper limits for the number of documents and pages that can be stored.
List of SpecificationsYou can confirm the files that have not been stored with the error logs.
List/Test Print
Specify the print mode on the [Basic] tab in the printer driver.
Open a document to print on the computer, and display the setting screen of the printer driver from the print menu in the application.
Specify Document Size, Paper Type, Orientation, and other settings.
Basic Procedure for Printing DocumentsClick [Modify] in [Job Type:] on the [Basic] tab.
In [Job Type:], select job type.
Locked Print, Hold Print, and Stored Print
User ID: The User ID is displayed on the control panel to show the owner of the document. Specify whether to enter the user ID or have the machine enter the Windows logon name as the user ID automatically.
Enter User ID: When you enter the user ID, enter up to eight single-byte alphanumeric characters.
File Name: As an option, enter the name to display on the control panel. If you do not enter File Name, a job name is assigned automatically. You can enter File Name when configuring Hold Print or Stored Print.
Password: Enter the password to print a document from the control panel. You can enter the password when configuring Locked Print or Stored Print. Always enter the password when configuring Locked Print. Enter the password optionally when configuring Stored Print.
Set Print Time: As an option, specify the time to print a document when configuring Hold Print.
Document Server
User ID: The User ID is displayed on the control panel to show the owner of the document. Specify whether to enter the user ID or have the machine enter the Windows logon name as the user ID automatically.
Enter User ID: When you enter the user ID, enter up to eight single-byte alphanumeric characters.
File Name: As an option, enter the name to display on the control panel. If you do not enter File Name, a name such as "PRINT0001" or "PRINT0002" is assigned automatically.
Password: As an option, enter the password to print a document from the control panel.
User Name: Enter the user name using up to 16 single-byte characters to identify the owner of the document.
Folder Number: Specify the folder number in the document server. When you specify 0, the document will be stored in the shared folder.
Folder Password: If a password is specified to the folder in the document server, enter the password.
Click [OK].
After completing the configuration, click [OK] to print.
When printing the document specifying [Store and Print], the document will be stored in the machine simultaneously.
To print a document stored in the machine, see the sections below:
Printing Documents Stored in the Printer from the Control PanelIf the time interval between the specified print time and the current time of the machine is a few minutes, the print job may be executed immediately.
Specify the print mode on the [Job Log] menu.
Open a document to print on the computer, and display the setting screen of the printer driver from the print menu in the application.
Specify Paper Size, Orientation, Paper Type, and other settings.
Basic Procedure for Printing DocumentsSelect [Job Log] menu.
Configure "Job Type".
Locked Print, Hold Print, and Stored Print
User ID: The User ID is displayed on the control panel to show the owner of the document. Enter the password using up to eight single-byte alphanumeric characters.
File Name: As an option, enter the name to display on the control panel. If you do not enter File Name, a job name is assigned automatically. You can enter File Name when configuring Hold Print or Stored Print.
Password: Enter the password to print a document from the control panel. You can enter the password when configuring Locked Print or Stored Print. Always enter the password when configuring Locked Print. Enter the password optionally when configuring Stored Print.
User Code: Click [Enable User Code] check box, and then enter the user code using up to eight single-byte letters.
Set Print Time: As an option, specify the time to print the document when configuring Hold Print.
Document Server
User ID: The User ID is displayed on the control panel to show the owner of the document. Enter the password using up to eight single-byte alphanumeric characters.
File Name: As an option, enter the name to display on the control panel. If you do not enter File Name, a name such as "PRINT0001" or "PRINT0002" is assigned automatically.
Password: Enter the password to print a document from the control panel.
User Code: Click [Enable User Code] check box, and then enter the user code using up to eight single-byte letters.
Folder Number: Specify the folder number in the document server. When you specify 0, the document will be stored in the shared folder.
Folder Password: If a password is specified to the folder in the document server, enter the password.
After completing the configuration, click [Print] to print.
When printing a document specifying [Store and Print], the document will be stored in the machine simultaneously.
To print a document stored in the machine, see the sections below:
Printing Documents Stored in the Printer from the Control PanelIf the time interval between the specified print time and the current time of the machine is a few minutes, the print job may be executed immediately.
You can prevent information leaks by encrypting the document in the printer drive when using Locked Print/Stored Print to print it. The algorithm used for encryption is AES-256.
To encrypt the document to store, specify encryption in the printer driver.
Display the "Devices and Printers" screen.
Windows 11
On the [Start] menu, click [All apps]
[Windows Tools] [Control Panel].Click [View devices and printers].
Windows 10 (version 1703 or later), Windows Server 2019/2022
On the [Start] menu, click [Windows System]
[Control Panel].Click [View devices and printers].
Windows 10 (before version 1703), Windows Server 2016
Right-click [Start], and then click [Control Panel].
Click [View devices and printers].
Windows 8.1, Windows Server 2012/2012 R2
On the Charm Bar, click [Settings]
[Control Panel].Click [View devices and printers].
Right-click the printer icon, and then click [Printer Properties].
Click [Advanced Options], and click [Job Type/Code Dialog Settings...].
Select [Display [Change Job Type] Dialog Before Printing], and click [OK].

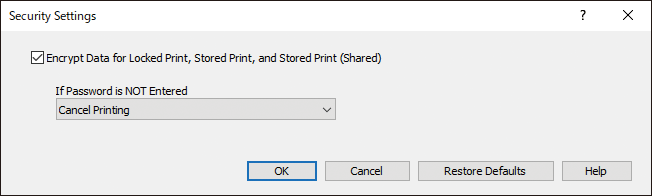

Click [Security Settings...], select the [Encrypt Data for Locked Print, Stored Print, and Stored Print (Shared)] check box.
You can also specify whether to continue or cancel printing when no password is specified.Click [OK].
After completing the configuration, close the setting screen of the printer driver.
Perform Locked Print or Stored Print.
Storing Documents from the Computer (Windows)
