Replenishing the Staples

Contact your consumable supplier and prepare new staples for replenishment when the Staples are almost out. message is displayed. Replace the staples after the message prompting replacement is displayed on the control panel.

CAUTION

  • When operating the machine, do not put your hand inside the booklet finisher tray of the finisher's staple unit. You may trap your fingers in the machine's gap and injury can result.

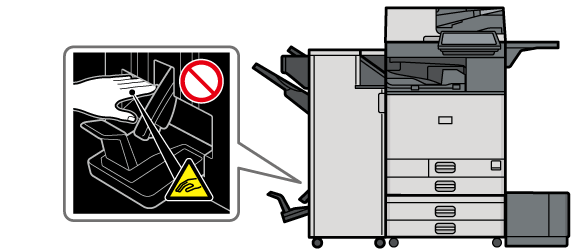

Main unit illustration

Important

  • Stapling failures or jams may occur if you use a staple cartridge other than that recommended.

Confirming the supplier of consumables

Press [Machine Information] on the [Check Status] screen to display the telephone number for ordering consumables.

Contact Information

Replenishing the staples

Replenish the staples while watching the video displayed on the screen for the procedure.

  1. Press [Watch Video].
    Operation panel screen illustration
    Press [Check Status] and then press [Check] under [Machine Status] tab.

  2. Press the play (Operation panel screen illustration) key.

  3. Replenish the staples while watching the video.

Note

  • If you cannot raise the upper unit by holding on both ends of the cartridge, there are staples still remaining inside. Continue using the machine without replenishing the staples.
