Duplex Copying

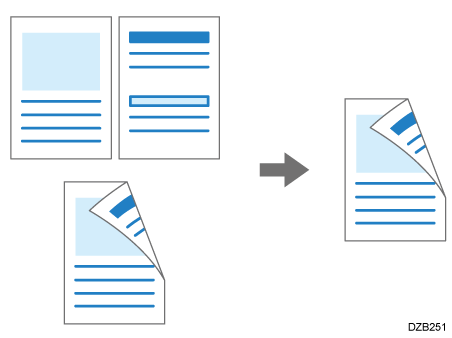

You can copy two 1-sided pages or one 2-sided page onto the front and back sides of a single sheet of paper.

When you scan the original with the ADF, the size of the original that can be copied differs from that of the 1-sided copy.

Recommended Original Size and Weight

For details about the sizes, orientations, and weights of paper that can be used in the duplex function, see the following section:

Specifications for the Main Unit

Specifications for One-pass Duplex Scanning ADF

Specifications for Auto Reverse Document Feeder (ARDF)

1. Press [Copy] on the Home screen.


2. Press [1 sided→2 sided] or [2 sided→2 sided] on the Copy screen.



   Duplex Copying with the Settings Other Than Those Displayed on the Keys

   1. Press [2 Sided/Combine].

   2. Press [2 Sided/Combine].

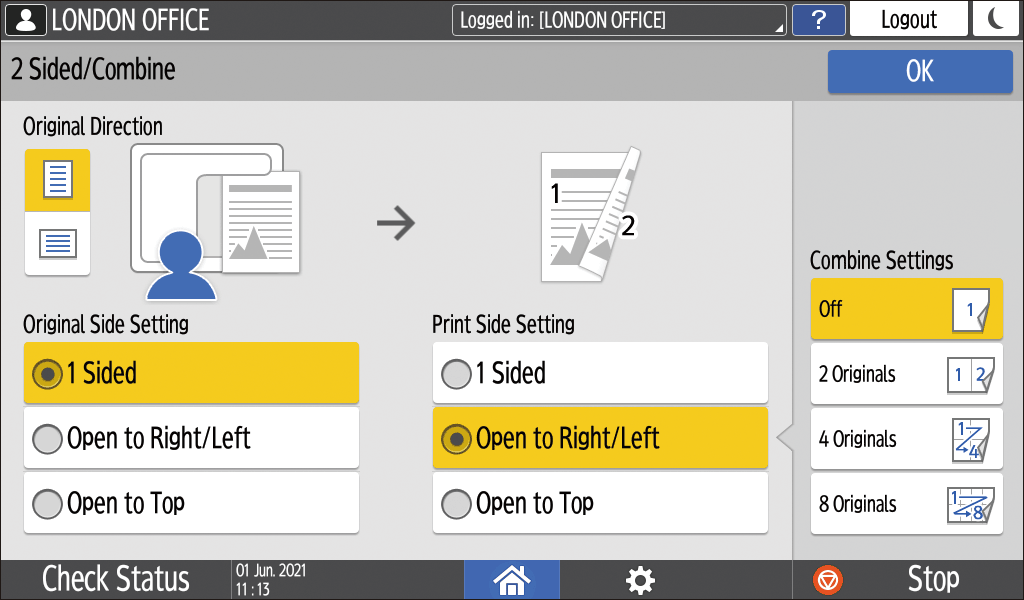

   3. Specify the original side and print side settings.



      • Original Direction: Specify the orientation to place the originals.

      • Original Side Setting: Specify the condition of the originals to copy (1 sided/2 sided (Page Opening Direction)).

      • Print Side Setting: Select the finish from [Open to Right/Left] or [Open to Top].

   4. Press [OK].

3. Place the original.
   Basic Procedure for Copying Documents

4. Press [Start].
   When placing the originals on the exposure glass, press [Finish Scn] after scanning all of the originals if necessary according to the setting contents and number of originals.
