Scan (Copier / Document Server Settings)

Original Type Priority

You can specify the default setting of [Original Type] when the machine is turned on or [Reset] is pressed.

• Default


  • Original Type Priority: Full Color / Two-color: [Text / Photo]

  • Original Type Priority: Black & White / Single Color: [Text / Photo]

Original Photo Type Priority

You can specify the default setting of the photo type when [Original Type] is set to [Text/Photo] or [Photo] on the Copy screen.

• Default


  • Original Photo Type Priority (Text / Photo): [Printed Photo]

  • Original Photo Type Priority (Photo): [Printed Photo]

Original Type Display

(This setting item is valid only when [Copier (Classic)] is used.)

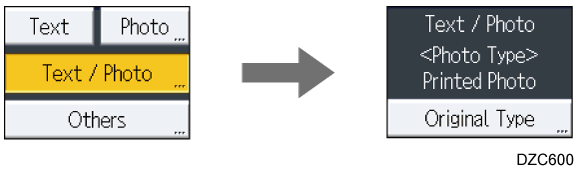

You can specify whether to display or hide the Original Type keys on the Copy screen. The display shown below is an example when the setting is changed from [Display] to [Hide].

• Default: [Display]

Switch to Batch

You can select to have [Batch] mode or [SADF] mode displayed when you press [Copy] on the Home screen.

• Default: [Batch]

Copying an Original by Placing Page by Page

SADF Auto Reset

When [SADF] is selected for [Switch to Batch], you can specify the time to place an original in the ADF after the previous original has been fed. When the specified time has passed, the original will not be fed automatically.

• Default: [5] second(s)

Copying an Original by Placing Page by Page

Display Guidance for Mixed Sizes Mode

(This setting item appears only when the one-pass duplex scanning ADF is installed, and valid only when [Copier (Classic)] is used.)

Specify whether to display a guidance screen when [Mixed Sizes] on the Copy screen is pressed.

• Default: [On]

Auto Image Density Priority

You can select whether Auto Density is "On" or "Off" when the machine is turned on or [Reset] is pressed.

• Default


  • Auto Density Priority (Full Color: Photo): [Off]

  • Auto Density Priority (Full Color: Non-photo): [Off]

  • Auto Density Priority (Black & White: Photo): [Off]

  • Auto Density Priority (Black & White: Non-photo): [On]

Background Density of ADS (Full Color / Two-color)

You can adjust the background density in five levels to wash out the background texture when copying.

Auto Density adjustment is applied when copied in [Full Color].

• Default: (Middle of five adjustment levels)

Color Sensitivity

You can adjust the level to identify the color range of the specified color in five levels. When the color range of red has been set to [Wider], all the colors that are close to magenta and orange are identified as red.

This setting is applied to identify red for copying in the color specified in [Erase Color].

• Default: (Middle of five adjustment levels)

Copying after Erasing a Specified Color

Copying an Original While Replacing a Specified Color with Another

Auto Color Select Sensitivity

This five-step setting determines the level of the standard used for discriminating between black and white originals and full color originals when [Auto Color Select] is selected.

The closer to [Black & White] the level is, the easier the machine can identify originals as black and white; the closer to [Full Color] the level is, the easier the machine can identify originals as color.

• Default: (Middle of five adjustment levels)

Auto Color Select Priority

This setting determines the copy priority between Black & White and Full Color when [Auto Color Select] is selected.

• Default: [Full Color]
