Checking the Indicators, Icons, and Messages on the Control Panel
The machine notifies you of the machine condition or status of an application with the [Check Status] indicator or a message displayed on the control panel. Check the status and resolve the problem accordingly.

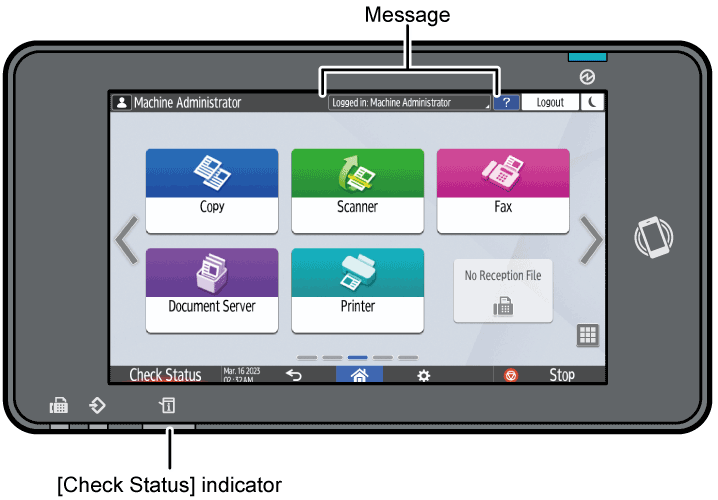

Message
Displays a message indicating the status of the machine or application. Press the message to display it in full text. You can also view more than one message as a list.For the displayed messages and their solutions, see the following sections.
When a Message Appears While Using the Printer FunctionWhen a Message Appears While Using the Copy Function
When a Message Appears While Using Document Server
[Check Status] indicator
If there is a problem such as a paper jam, the [Check Status] indicator lights up or flashes along with a message displayed on the screen. Press [Check Status] to check the status of the machine or application, and resolve the problem accordingly.
When you need to resolve a problem such as a paper jam, an icon is displayed at the beginning of a message. See the table below for the meaning of each icon.
Icon |
Condition |
Solution and reference |
|---|---|---|
|
|
Maintenance or repair is required. |
Prepare for maintenance or consider repairing the machine. |
|
|
Toner is almost depleted, or has run out. |
Prepare a replacement toner. Replace the toner when it runs out.
|
|
|
The waste toner bottle is full, or almost full. |
Prepare a replacement waste toner bottle. Replace the bottle when it becomes full. |
|
|
A cover is open. |
Check that all covers of the machine and external devices are closed. |
The [Check Status] indicator notifies the user when the machine requires immediate attention.
Flashing in red
When [Check Status] indicator is flashing in red and fax indicator and Data in indicator are flashing in blue, contact your service representative.
Lit in red
The machine is unavailable for use. Press [Check Status] and resolve the problem as soon as possible.
Flashing in yellow
Maintenance on the machine needs to be performed soon. Perform the required procedure accordingly.
Follow the steps below to check the machine and the application’s status, and solve the problem as needed.

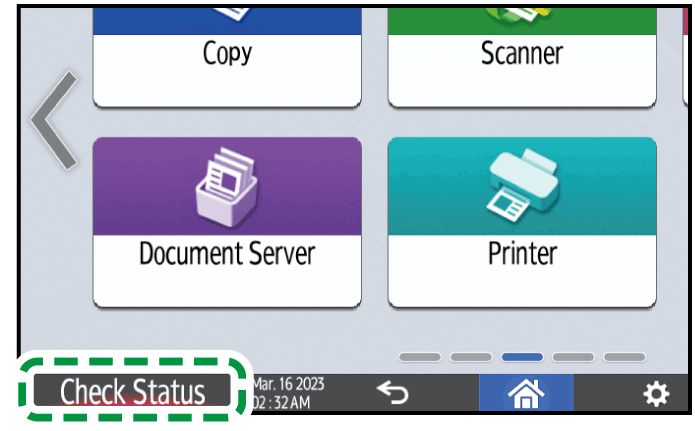

Press [Check Status].

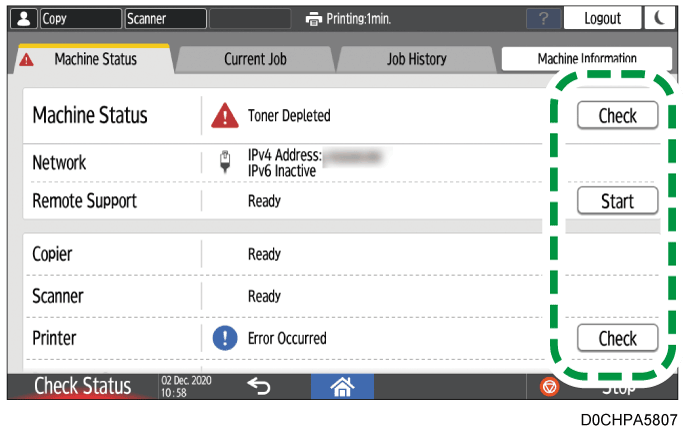

Press [Check] to check the details, and perform the required procedure.
When an Icon is Displayed with a Message
: The machine cannot be used.
: Some of the functions cannot be used, or the toner is almost depleted.
Depending on the machine condition, such as a paper jam or open cover, the status confirmation screen may be displayed automatically without pressing [Check Status].
