Sorting Printed Sheets by Individual Copies

While printing a document with multiple pages to make multiple printed sets, the machine assembles the printed sheets as sets in sequential order (Collate).

You can select the following Collate types:

Type	Result

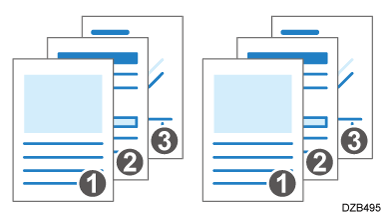

Collate

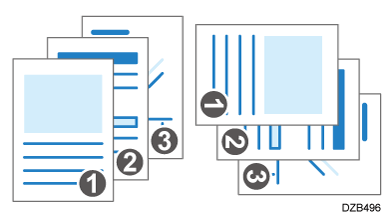

Rotating Collate^*1
Shift Collate^*2

^*1 Load papers of the same size in different orientations into two paper trays in advance.

^*2 The paper size and paper weight supported by Shift Collate differ depending on the output tray or finisher attached to the machine.

Recommended Paper Sizes and Types

Important

An optional unit such as the shift tray or finisher is required to use this function.
Functions Requiring Optional Configurations

Specifying Collate (Windows)

Configure the settings on the [Finishing] tab.

Open a document to print on the computer, and display the setting screen of the printer driver from the print menu in the application.
Specify Document Size, Paper Type, Orientation and other settings.
Basic Procedure for Printing Documents
On the [Finishing] tab, specify the Collate method.
Configure the following setting:
- Collate: Select [Printer Collate] in normal use to adopt the Collate setting of the printer driver. To use the Collate setting specified in the print dialog box of the application, select [Same as Application].
Click the detail settings button to select the collate type.
After completing the configuration, click [OK] to print.

Section Top

Specifying Collate (macOS)

Configure the settings in the [Paper Handling] menu.

Open a document to print on the computer, and display the setting screen of the printer driver from the print menu in the application.
Specify Paper Size, Orientation, Paper Type, and other settings.
Basic Procedure for Printing Documents
On the [Paper Handling] menu, select [Collate pages].
Cancel the collate setting in the application.
After completing the configuration, click [Print] to print.
