Guide to Names and Functions of Components

CAUTION

  • Do not obstruct the machine's vents. Doing so can result in fire as the internal components are overheated.

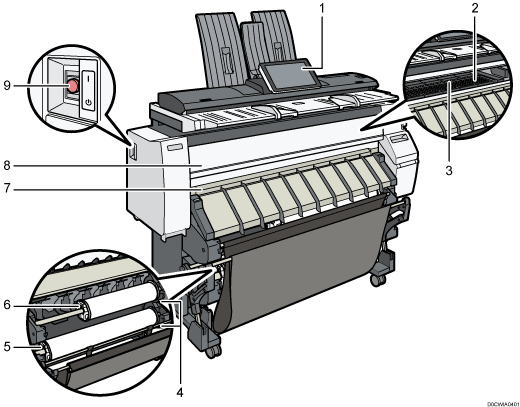

Front and Left View

Main unit illustration numbered callout illustration

  1. Control panel

    Names and Functions of the Control Panel

  2. Platen

    Paper is sucked down and prevented from floating. Clean this area if the back of the printouts becomes dirty.

    Cleaning the Platen

  3. Paper bypass location

    Load paper here when you copy or print from the paper bypass location. Load paper print side up.

  4. Rewind button

    Press this button to load the paper roll or to remove misfed paper.

  5. Paper Input Location 2

    Load a paper roll here.

  6. Paper Input Location 1

    Load a paper roll here.

  7. Paper output location

    The printouts are delivered here.

  8. Front cover

    This is the cover of the paper bypass location. Open this cover to copy or print from the paper bypass location, to remove misfed paper, or to clean the platen.

  9. Main power switch

    To operate the machine, the main power switch must be on. If it is off, turn the switch on.

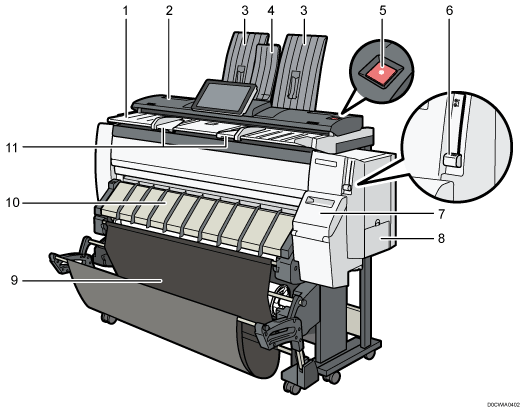

Front and Right View

Main unit illustration numbered callout illustration

  1. Original table

    Place originals here scanning side down.

  2. Original cover

    Open to clear jammed originals.

  3. Original stacker

    Originals are stacked here.

  4. Stacker support

    Use to output originals to the front side.

  5. [Scanner Stop] key

    Use if originals are feeding in slanted, or to cancel scanning while an original is feeding in.

  6. Paper holding lever

    This lever holds paper that is inserted into the paper input location or the paper bypass location. Use this lever to copy or print from the bypass location, or to remove misfed paper.

  7. Cartridge cover

    Open to replace print cartridges.

  8. Ink collector unit cover

    Open this cover to replace the ink collector unit. Ink used for maintenance collects in the ink collector unit.

  9. Output basket

    The delivered paper is stacked here.

  10. Paper input location cover

    Open to load the paper roll onto the paper input location or to remove misfed paper.

  11. Original guide

    Set to the width of your originals.

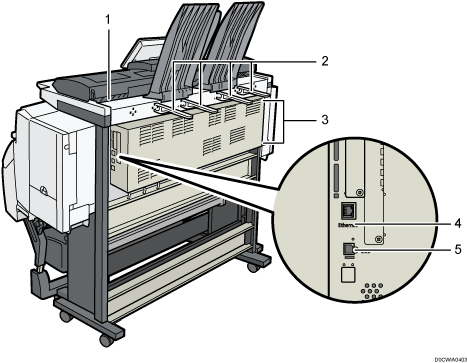

Rear View

Main unit illustration numbered callout illustration

  1. Original exit

    Originals are delivered here.

  2. Original output guide

    Stacks originals delivered to the rear output.

  3. Vents

    Prevent overheating. After large-volume printing, the ventilation fan may continue to work to lower the temperature inside the machine.

  4. Ethernet interface

    Used the port to connect the machine to the network or to use the remote management service (@Remote) over the Internet.

  5. USB2.0 Interface Type B

    Use the port to connect the machine and the computer with the USB cable.

Note
