Machine Options
For details about the names and the abbreviated names of the options described in this manual, see the following.
Abbreviated Names of Options

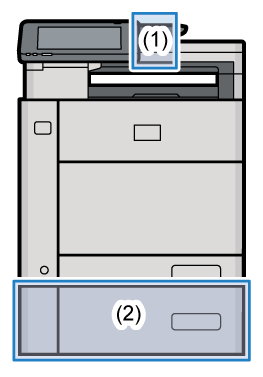

Options that can be attached to the machine differ depending on the machine type.
(1) Options Mounted on the Machine’s Side Panel
No.
Option
Description
1
NFC card reader
Pass an IC card over the card reader to log in to the machine.

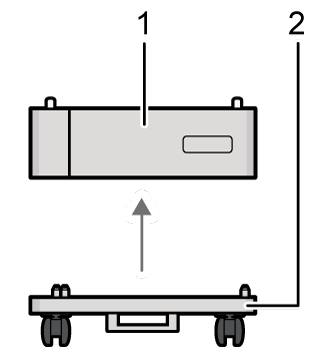

(2) Options Mounted on the Machine’s Bottom
No.
Option
Description
1
Lower Paper Tray
Paper is loaded here. You can load up to 500 sheets of paper.
2
Caster Table (
(mainly Asia)/
(Taiwan))
You can attach it to the main unit or the lower paper tray. Allows you to move the machine easily.
Fax Memory Unit
Provides 60 MB of additional memory for the facsimile function. (Standard 4 MB)
This enables you to increase the number of sheets of originals that can be stored in memory.
PostScript 3 unit
Allows you to output using Genuine Adobe PostScript 3.
OCR unit
Recognizes the scanned originals optically, and creates a PDF with the text data embedded.
Wireless LAN board
Allows you to communicate over wireless LAN.
Wired LAN and wireless LAN cannot be used at the same time.
- SSD Option
Allows you to add 256 GB of internal storage. Allows you to download documents that are stored in the Document Server to the computer.
