Machine Options

Note

For details about the names and the abbreviated names of the options described in this manual, see the following.
Abbreviated Names of Options

Guide to Functions of the Machine’s External Options

Options that can be attached to the machine differ depending on the machine type.

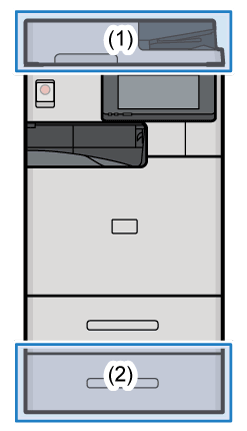

Machine illustration

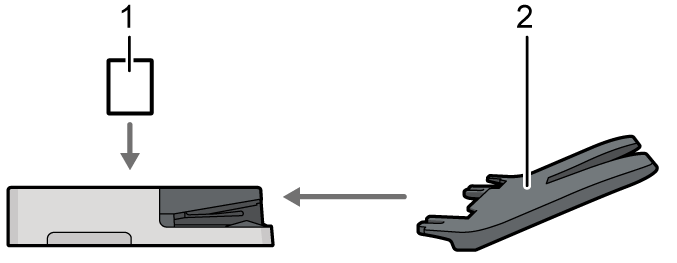

(1) Options Mounted to the Scanner Unit

No.

Option^*1

Description

1

Page keeper^*2

Detects a double feeding of the original when it is placed in the ADF.

2

Document feeder paper guide tray

Paper of A4 size or larger can be fed.

*1 Depending on the machine type, ADF is attached as standard.

*2 This cannot be mounted on some types of machines.

No.	Option^*1	Description
1	Page keeper^*2	Detects a double feeding of the original when it is placed in the ADF.
2	Document feeder paper guide tray	Paper of A4 size or larger can be fed.

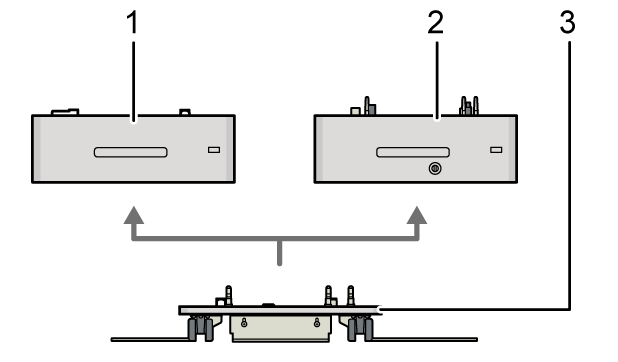

(2) Options Mounted on the Machine’s Bottom

No.

Option

Description

1

Lower Paper Tray

Paper is loaded here. You can load up to 500 sheets of paper.

2

Lower Paper Tray (secure tray) ((mainly North America))

Paper is loaded here. You can load up to 500 sheets of paper. The tray can be locked.

3

Caster Table

You can attach it to the main unit or the lower paper tray. Allows you to move the machine easily.

No.	Option	Description
1	Lower Paper Tray	Paper is loaded here. You can load up to 500 sheets of paper.
2	Lower Paper Tray (secure tray) ((mainly North America))	Paper is loaded here. You can load up to 500 sheets of paper. The tray can be locked.
3	Caster Table	You can attach it to the main unit or the lower paper tray. Allows you to move the machine easily.

Section Top

Guide to Functions of the Machine’s Internal Options

Fax Memory Unit^*1
Provides 60 MB of additional memory for the facsimile function. (Standard 4 MB)
This enables you to increase the number of sheets of originals that can be stored in memory.

PostScript 3 unit
Allows you to output using Genuine Adobe PostScript 3.
OCR unit
Recognizes the scanned originals optically, and creates a PDF with the text data embedded.

IPDS unit
Allows you to print using Intelligent Printer Data Stream (IPDS).

XPS direct print card
Allows you to directly output XPS files.

Device server option
Allows you to add an Ethernet port to the printer. Allows you to print using the printer function via a network other than that connected to the machine.

Wireless LAN board
Allows you to communicate over wireless LAN.

SSD Option
Allows you to add 256 GB of internal storage. Allows you to download documents that are stored in the Document Server to the computer.
HDD Option
Allows you to add 320 GB of internal storage. Allows you to download documents that are stored in the Document Server to the computer.
Fax connection unit^*1
Allows you to send and receive faxes via a different machine.
NFC card reader
Pass an IC card over the card reader to log in to the machine.
Logging In from the Control Panel

Region A icon (mainly Europe)

*1 IM 370F/460F only
