Viewing the History of Sent and Received Faxes

Records are printed automatically for every 50 transmissions and receptions performed. When you want to check the report immediately, print the report manually.

Communication log is deleted after printing.

1. Press [Fax] on the Home screen.


2. Press [Job Status/Stop] on the fax screen.



3. Press [Print Records], and then select the printing method.



   • Print Latest Communication Results
     Select this to print the communication results that are not yet printed among the latest 50 results. To check the transmission and reception history prior to the latest 50 results, check the Records that have been printed automatically or use [Print per File Number], [Print per User], or [Specified Print Period].

   • Print per File Number
     Select this to print the communication result of the specified document number. Enter the four digit document number and press [Print].

   • Print per User
     Select this to print the communication results per sender. Specify the sender to print the communication results, and press [Print]. Prints the transmission and reception results for the specified user from among 1,000 of the latest results.

   • Specified Print Period
     Select this to print the result of communication performed in the specified period. Specify the period by entering the start and end dates or selecting from the calendar displayed on the screen, and press [Print]. Prints up to 1,000 transmission and reception results for the specified period from among the total number of results.

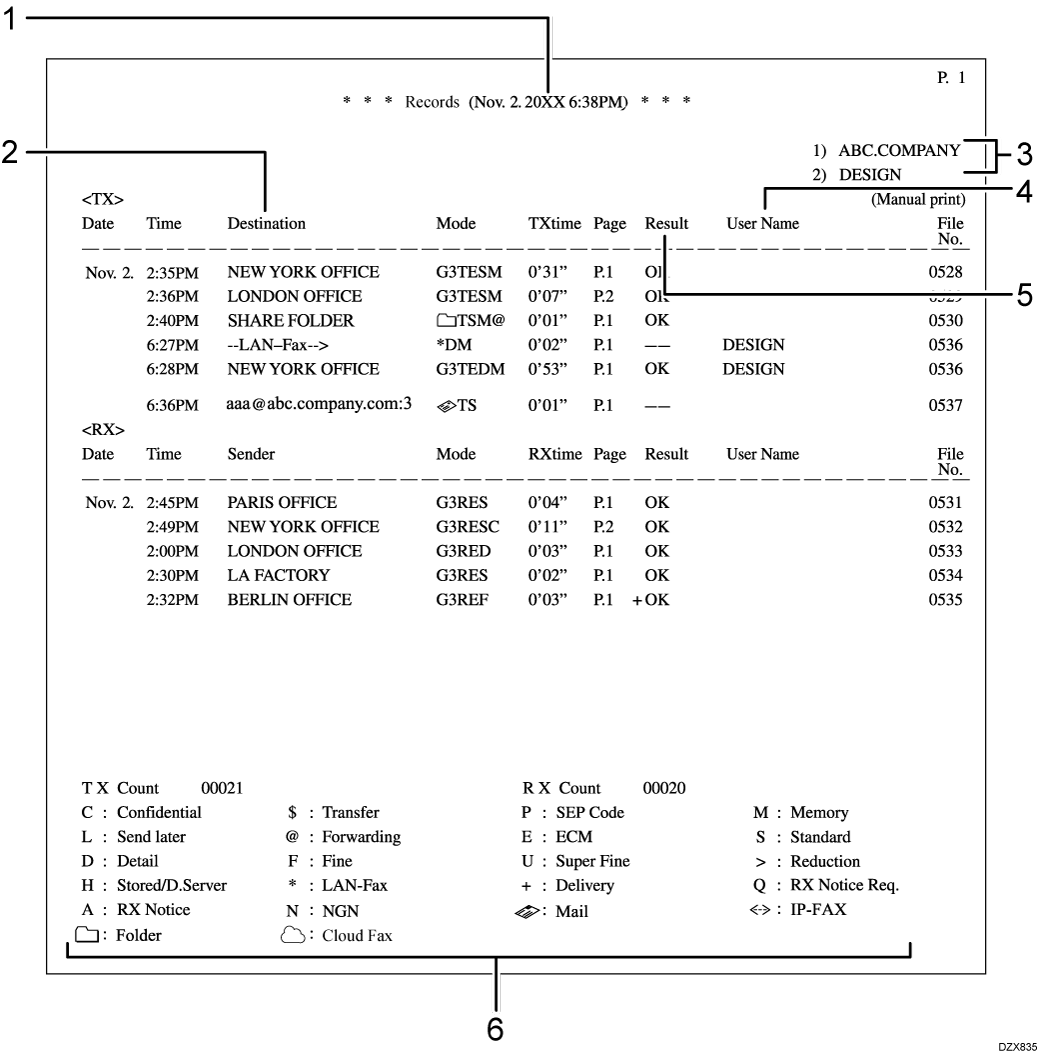

1. Printing date and time
   Shows the date and time the report is printed.

2. Other end


   • When sending a fax
     Shows the fax number entered manually or the name registered in the address book.

   • When receiving a fax
     Shows the sender name (for display) or sender fax number registered in the device at the sender.

   • When sending or receiving an IP-Fax
     Shows the IP-Fax destination entered manually or the name registered in the address book when sending an IP-Fax. Shows the item in the same way as the fax destination when receiving an IP-Fax.

   • When sending an e-mail or Internet Fax
     Shows the e-mail address entered manually or the name registered in the address book.
     Shows the destination e-mail address or destination name followed by the number of destinations specified for the broadcast transmission for broadcast transmission.
     "--LAN-Fax -->" indicates the result of transmission from a computer to the machine. For the result of transmission to the destination, refer to the "Result" column of the same document number.

   • When receiving an e-mail or Internet Fax
     Shows the e-mail address (Internet Fax destination) of the sender.

   • When sending to a folder
     Shows the name registered in the address book.

3. Programmed fax header
   Shows the information registered in [Own Name].

4. User Name
   Shows the login user name or the sender name specified at the time of transmission.

5. Result
   Shows the transmission result.


   • "OK" is shown when all pages of a fax have been received or transmitted correctly. When specifying [Reception Notice] while sending the Internet Fax, this indicates that the machine has received the reception confirmation e-mail. "+" is shown when distribution of the received document has been completed correctly.

   • "Error" is shown when:


     • The transmission or reception cannot be completed properly.

     • A file in a format that cannot be printed on the machine is received.

     • The JPEG/PDF file attached to an e-mail cannot be printed because of an authentication error or data error.

   • "--" is shown when the Internet Fax or e-mail delivered to the mail server registered on the machine. In case of a LAN-Fax, this indicates that the data sent from a computer was received by the machine. It does not indicate whether the message was received at the destination.

   • "Power Failure" is shown when the power of the machine was lost while transmission or reception was in progress. There may be a document left that could not be sent.

6. Explanatory notes of the letters and symbols shown in the Communication Mode column
   Shows the meaning of letters and symbols shown in the "Communication Mode" column.
