Installation Requirements After Moving the Machine

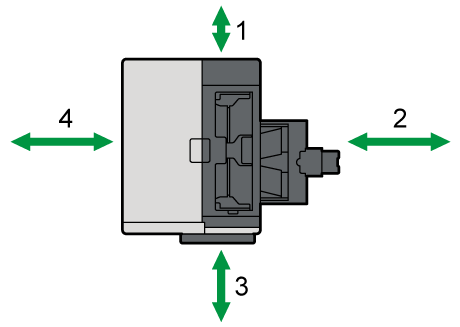

Leave adequate space around the machine to operate and clean the machine, load paper, and for service engineers to perform tasks.

  1. Rear: 5 cm (2.0 inches) or more
  2. Right: 10 cm (4.0 inches) or more
  3. Front: 75 cm (29.6 inches) or more
  4. Left: 10 cm (4.0 inches) or more

Note

  • For the required space around the machine when any option is attached, consult a service engineer.
